Bosch Performance Line CX Performance Line CX
Description
Description

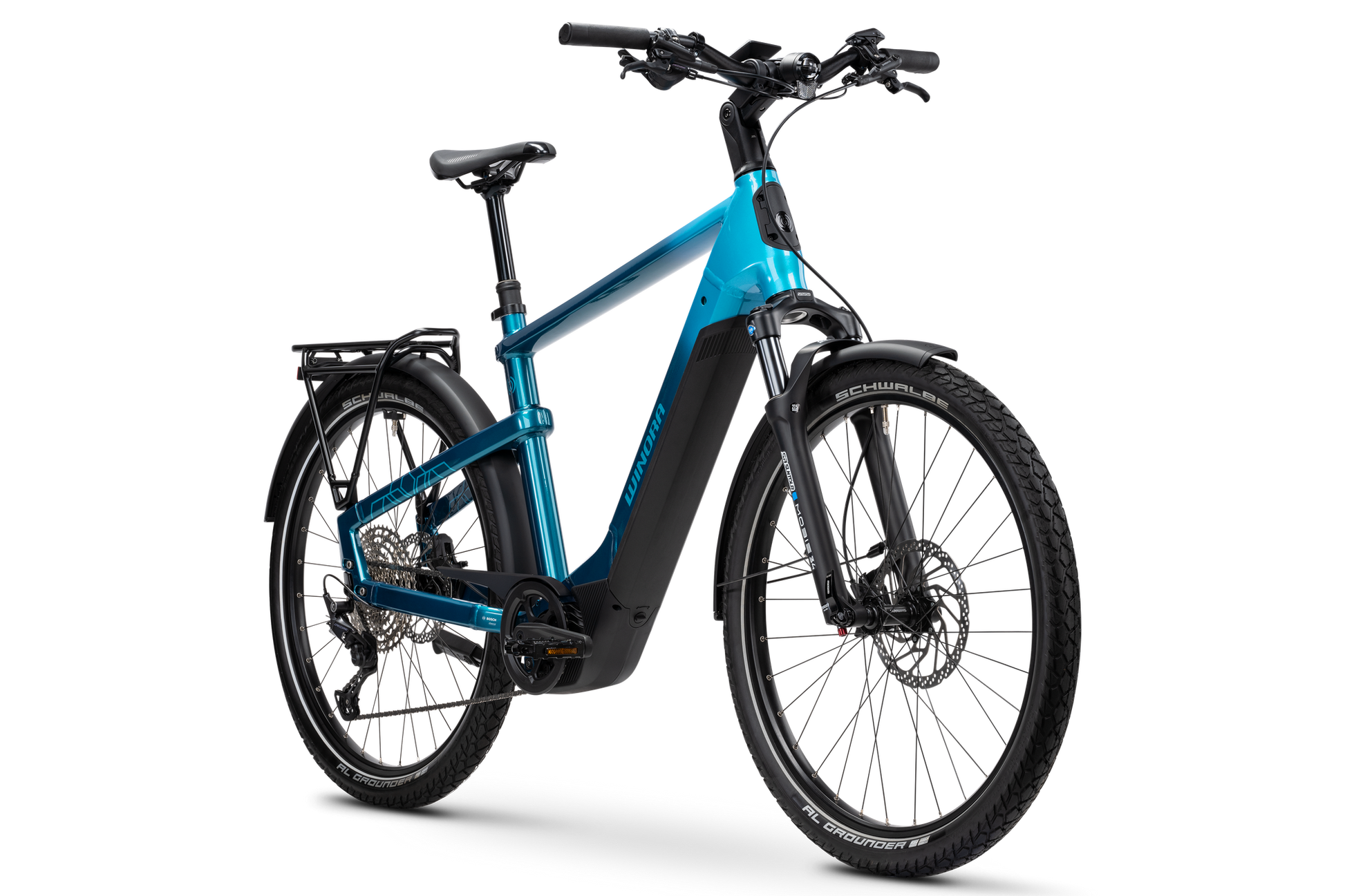

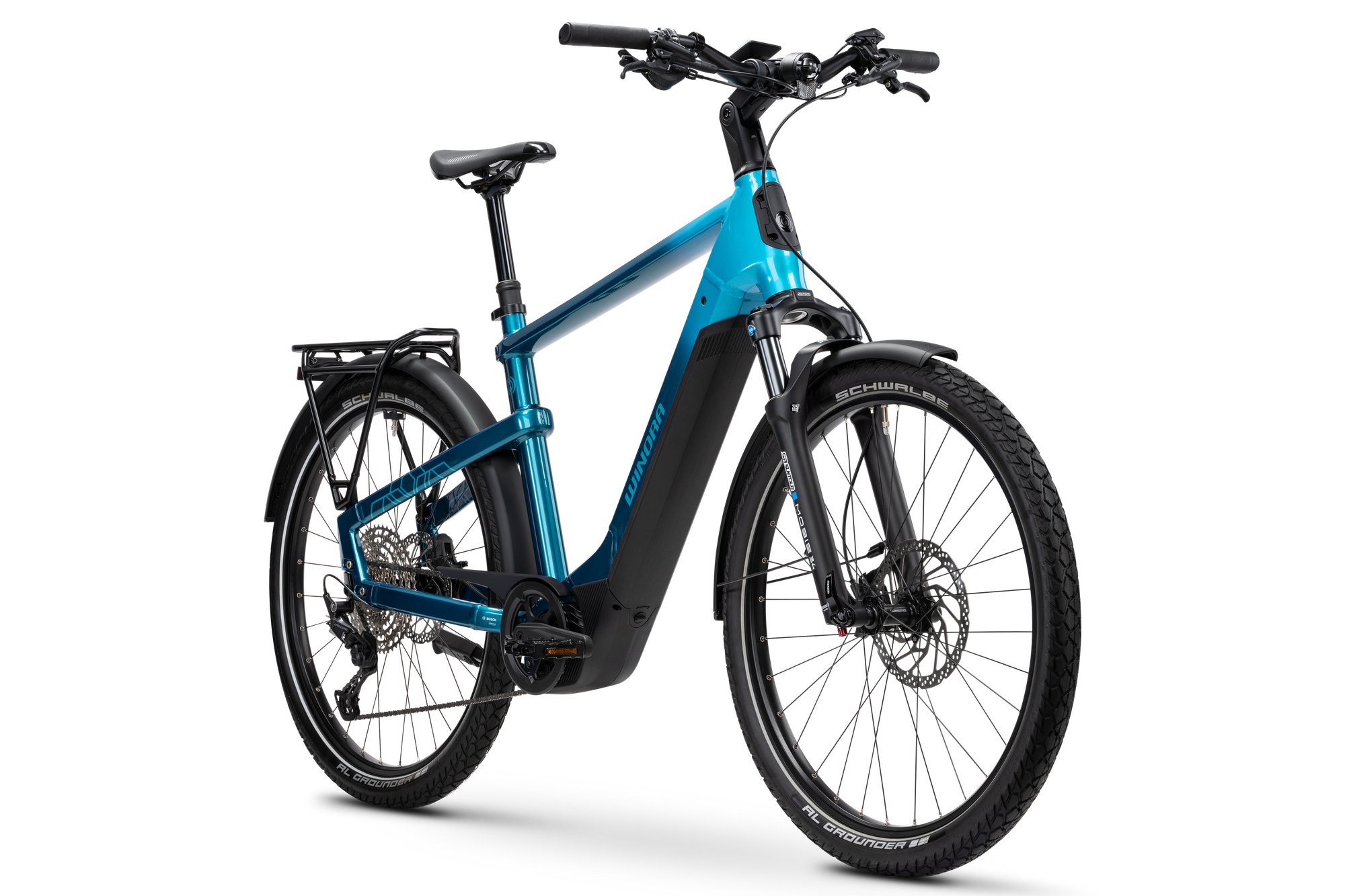

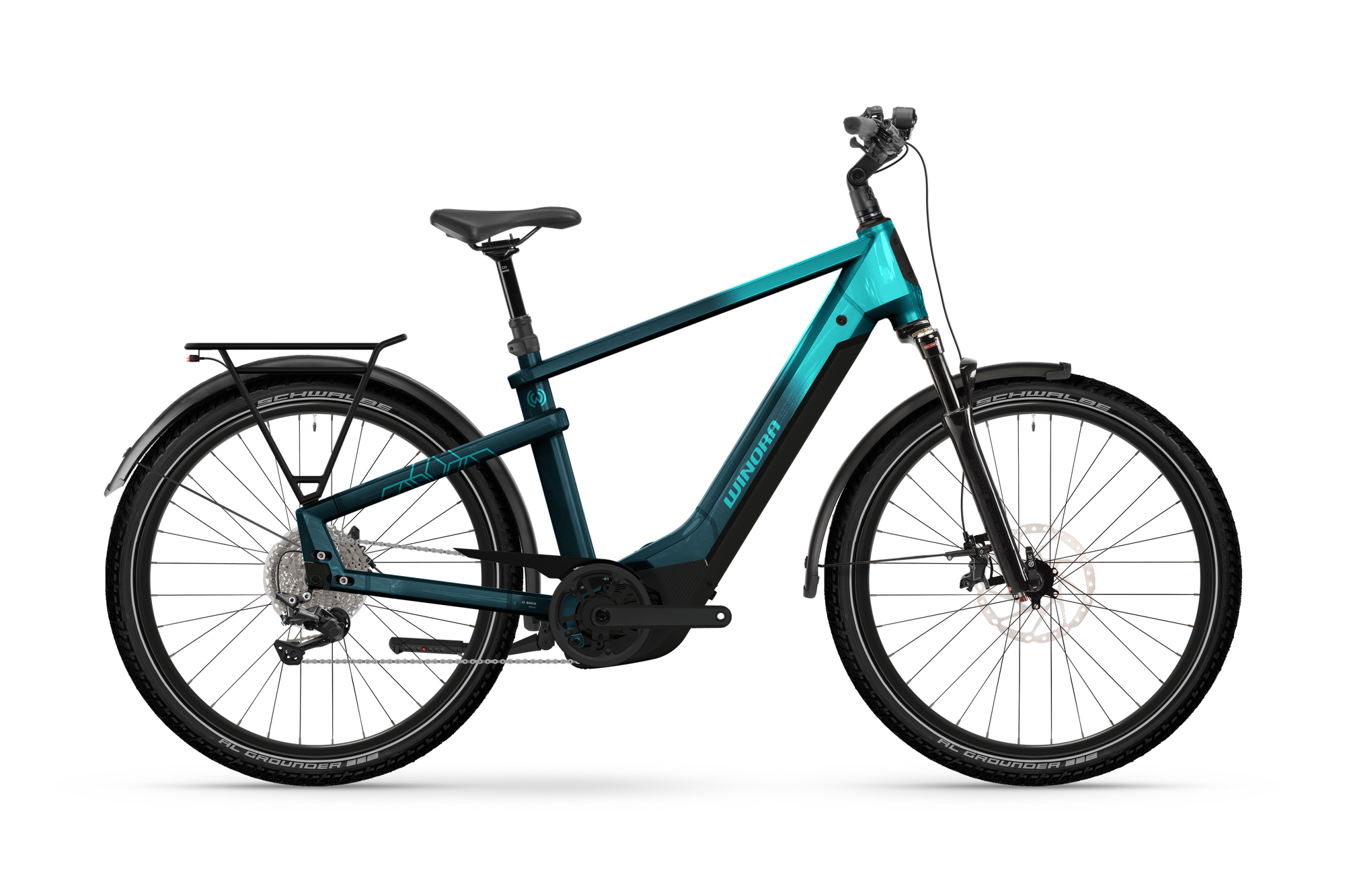

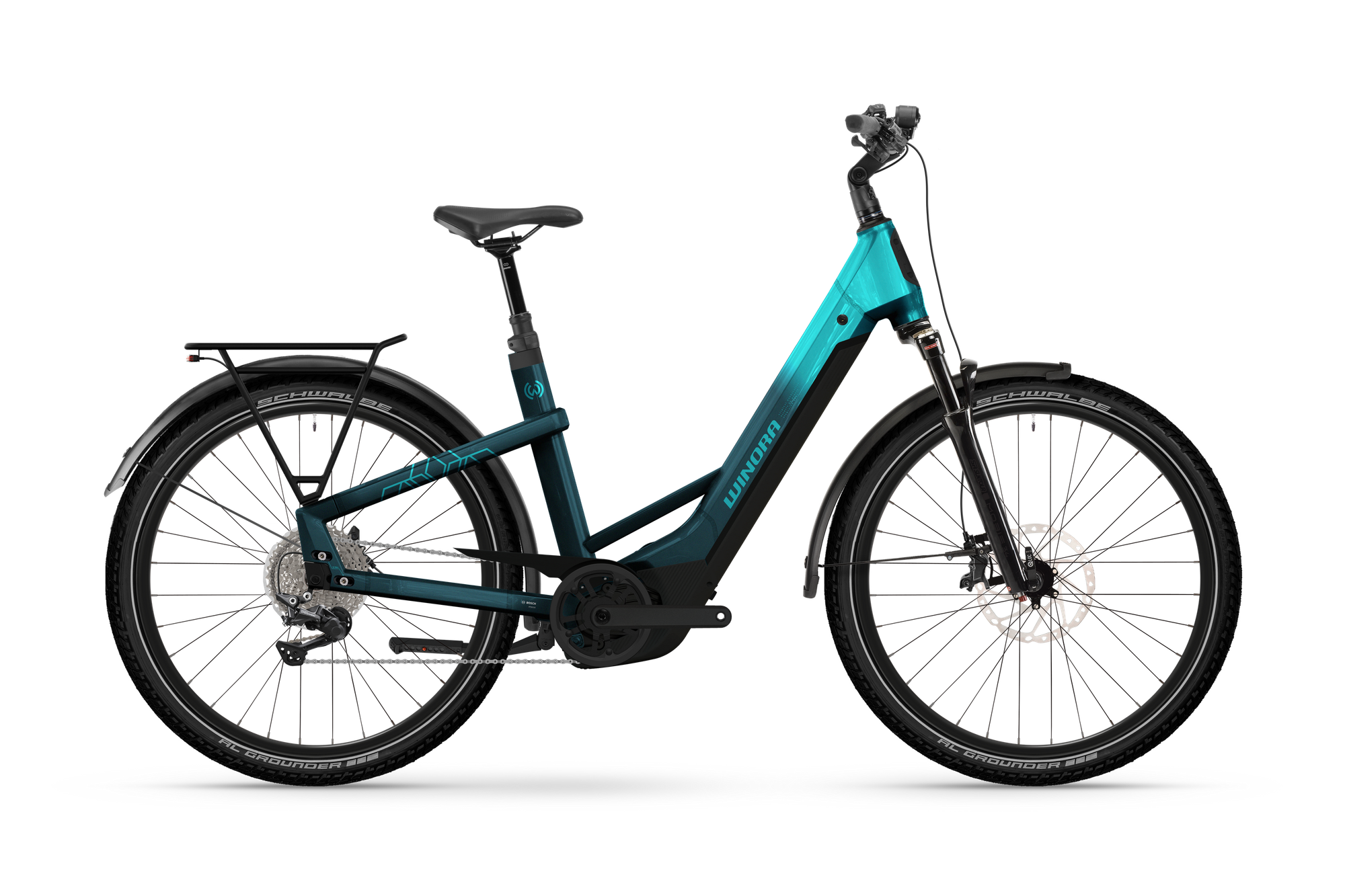

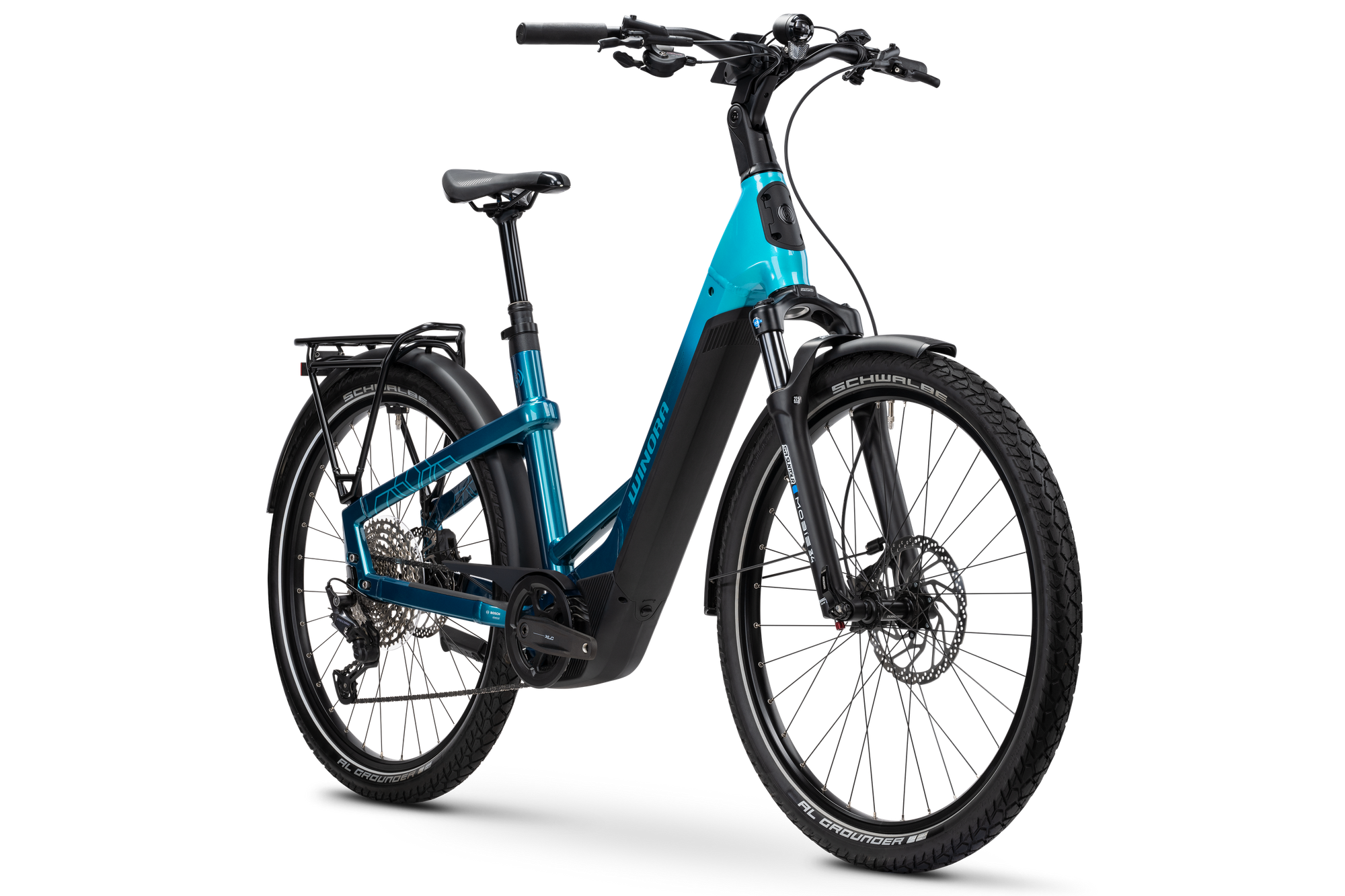

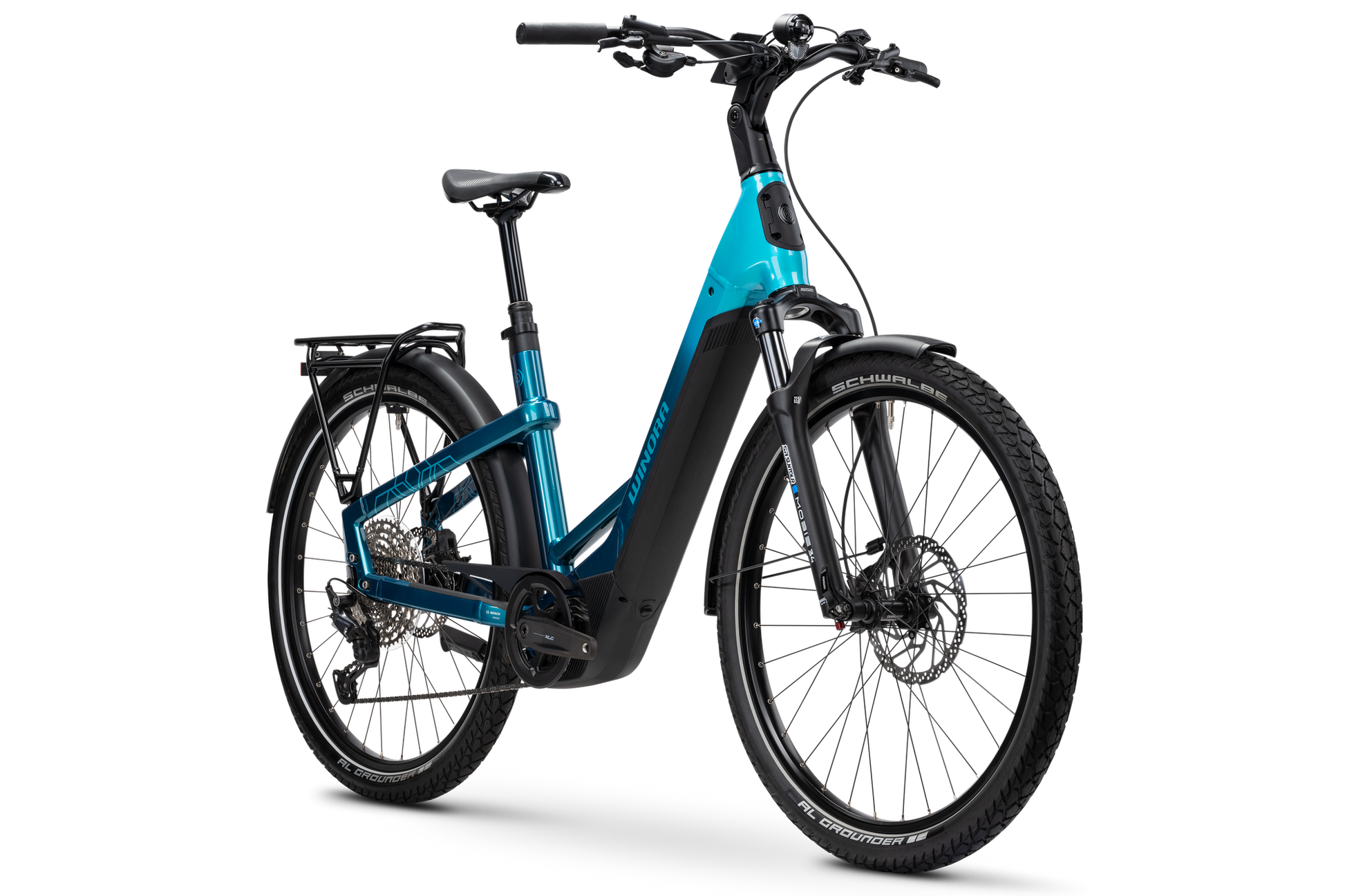

Andare in bici non è mai stato così facile. La nostra Winora Yakun X12 è una e-bike SUV di alta gamma per tutta la famiglia. Con un peso totale ammesso di 150 kg, una batteria extra-large da 800 Wh e caratteristiche interessanti come il Modular Rail System, questa e-bike da trekking è una compagna robusta, versatile e affidabile, sia in città che sui sentieri. Il nuovo motore Bosch Performance CX Smart System offre tanta potenza e funzioni intelligenti, mentre la batteria da 800 Wh garantisce riserve più che sufficienti per le avventure più lunghe. Il massimo comfort e la massima sicurezza su qualsiasi terreno sono assicurati dalla forcella con sospensioni pneumatiche e dal reggisella regolabile in altezza. Un portapacchi posteriore di serie e uno anteriore opzionale ti permettono di trasportare tutto ciò che ti serve per il tuo viaggio. Disponibile sia nella versione con telaio alto che in quella con telaio basso. Se solo andare in bici fosse sempre stato così facile!
Geometria
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 440 mm | 470 mm | 510 mm | 540 mm |
| B: Top Tube legth (mm) | 617 mm | 628 mm | 640 mm | 653 mm |
| C: Head tube length (mm) | 160 mm | 170 mm | 180 mm | 190 mm |
| D: Head Tube Angle | 69 degrees | 69 degrees | 69 degrees | 69 degrees |
| E: Seat Tube Angle | 76 degrees | 76 degrees | 76 degrees | 76 degrees |
| F: Chain stay length (mm) | 472 mm | 472 mm | 472 mm | 472 mm |
| G: Wheelbase (mm) | 1196 mm | 1197 mm | 1210 mm | 1224 mm |
| H: Stack (mm) | 635 mm | 645 mm | 654 mm | 663 mm |
| I: Reach (mm) | 457 mm | 455 mm | 465 mm | 475 mm |
| K: Bottom bracket drop (mm) | -60 mm | -60 mm | -60 mm | -60 mm |
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 440 mm | 470 mm | 510 mm | 540 mm |
| B: Top Tube legth (mm) | 617 mm | 628 mm | 640 mm | 653 mm |
| C: Head tube length (mm) | 160 mm | 170 mm | 180 mm | 190 mm |
| D: Head Tube Angle | 69 degrees | 69 degrees | 69 degrees | 69 degrees |
| E: Seat Tube Angle | 76 degrees | 76 degrees | 76 degrees | 76 degrees |
| F: Chain stay length (mm) | 472 mm | 472 mm | 472 mm | 472 mm |
| G: Wheelbase (mm) | 1196 mm | 1197 mm | 1210 mm | 1224 mm |
| H: Stack (mm) | 635 mm | 645 mm | 654 mm | 663 mm |
| I: Reach (mm) | 457 mm | 455 mm | 465 mm | 475 mm |
| K: Bottom bracket drop (mm) | -60 mm | -60 mm | -60 mm | -60 mm |
Specifications
e-System
e-System
Battery: Bosch Li-ION InTube 800 Wh
Charger: Bosch Charger 4A 230V

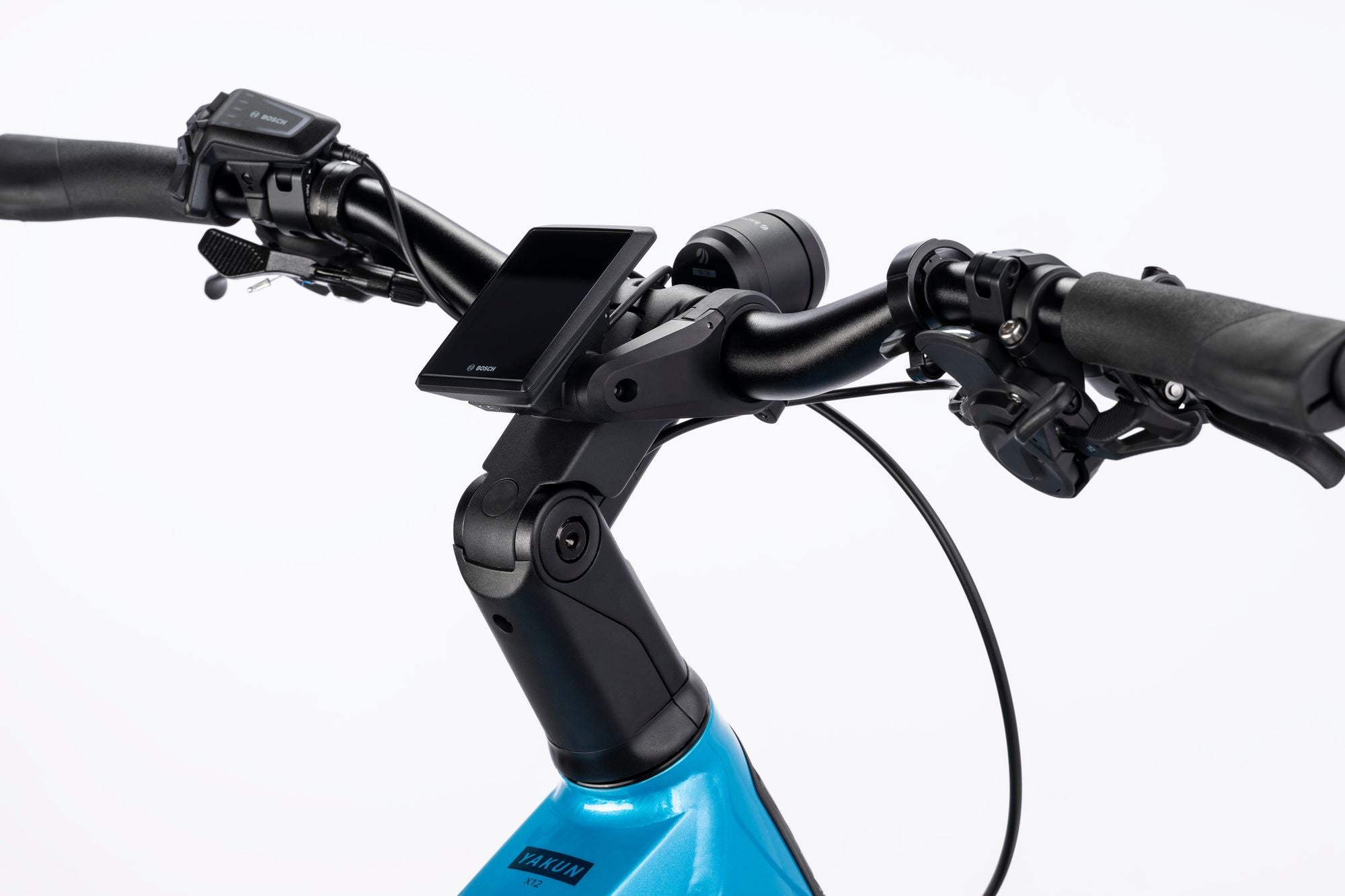

Display: Bosch Kiox 300 Kiox 300 + LED Remote

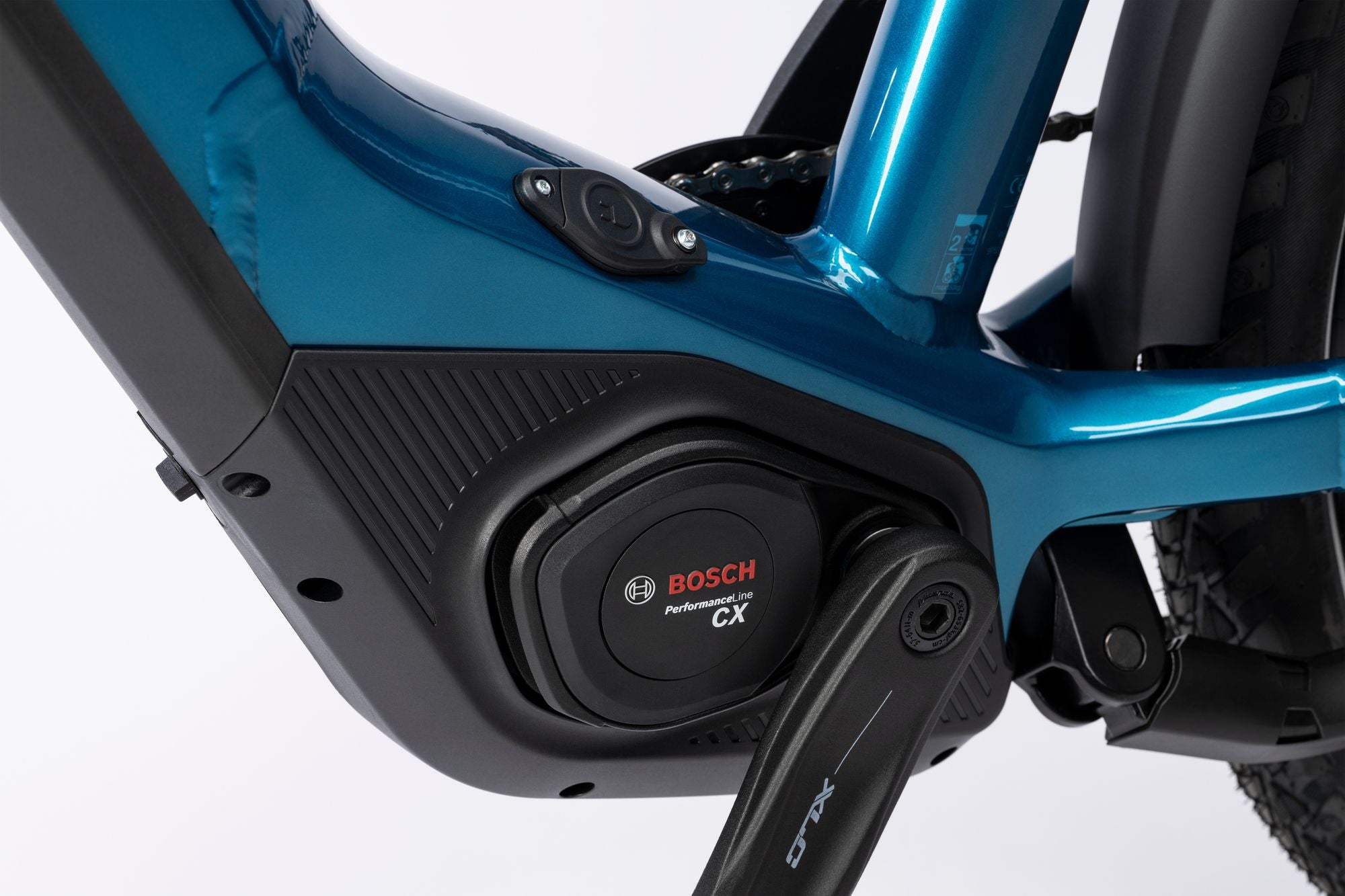

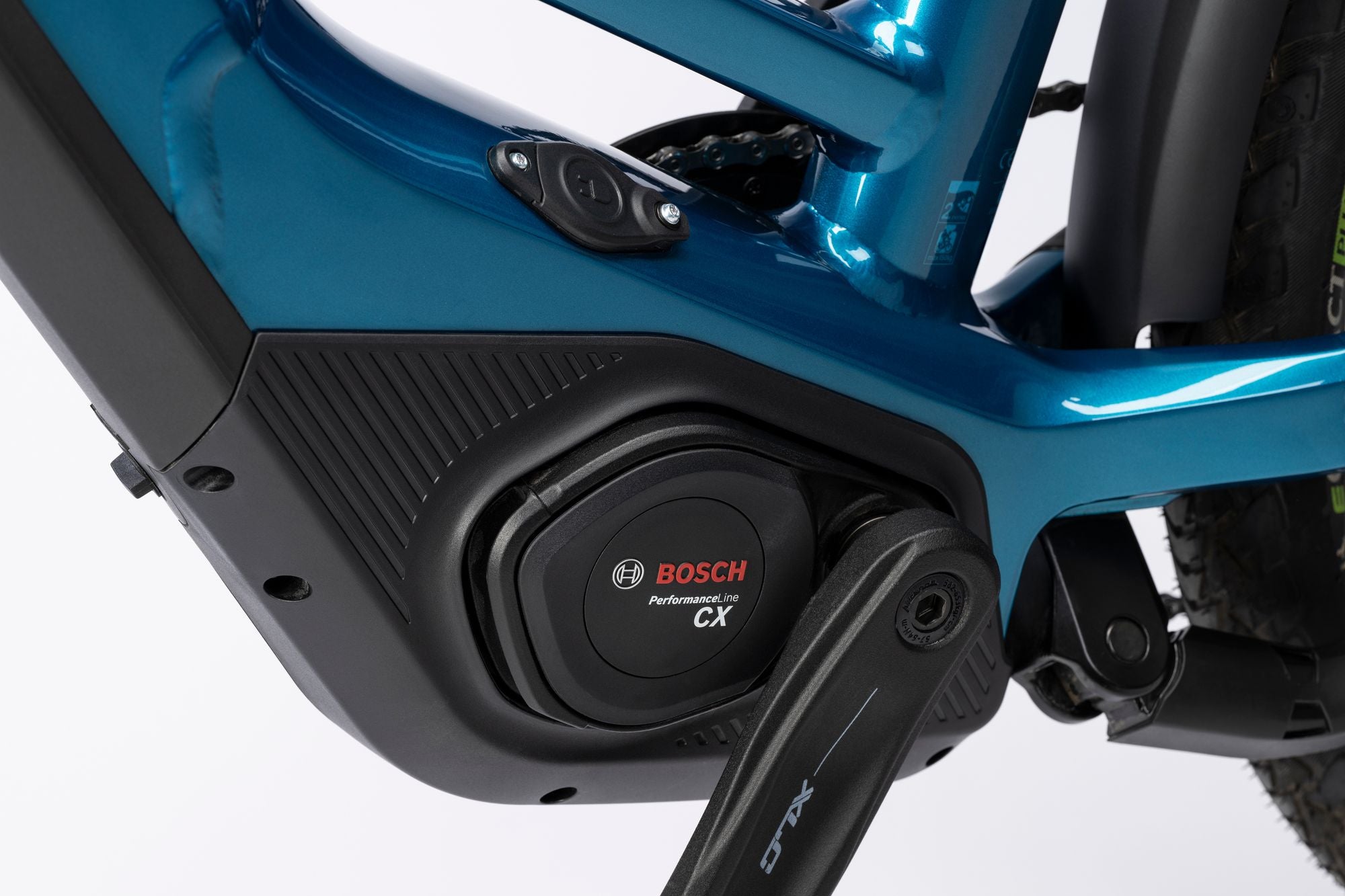

Motor: Bosch Performance Line CX Performance Line CX
Frame
Frame

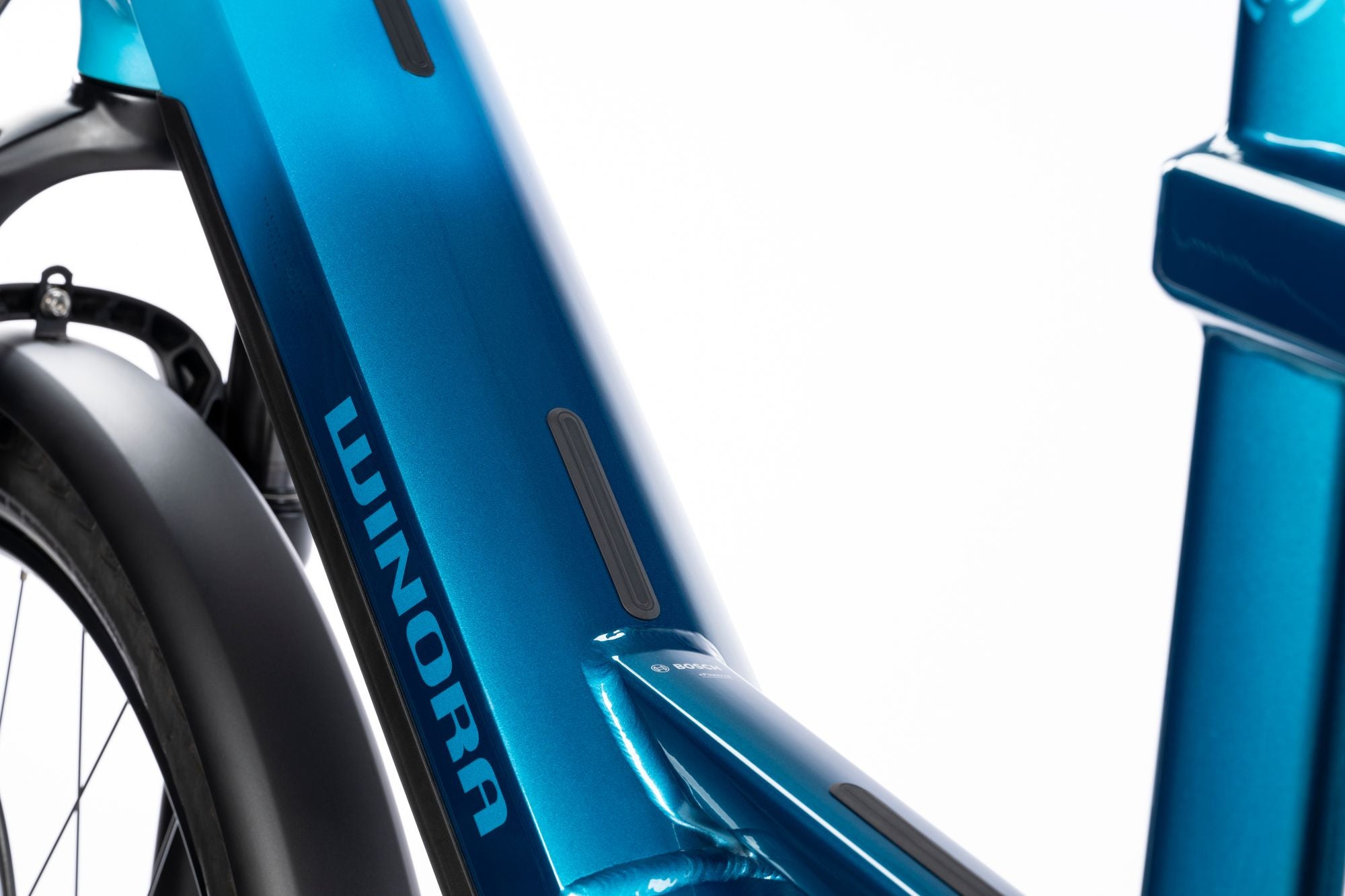

Frame: High Aluminium Uni
Modular Rail System: Yes
Maximum loadable weight: 150 kg
Drive
Drive
Cassette: Shimano Deore CS-M6100-12,MICRO SPLINE
Chain: Shimano Deore CN-M6100 12s
Crankset: Kies ISIS Cranks + Chainring

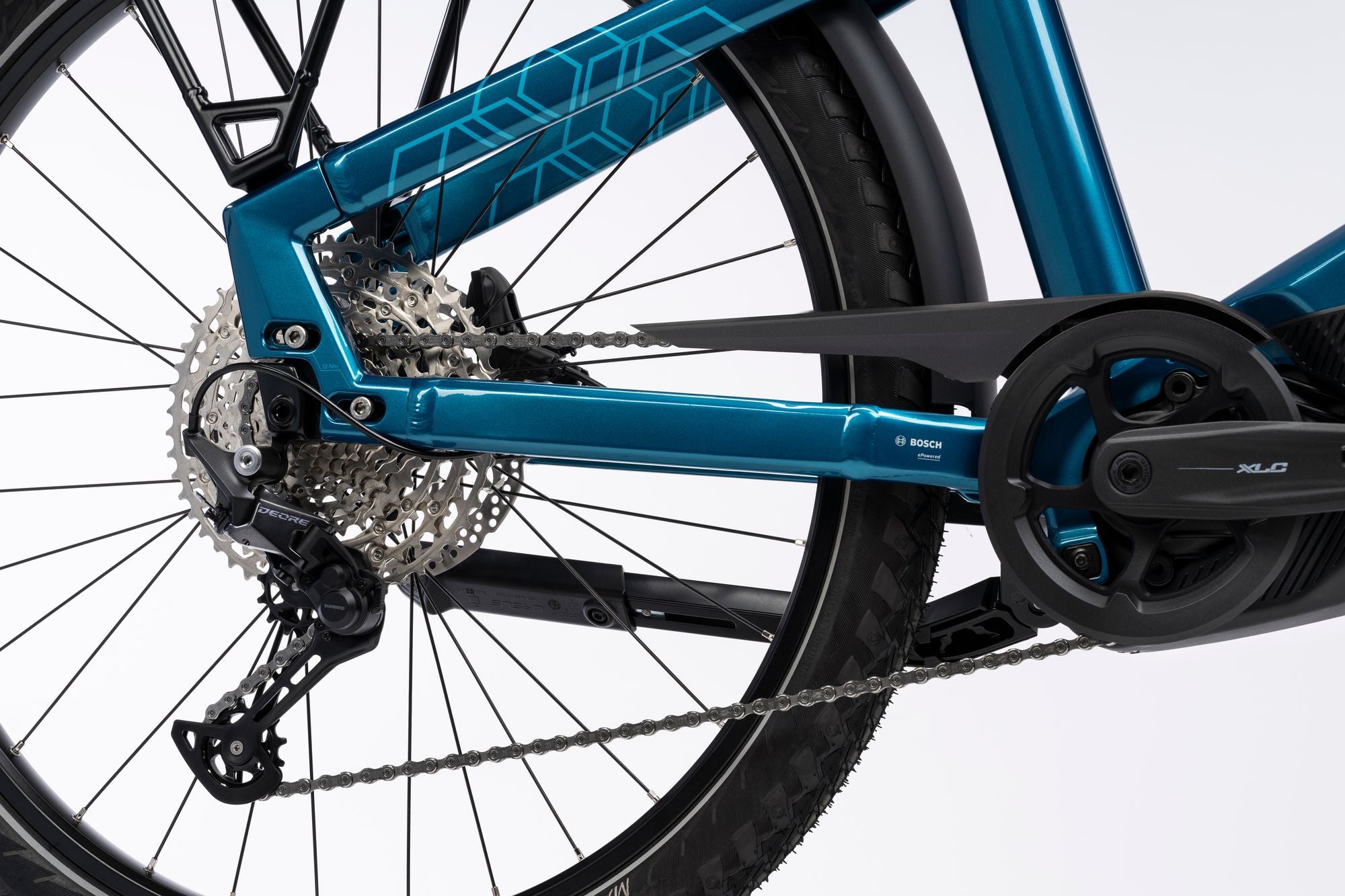

Derailleur Rear: Shimano Deore RD-M6100-SGS, 12s, Shadow+
Gear: Shimano Derailleur Deore
Number of gears: 12
Shifter Right: Shimano Triggershift Deore SL-M6100-12R, Rapidfire+
Suspension
Suspension

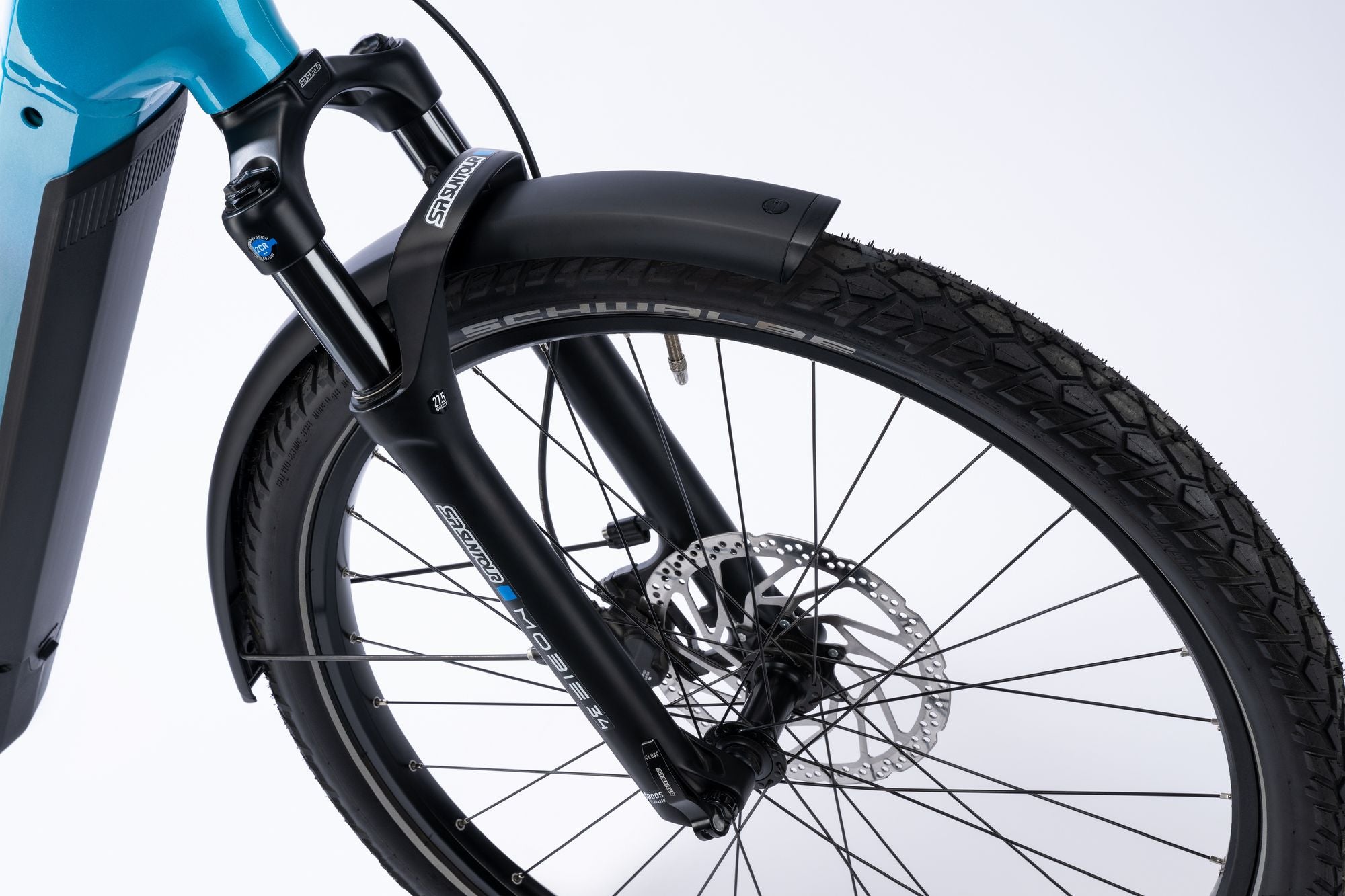

Front Fork: Suntour Mobie 34 2CR 80 mm
Rear Travel:
Shock:
Travel:
Components
Components

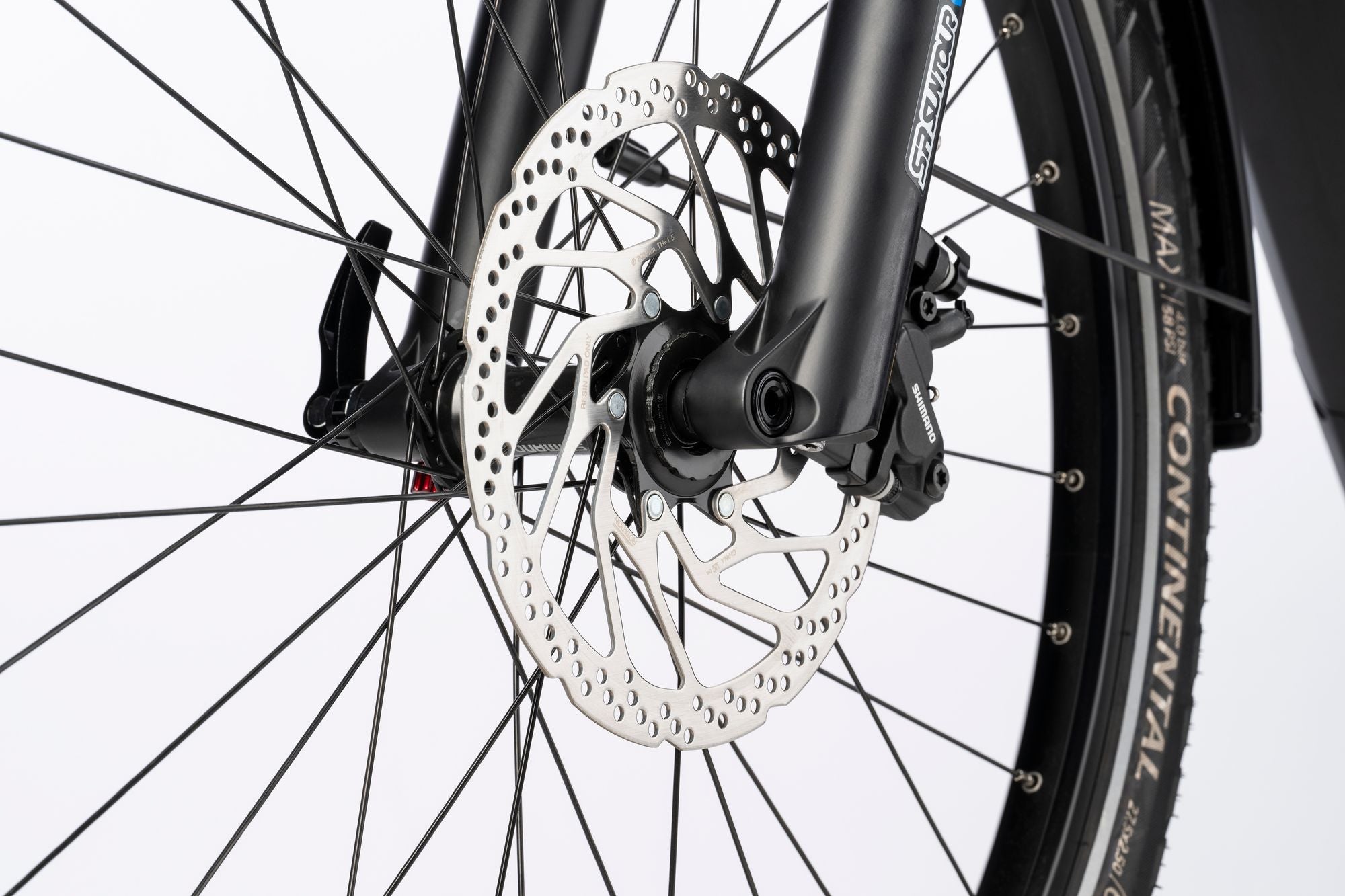

Front Brake: Shimano Hydraulic Disc brake Deore BR-M6120,4 pistons, resin pad, 203mm
Rear Brake: Shimano Hydraulic Disc brake Deore BR-M6120, 4 pistons, resin pad, 180mm

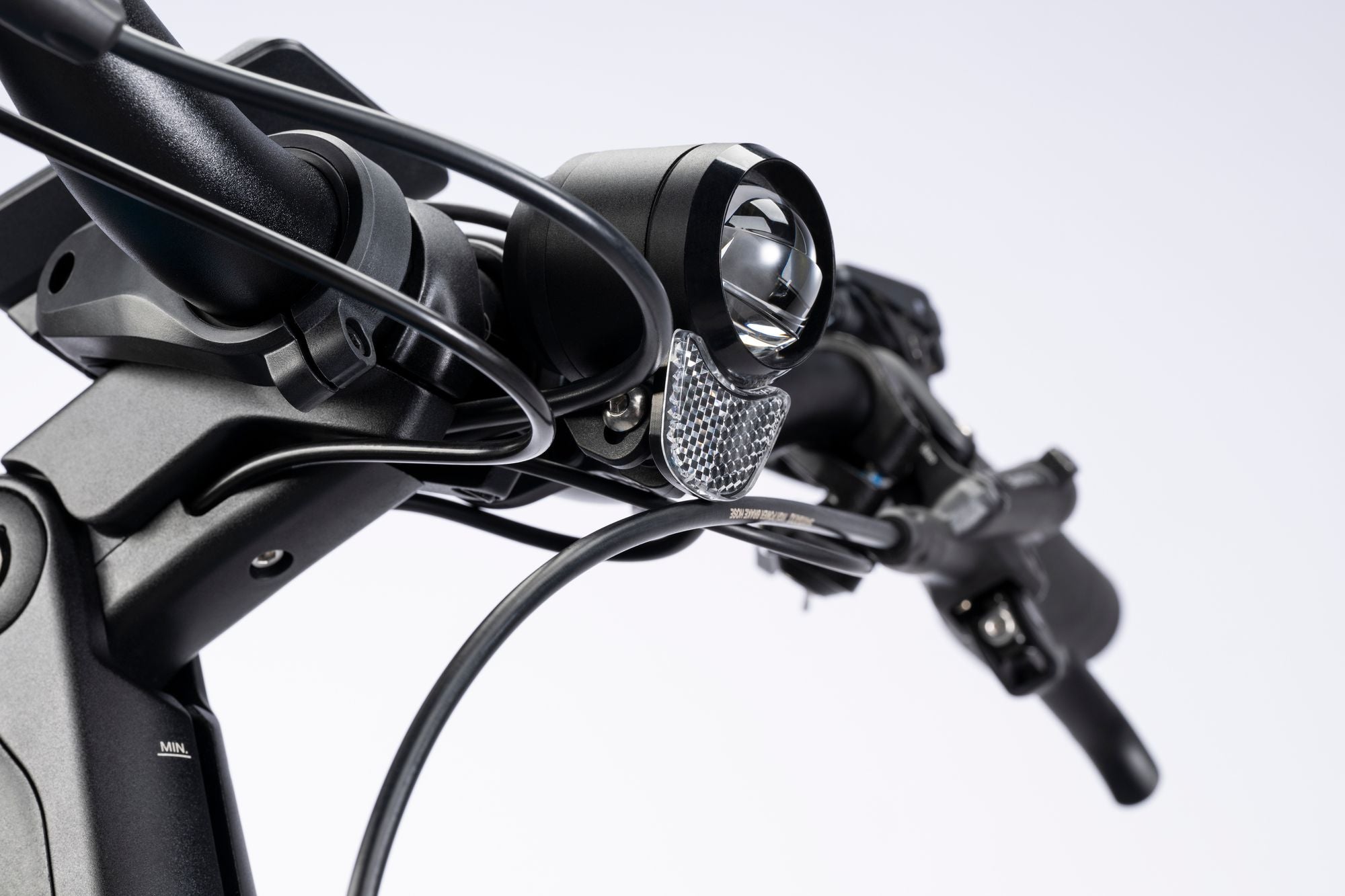

Headlight: Trelock Via E-bike System Skybeamer 300, 6-24V
Rear Light: Spanninga Via E-bike System Pimento XE with Brakelight, 6-36 V
Brake light: Yes
Grips: Herrmans
Handlebar: JD TR28AL, Dia. 31.8 mm, Rise: 19 mm
Pedal: VP VPE-625 MTB Pedal w. Reflector
Saddle: Selle Royal Vivo Ergo 1217 HRN

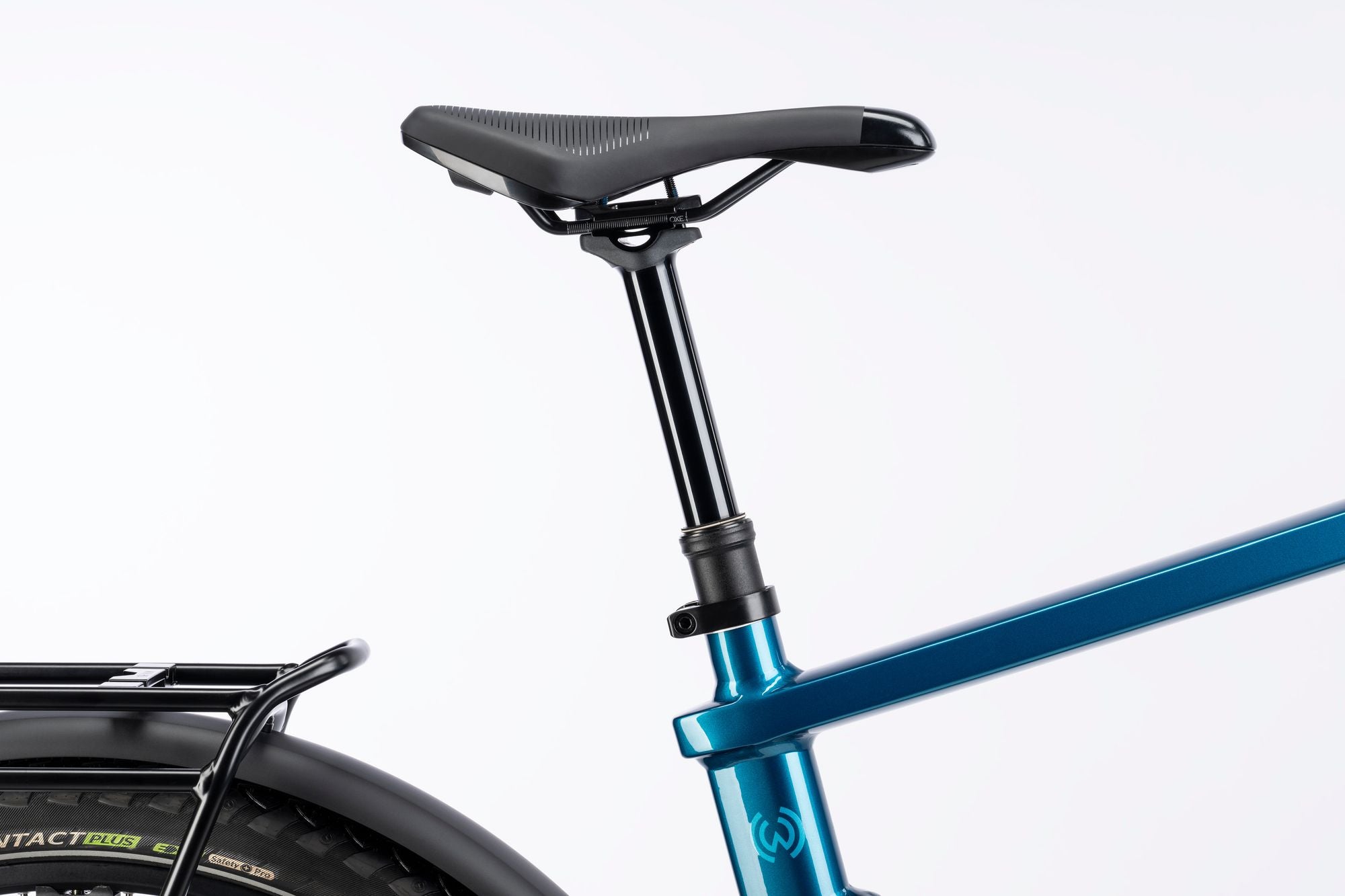

Seatpost: Limotec Dropperpost Alpha A1, Dia. 34.9 mm, Travel: 125 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Schurmann YAK Disc 25-584, 32H, 8,5 mm Valve
Tyre: Schwalbe AL Grounder Performance 60-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
