Yakun ENV ABS
Yakun ENV ABSBosch Performance Line CX Performance Line CX
Description
Description
Più comfort, più controllo, più WINORA ad ogni pedalata. La nuova WINORA Yakun ENV ABS porta la tua esperienza di trekking a un livello superiore: questa e-bike SUV è potente, versatile e intelligente. La sua trasmissione automatica continua Enviolo seleziona la marcia giusta per te, così puoi semplicemente goderti il viaggio. Caratteristiche premium su tutta la linea: il motore Bosch Performance CX e la batteria da 800 Wh garantiscono una potenza di altissimo livello. E se hai bisogno di ancora più autonomia, basta collegare il Range Extender. Per la sicurezza su tutti i terreni, l’ABS integrato per e-bike ti copre le spalle. Robusta: il portapacchi posteriore trasporta facilmente i tuoi bagagli, mentre un portapacchi anteriore opzionale aggiunge ancora più spazio. In breve: la Yakun ENV ABS è la tua compagna intelligente con il comfort di un SUV – per la massima libertà in ogni escursione.
Geometria
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 440 mm | 470 mm | 510 mm | 540 mm |
| B: Top Tube legth (mm) | 617 mm | 628 mm | 640 mm | 653 mm |
| C: Head tube length (mm) | 160 mm | 170 mm | 180 mm | 190 mm |
| D: Head Tube Angle | 69 degrees | 69 degrees | 69 degrees | 69 degrees |
| E: Seat Tube Angle | 76 degrees | 76 degrees | 76 degrees | 76 degrees |
| F: Chain stay length (mm) | 472 mm | 472 mm | 472 mm | 472 mm |
| G: Wheelbase (mm) | 1196 mm | 1197 mm | 1210 mm | 1224 mm |
| H: Stack (mm) | 635 mm | 645 mm | 654 mm | 663 mm |
| I: Reach (mm) | 457 mm | 455 mm | 465 mm | 475 mm |
| K: Bottom bracket drop (mm) | 60 mm | 60 mm | 60 mm | 60 mm |
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 440 mm | 470 mm | 510 mm | 540 mm |
| B: Top Tube legth (mm) | 617 mm | 628 mm | 640 mm | 653 mm |
| C: Head tube length (mm) | 160 mm | 170 mm | 180 mm | 190 mm |
| D: Head Tube Angle | 69 degrees | 69 degrees | 69 degrees | 69 degrees |
| E: Seat Tube Angle | 76 degrees | 76 degrees | 76 degrees | 76 degrees |
| F: Chain stay length (mm) | 472 mm | 472 mm | 472 mm | 472 mm |
| G: Wheelbase (mm) | 1196 mm | 1197 mm | 1210 mm | 1224 mm |
| H: Stack (mm) | 635 mm | 645 mm | 654 mm | 663 mm |
| I: Reach (mm) | 457 mm | 455 mm | 465 mm | 475 mm |
| K: Bottom bracket drop (mm) | 60 mm | 60 mm | 60 mm | 60 mm |
Specifications
e-System
e-System
Battery: Bosch Li-ION
Charger: Bosch Charger 4A 220-240V
Display: Bosch Kiox 500 Kiox 500 + LED Remote
Motor: Bosch Performance Line CX Performance Line CX
Frame
Frame
Frame: High Aluminium Uni
Modular Rail System:
Maximum loadable weight: 150 kg
Drive
Drive
Cassette: Gates Carbon Drive CDX Sprocket, 9 Spline
Chain: Gates Belt Carbon Drive Belt CDX, 122T
Crankset: Kies ISIS Cranks + GATES CDX CR + Spider
Derailleur Rear:
Gear: Enviolo Internal Gear Hub
Number of gears:
Shifter Right: Enviolo Triggershift Automatic Controller Cliq Pro
Suspension
Suspension
Front Fork: Suntour SF24 Mobie34 Boost ABS EQ 80 mm
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Magura Hydraulic Disc brake MT-C ABS, 203 mm
Rear Brake: Magura Hydraulic Disc brake MT-C ABS, 203 mm
Headlight: Litemove Via E-bike System AC-150, 6-16V
Rear Light: Spanninga Via E-bike System Pimento XE with Brakelight, 6-36 V
Brake light: Yes
Grips: XLC
Handlebar: JD TR28AL, Dia. 31.8 mm, Rise 19 mm
Pedal: XLC PD-M30 Flat with Reflector
Saddle: Selle Royal Vivo Ergo 1217 HRN
Seatpost: Limotec Dropperpost D3, Dia. 34.9 mm, Travel: 125 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Schurmann YAK Disc 25-584, 32H, 8,5 mm Valve
Tyre: Continental E-Contact Plus Reflex 62-584

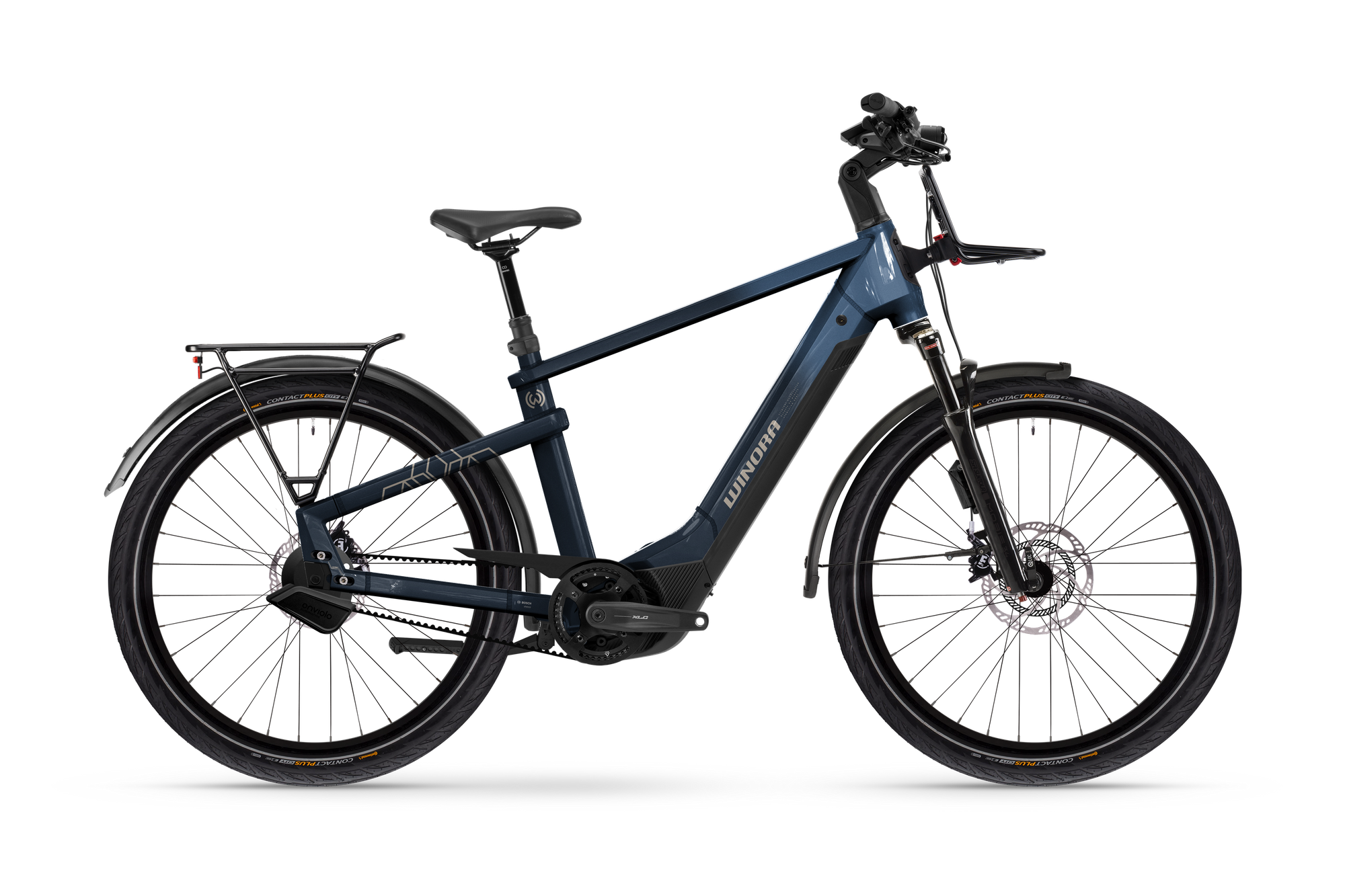

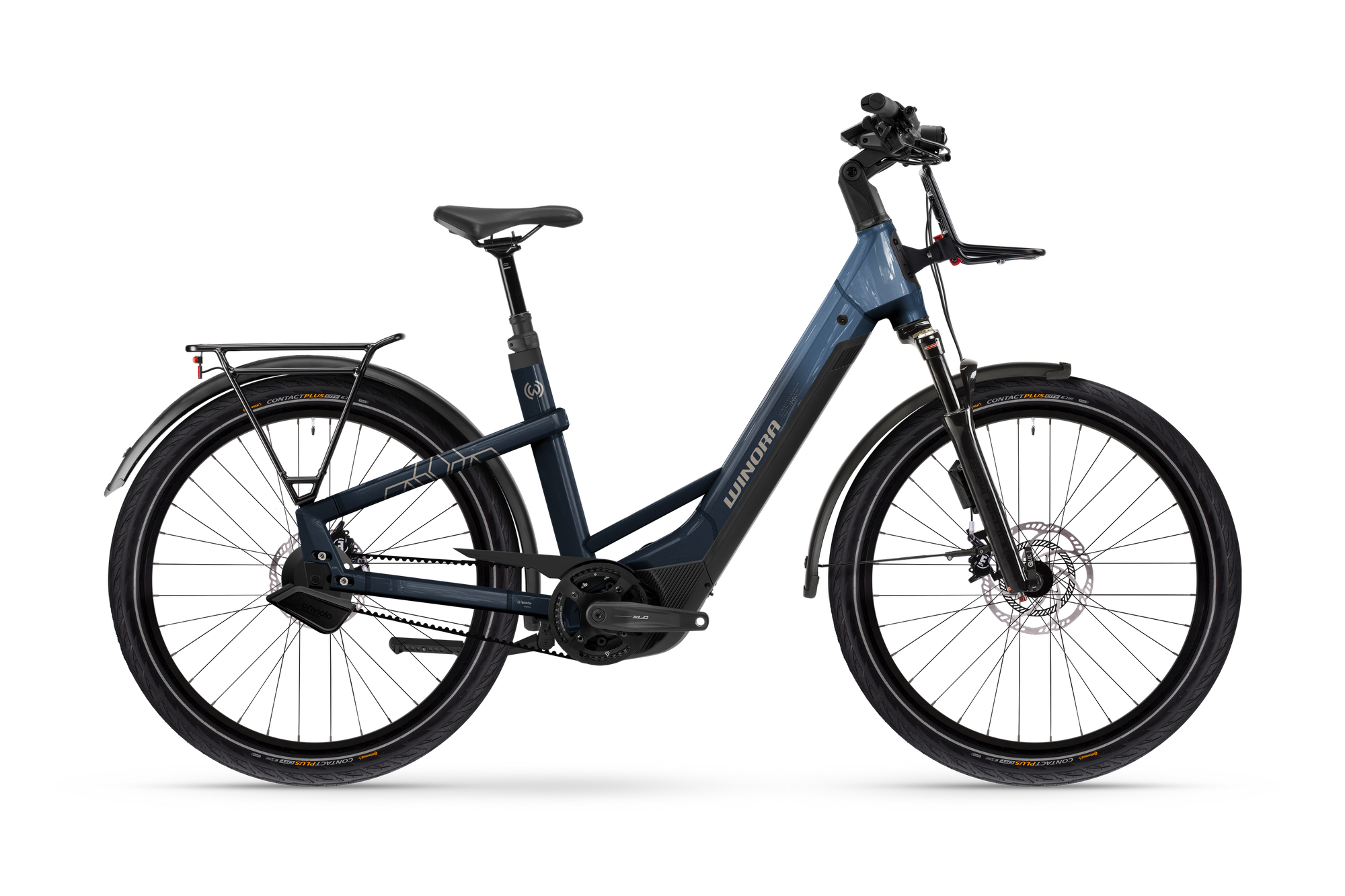

*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
