Bosch Active Line Plus
Description
Description

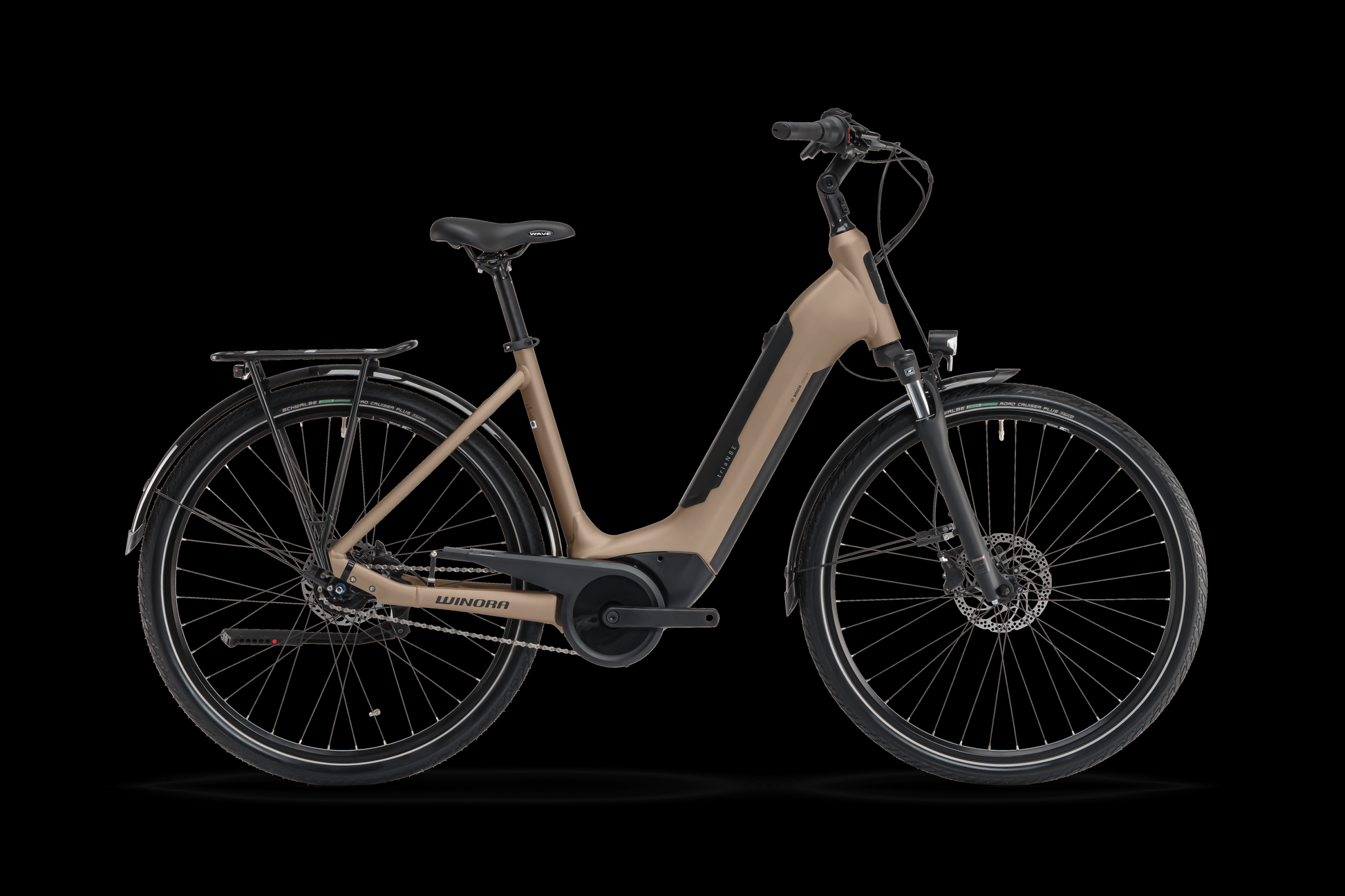

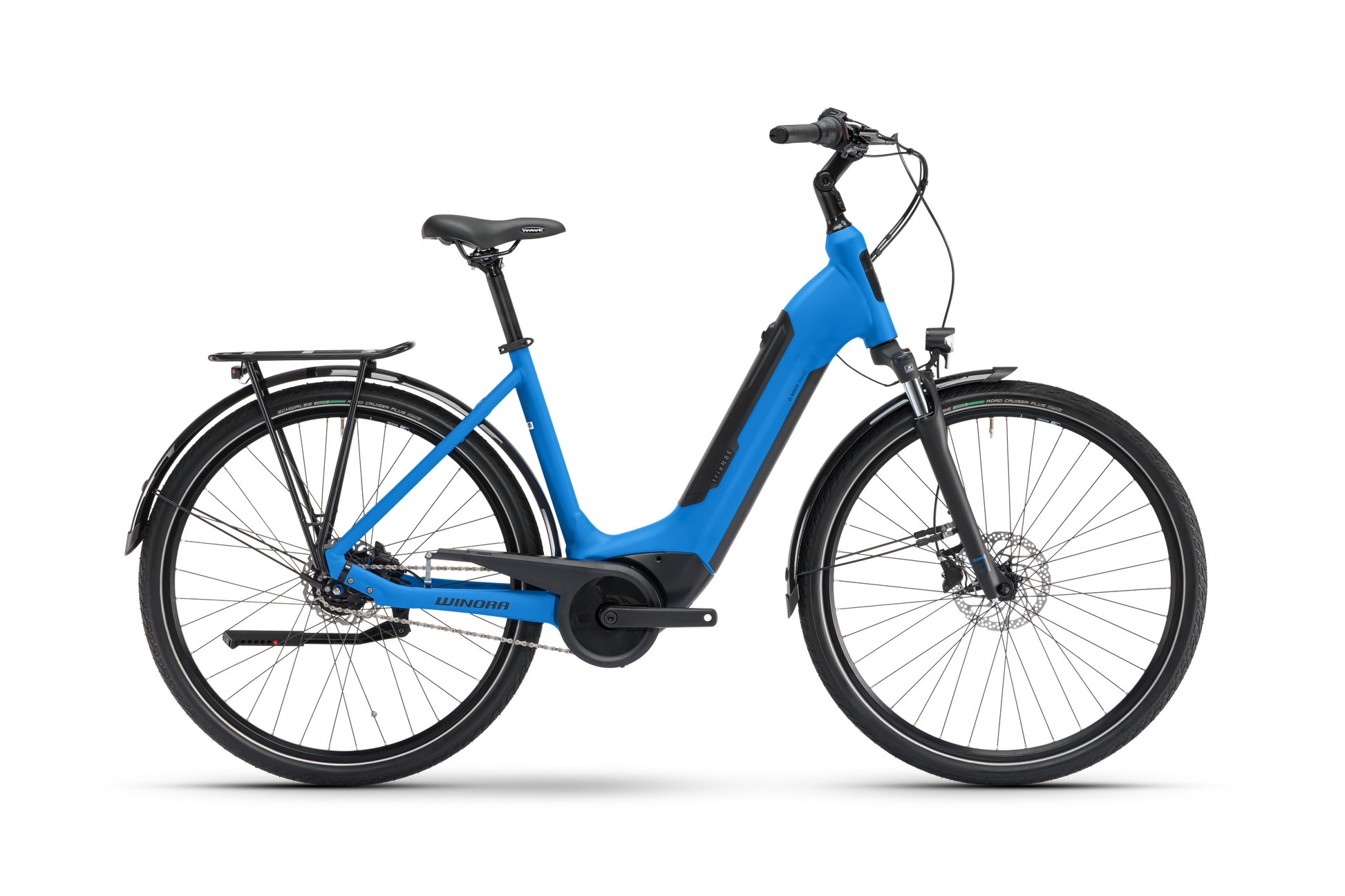

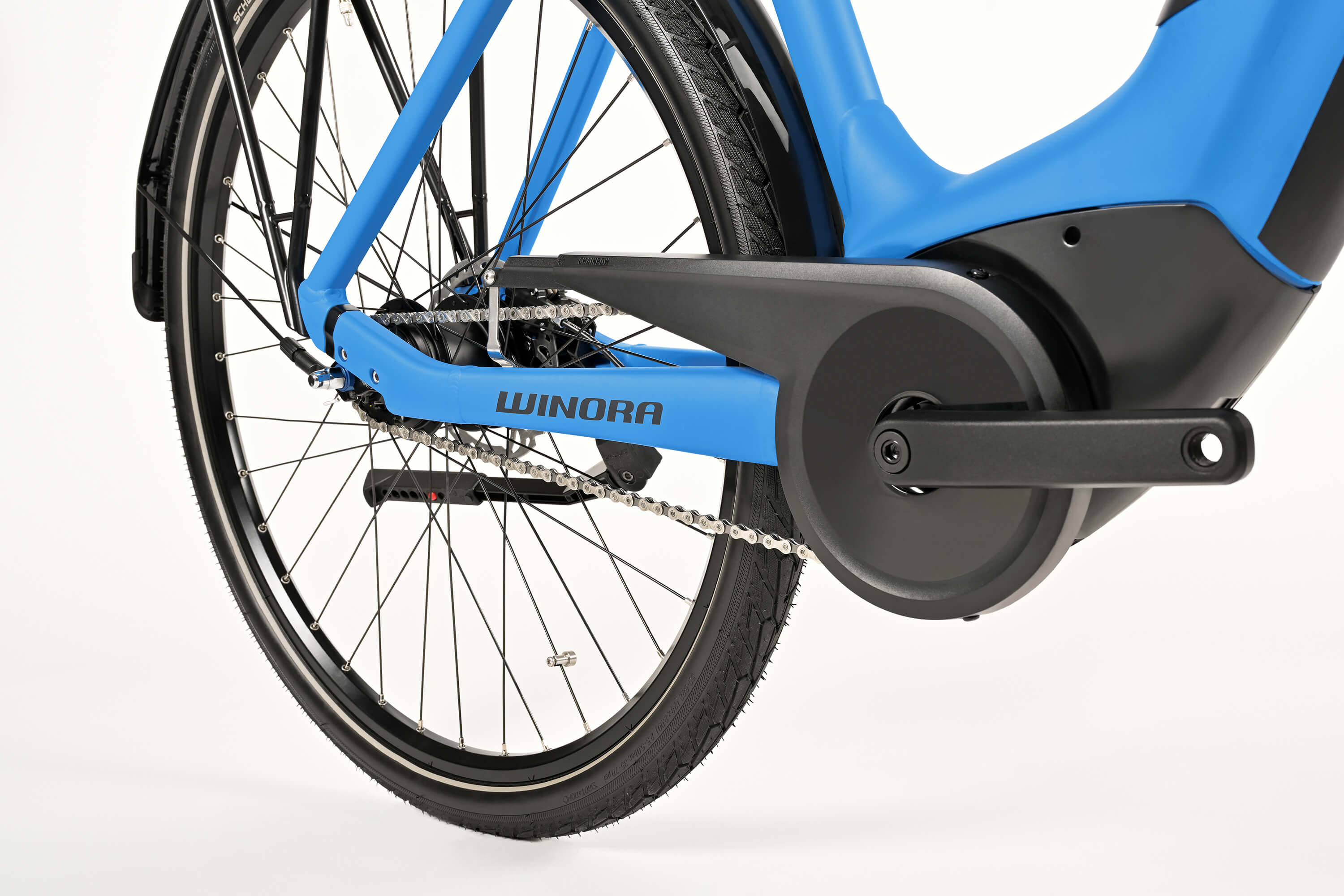

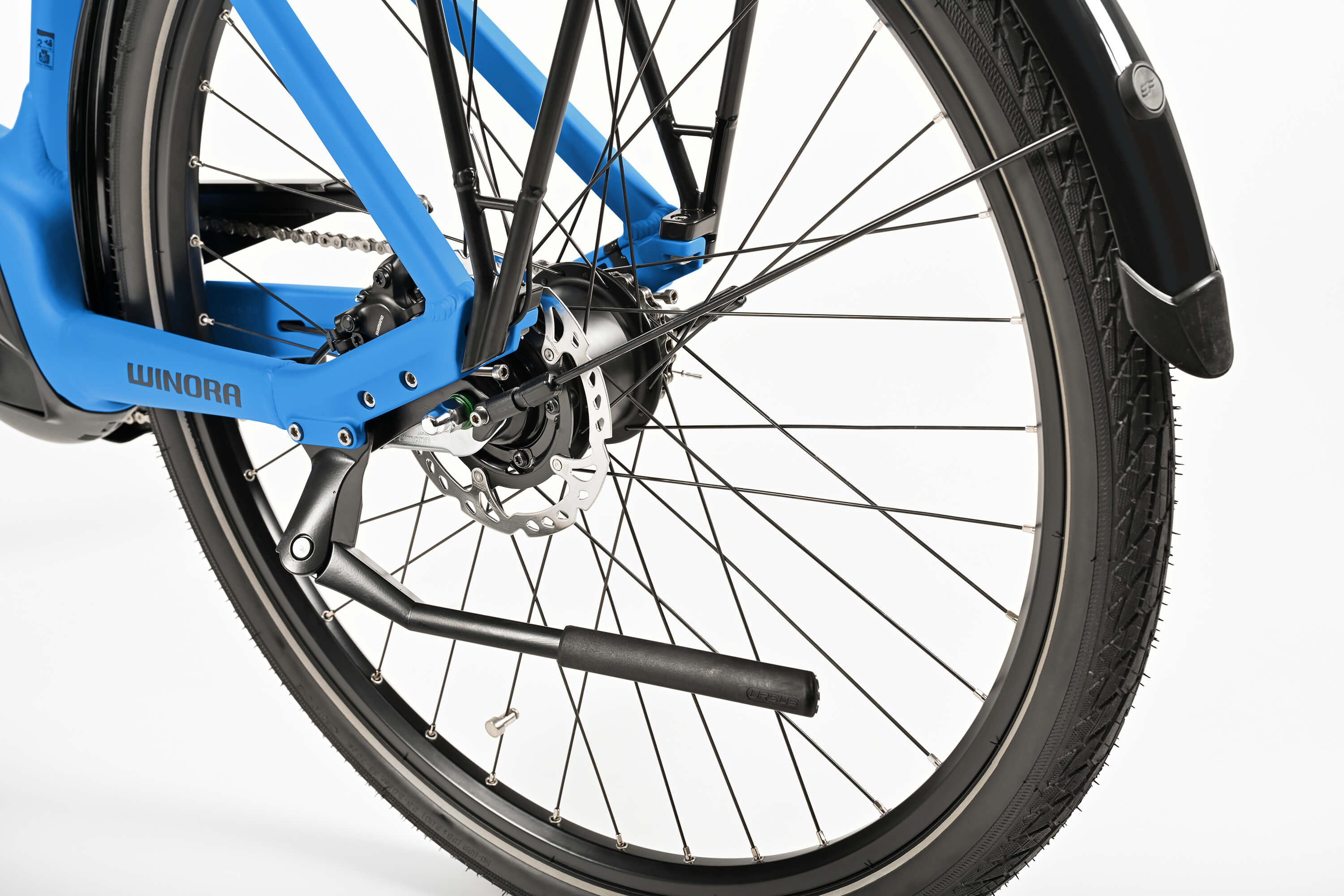

Andare in bici può essere davvero così facile. La Winora Tria N8 E Low è il miglior esempio del perché le e-bike abbiano conquistato le strade così in fretta. Il motto di questa bici: massimo comfort e massimo piacere di guida. Il sistema Bosch Active Plus Smart ti spinge dolcemente fino a 25 km/h e ti permette di superare il traffico dell’ora di punta con il sorriso sulle labbra. La posizione di guida rilassata e eretta ti fa dimenticare lo stress della vita quotidiana in un batter d’occhio. Componenti affidabili come il cambio al mozzo Nexus di Shimano, facile da pulire, i freni a disco idraulici con freno a contropedale e una forcella ammortizzata con escursione di 63 mm ti garantiscono sempre la massima sicurezza. Scegli la Tria N8 E Low e d'ora in poi lascia l'auto in garage: andare in bici ora è più facile che mai.
Geometria
| Component | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A: Seat tube length (mm) | 410 mm | 460 mm | 510 mm | 560 mm | 610 mm |
| B: Top Tube legth (mm) | 620 mm | 626 mm | 626 mm | 640 mm | 648 mm |
| C: Head tube length (mm) | 180 mm | 180 mm | 210 mm | 210 mm | 210 mm |
| D: Head Tube Angle | 70 degrees | 70 degrees | 70 degrees | 70 degrees | 70 degrees |
| E: Seat Tube Angle | 71 degrees | 71 degrees | 71 degrees | 71 degrees | 71 degrees |
| F: Chain stay length (mm) | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm |
| G: Wheelbase (mm) | 1140 mm | 1150 mm | 1160 mm | 1170 mm | 1180 mm |
| H: Stack (mm) | 643 mm | 643 mm | 667 mm | 667 mm | 667 mm |
| I: Reach (mm) | 404 mm | 414 mm | 416 mm | 426 mm | 436 mm |
| K: Bottom bracket drop (mm) | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
Specifications
e-System
e-System

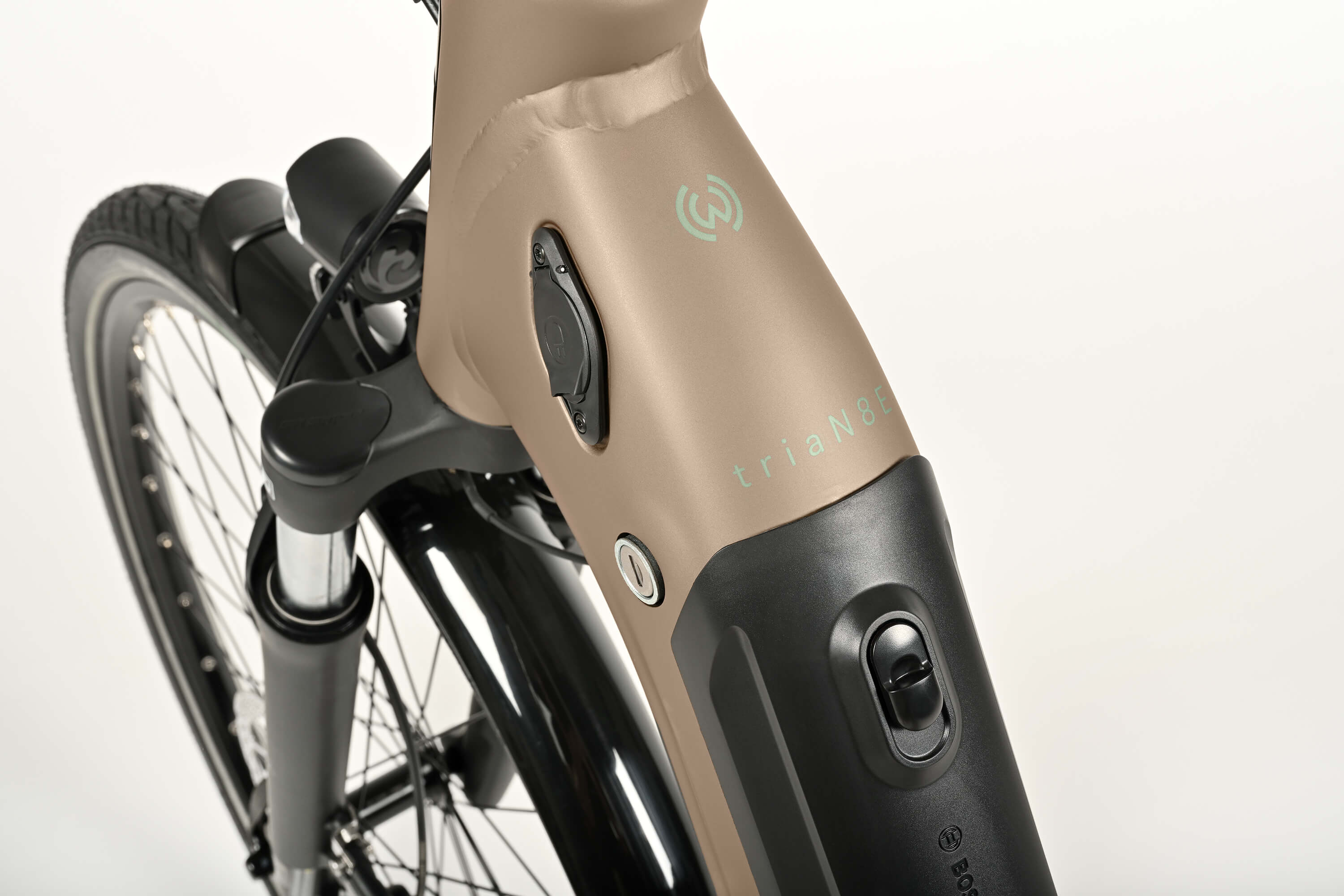

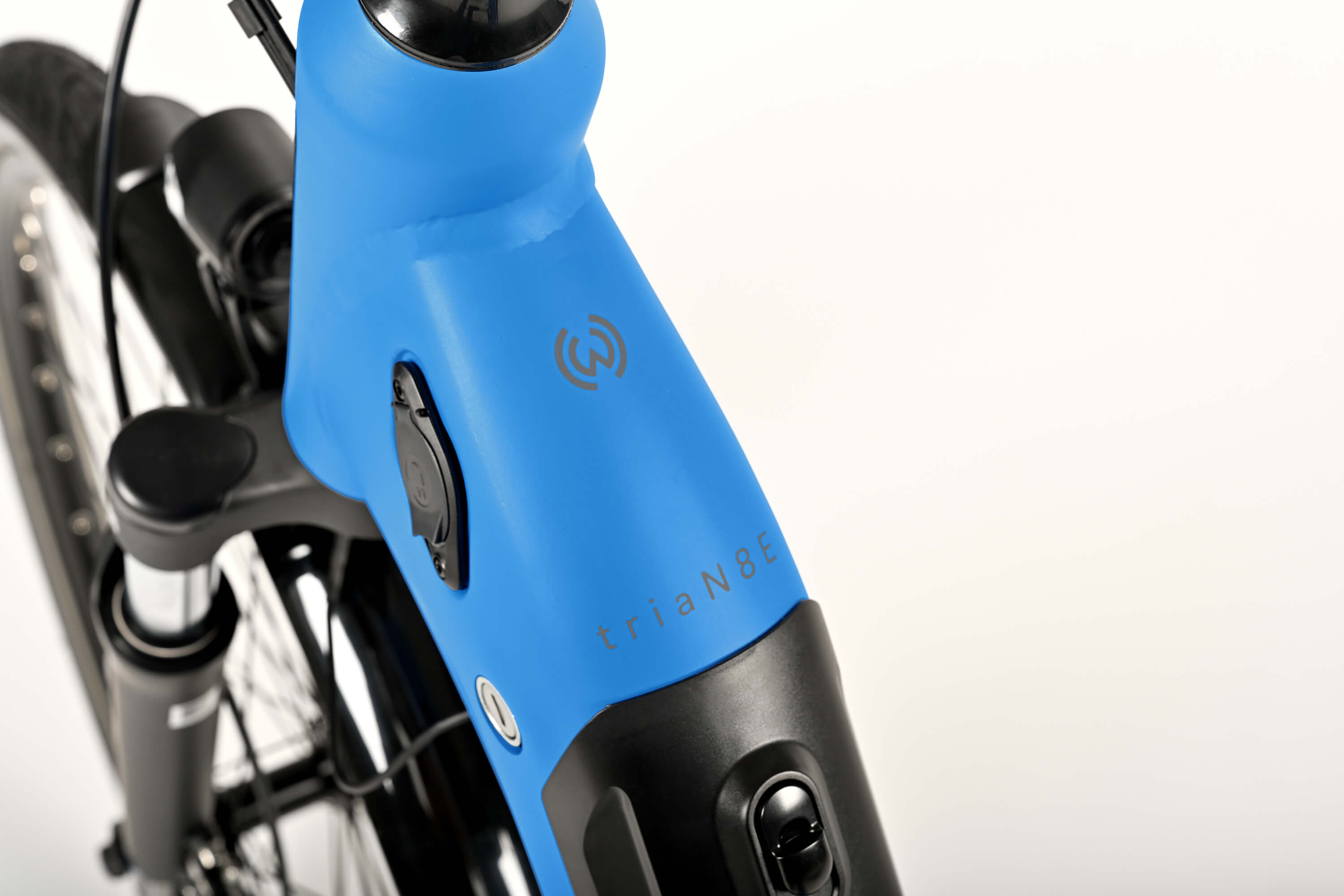

Battery: Bosch Li-ION InTube 500 Wh
Charger: Bosch Charger 2A
Display: Bosch Intuvia 100 Intuvia 100 + LED Remote

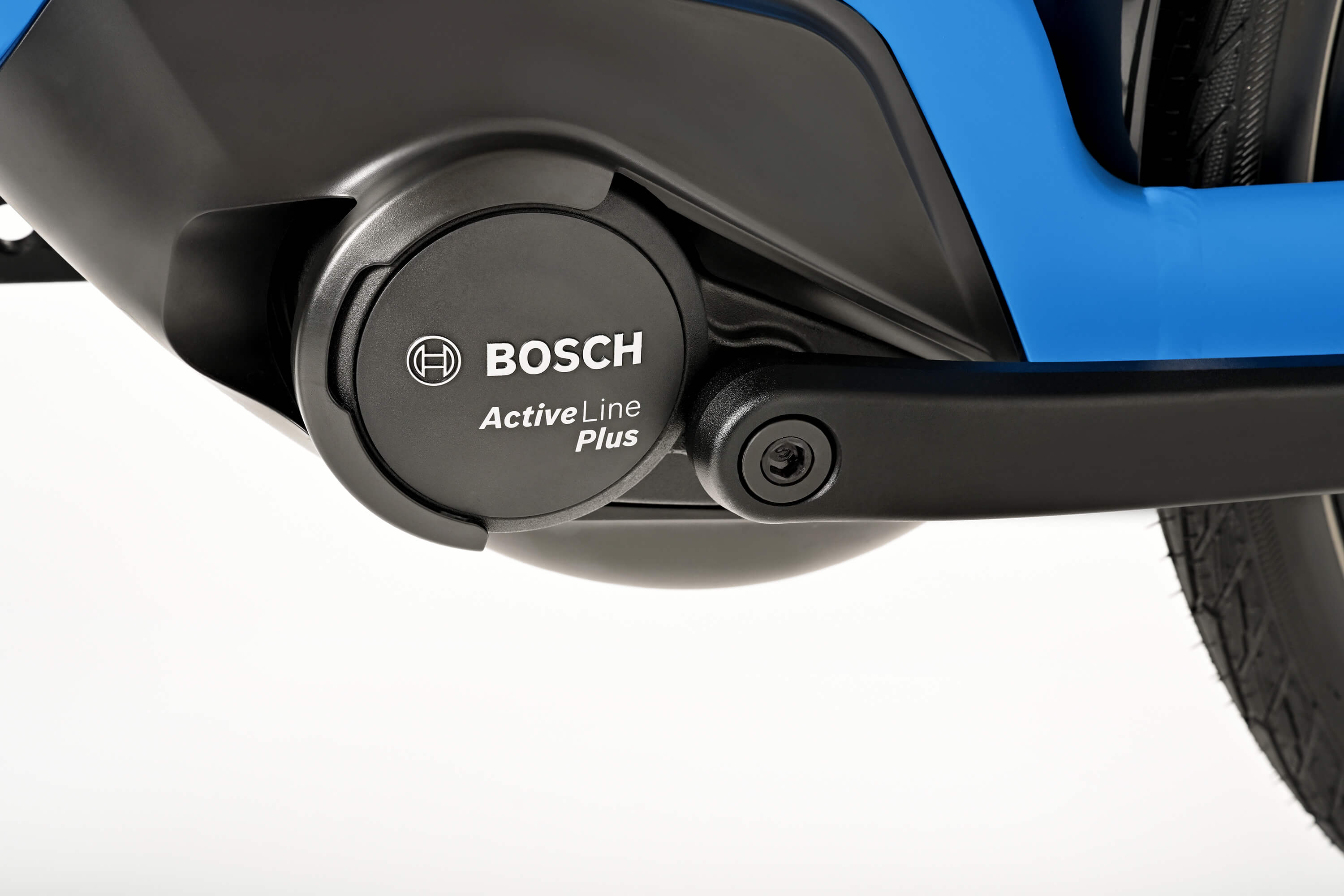

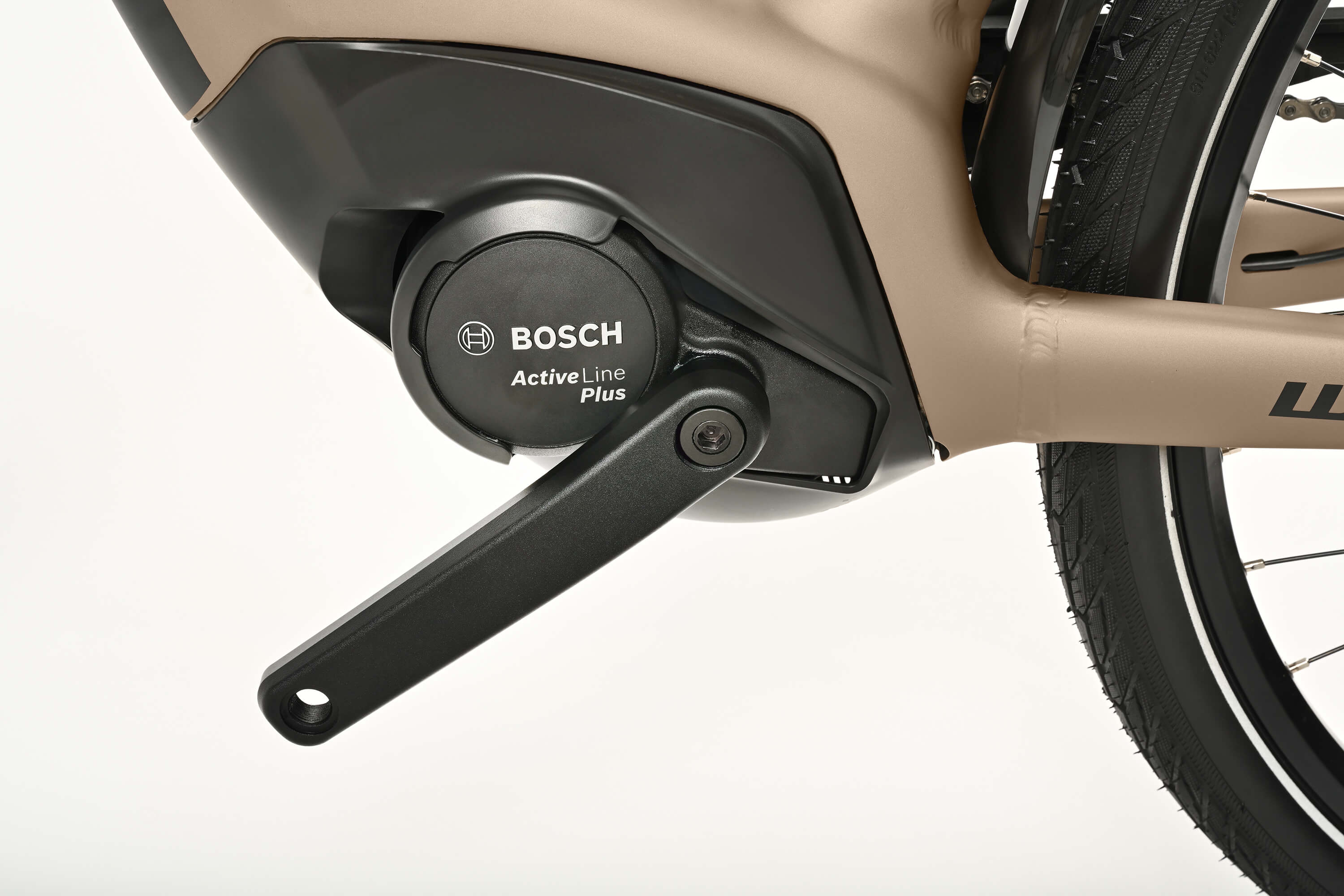

Motor: Bosch Active Line Plus
Frame
Frame
Frame: Low Aluminium Uni
Modular Rail System:

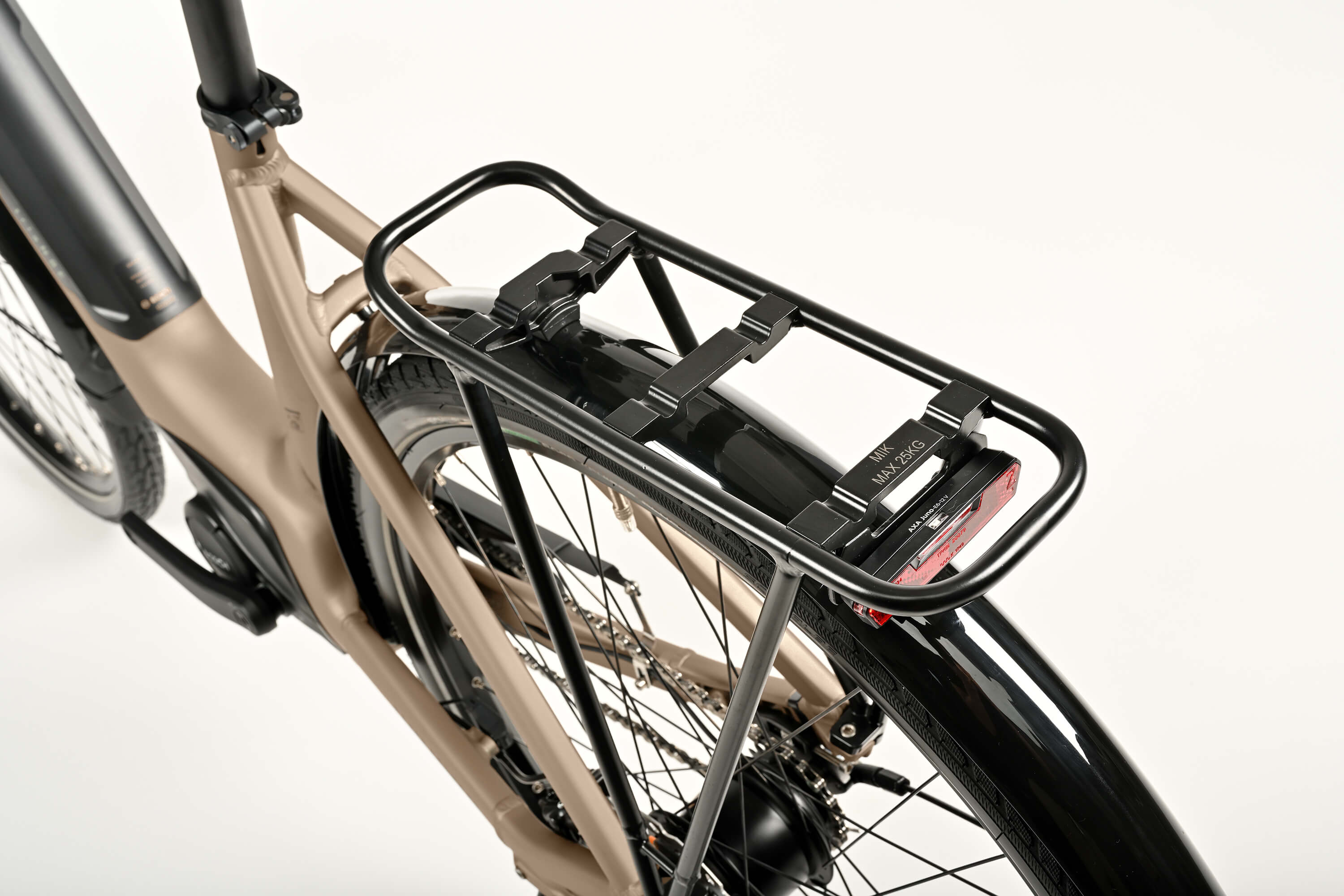

Maximum loadable weight: 130 kg
Drive
Drive
Cassette: Shimano Nexus SM-GEAR sprocket 8s
Chain: KMC Chain X8 8s
Crankset: EC37A-F9-BNI Crankarm 170 mm + Chainring
Derailleur Rear:

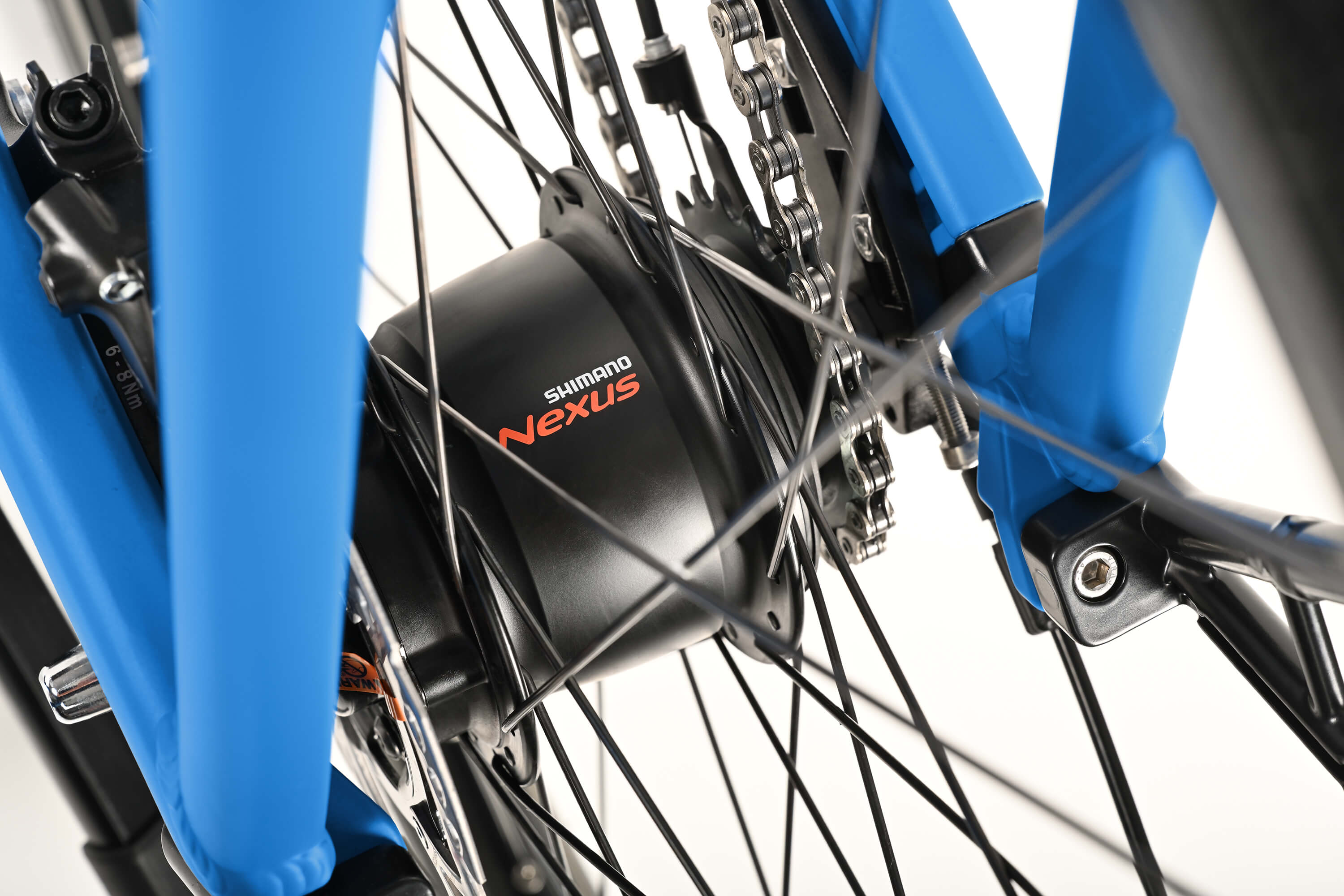

Gear: Shimano Internal Gear Hub Nexus
Number of gears: 8
Shifter Right: Shimano Gripshift Nexus SL-C6000-8R
Suspension
Suspension
Front Fork: Suntour 28 SR NEX-E25 63 mm
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Alivio BR-MT200, 180 mm
Rear Brake: Shimano Hydraulic Disc brake
Headlight: Herrmans Via E-bike System CL3, 6-12V
Rear Light: AXA Via E-bike System Juno Ebike, 6-12V
Brake light:
Grips: Herrmans DD42, Lockable Grips
Handlebar: JD TR25AL Dia. 31.8 mm, Rise: 25 mm
Pedal: VP VPE-461 MTB Alloy Pedal w. Reflector
Saddle: Selle Royal Wave
Seatpost: XLC Suspension SP-DC1, Dia. 31.6 mm, Travel: 300 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Ryde Hollow rim Eco21
Tyre: XLC Traverse CTC 50-622
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
