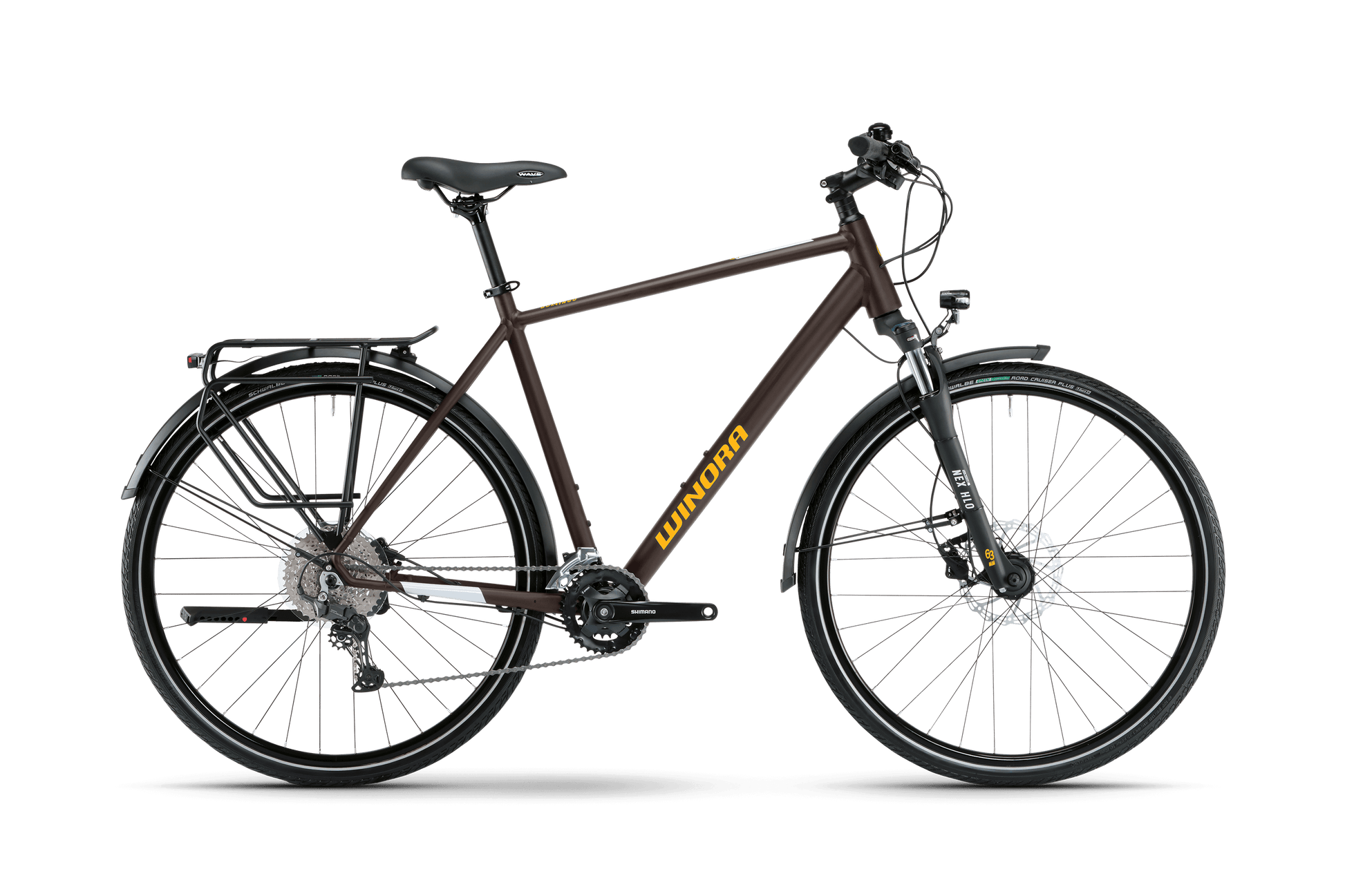

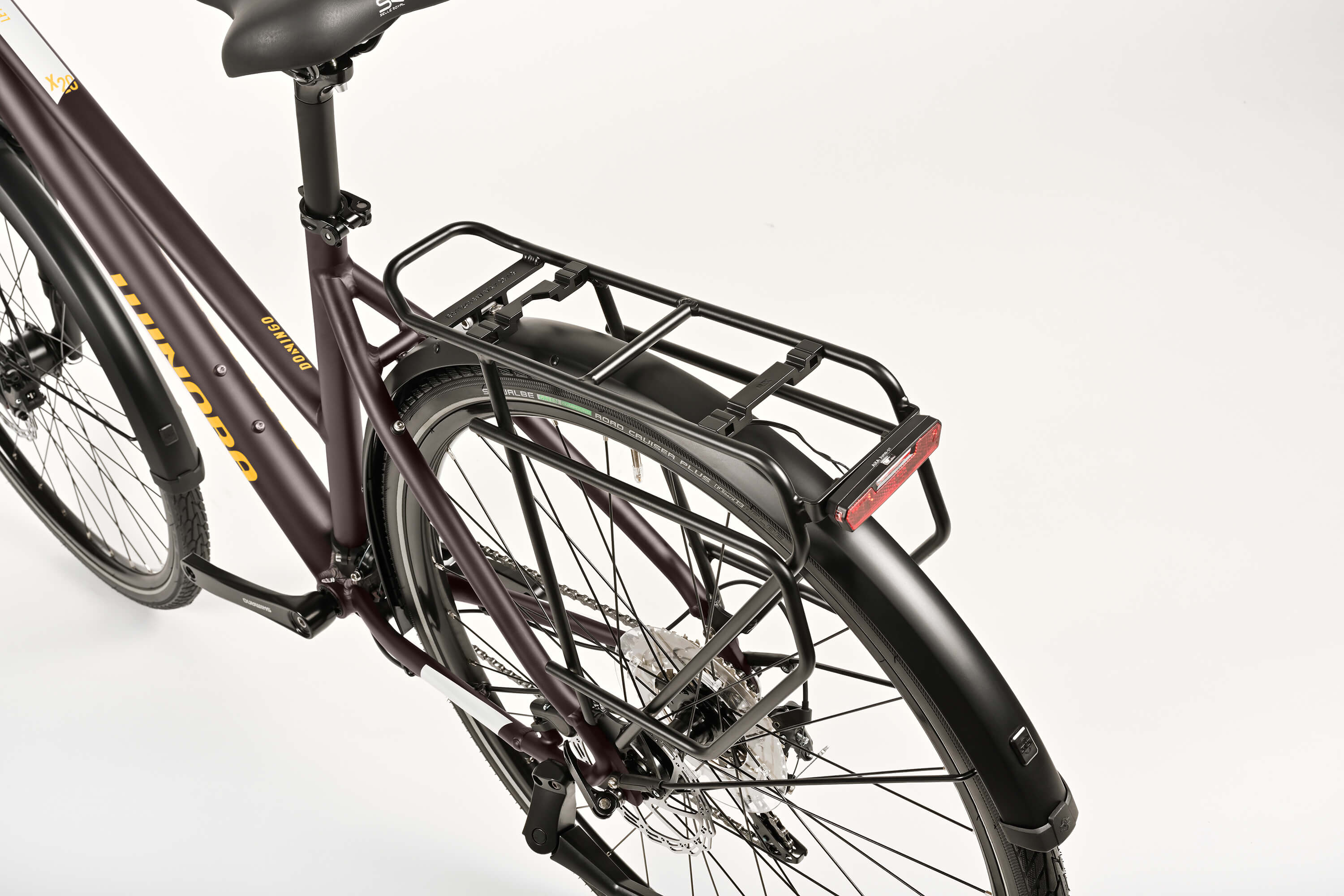

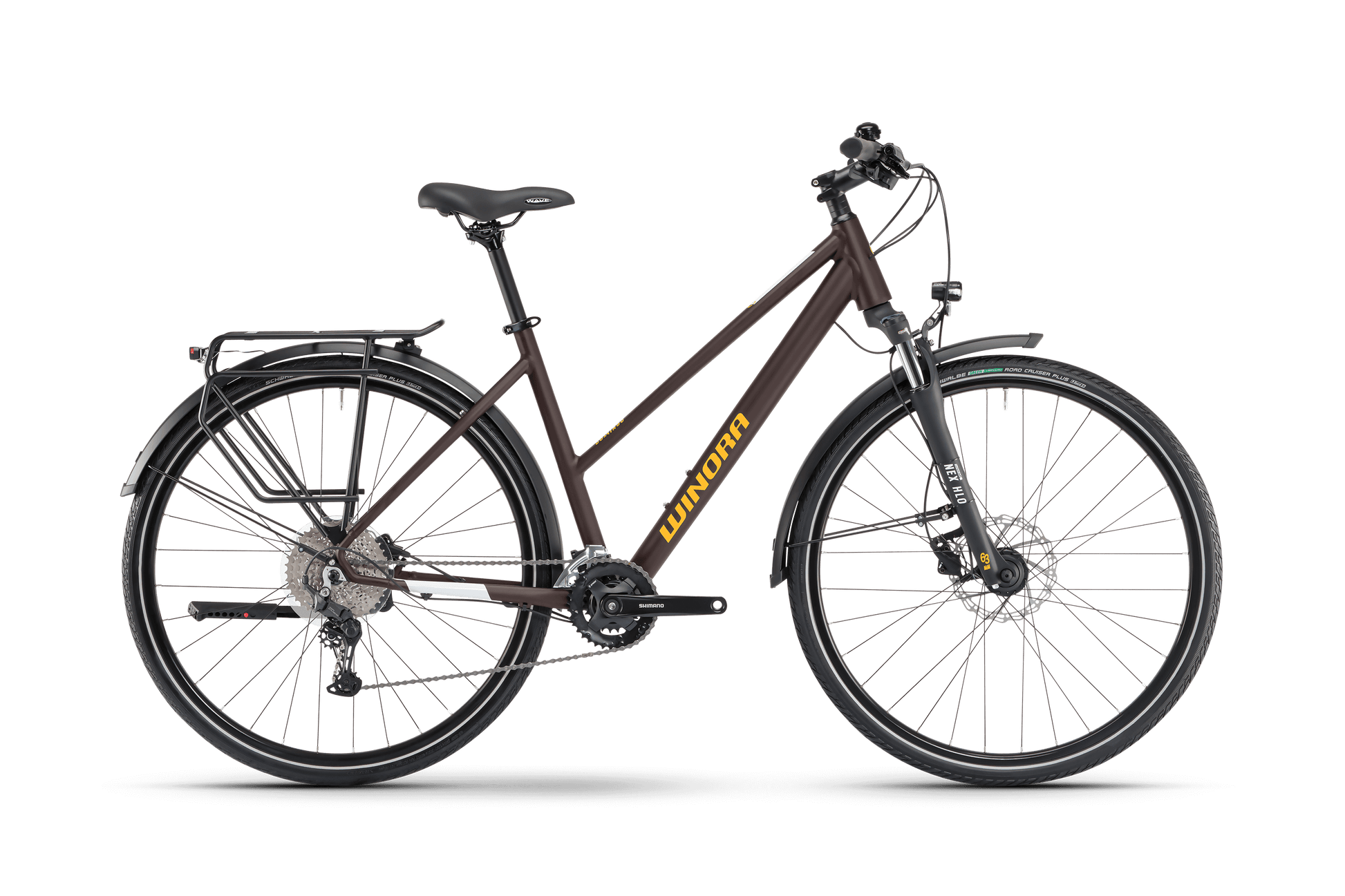

Veloce, leggera e versatile. La Winora Domingo X20 è una bici da turismo sportiva che ti accompagna nelle brevi escursioni con la stessa affidabilità delle lunghe avventure. Questa bici da trekking leggera è perfetta per chi esige il massimo dalla propria bici. Gli pneumatici da 28 pollici scorrono senza intoppi sulla maggior parte delle superfici, mentre la forcella ammortizzata SR Suntour con escursione di 63 mm smorza abilmente le vibrazioni del ciottolato, delle strade sterrate e simili. Grazie ai parafanghi e ai potenti freni a disco, pedalare sotto la pioggia non è un problema, rendendo la Domingo X20 una compagna ideale per tutti quelli che cercano una bici che li porti in modo affidabile al lavoro e poi di nuovo a casa. Pratica: sul portapacchi posteriore c’è spazio in abbondanza per un sacco di cose – dalle valigette e borse da lavoro ai bagagli da viaggio.
Geometria
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 480 mm | 520 mm | 560 mm | 600 mm |
| B: Top Tube legth (mm) | 585 mm | 600 mm | 615 mm | 630 mm |
| C: Head tube length (mm) | 135 mm | 145 mm | 160 mm | 175 mm |
| D: Head Tube Angle | 70.5 degrees | 70.5 degrees | 70.5 degrees | 70.5 degrees |
| E: Seat Tube Angle | 73 degrees | 73 degrees | 73 degrees | 73 degrees |
| F: Chain stay length (mm) | 450 mm | 450 mm | 450 mm | 450 mm |
| G: Wheelbase (mm) | 1086.8 mm | 1102.2 mm | 1117.9 mm | 1133.6 mm |
| H: Stack (mm) | 606 mm | 615 mm | 629 mm | 644 mm |
| I: Reach (mm) | 400 mm | 412 mm | 423 mm | 433 mm |
| J: Stand over height (mm) | 77 mm | 78.5 mm | 81 mm | 85 mm |
| K: Bottom bracket drop (mm) | -60 mm | -60 mm | -60 mm | -60 mm |
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 440 mm | 480 mm | 520 mm | |
| B: Top Tube legth (mm) | 560 mm | 575 mm | 590 mm | |
| C: Head tube length (mm) | 135 mm | 145 mm | 160 mm | |
| D: Head Tube Angle | 70.5 degrees | 70.5 degrees | 70.5 degrees | |
| E: Seat Tube Angle | 73 degrees | 73 degrees | 73 degrees | |
| F: Chain stay length (mm) | 450 mm | 450 mm | 450 mm | |
| G: Wheelbase (mm) | 1061.8 mm | 1077.2 mm | 1092.9 mm | |
| H: Stack (mm) | 606 mm | 615 mm | 629 mm | |
| I: Reach (mm) | 375 mm | 387 mm | 398 mm | |
| J: Stand over height (mm) | 57 mm | 57 mm | 58 mm | |
| K: Bottom bracket drop (mm) | -60 mm | -60 mm | -60 mm |
Specifications
e-System
e-System
Battery:
Charger:
Display:
Motor:
Frame
Frame
Frame: High Aluminium
Modular Rail System:
Maximum loadable weight: 130 kg
Drive
Drive
Cassette: Shimano CS-LG300-10, HG
Chain: Shimano Chain Cues LG500
Crankset: Cues FC-U40102
Derailleur Rear: Shimano Cues RD-U6020, 20s
Gear: Shimano Derailleur CUES
Number of gears: 18
Shifter Right: Shimano Triggershift Cues SL-U6000-11R
Suspension
Suspension

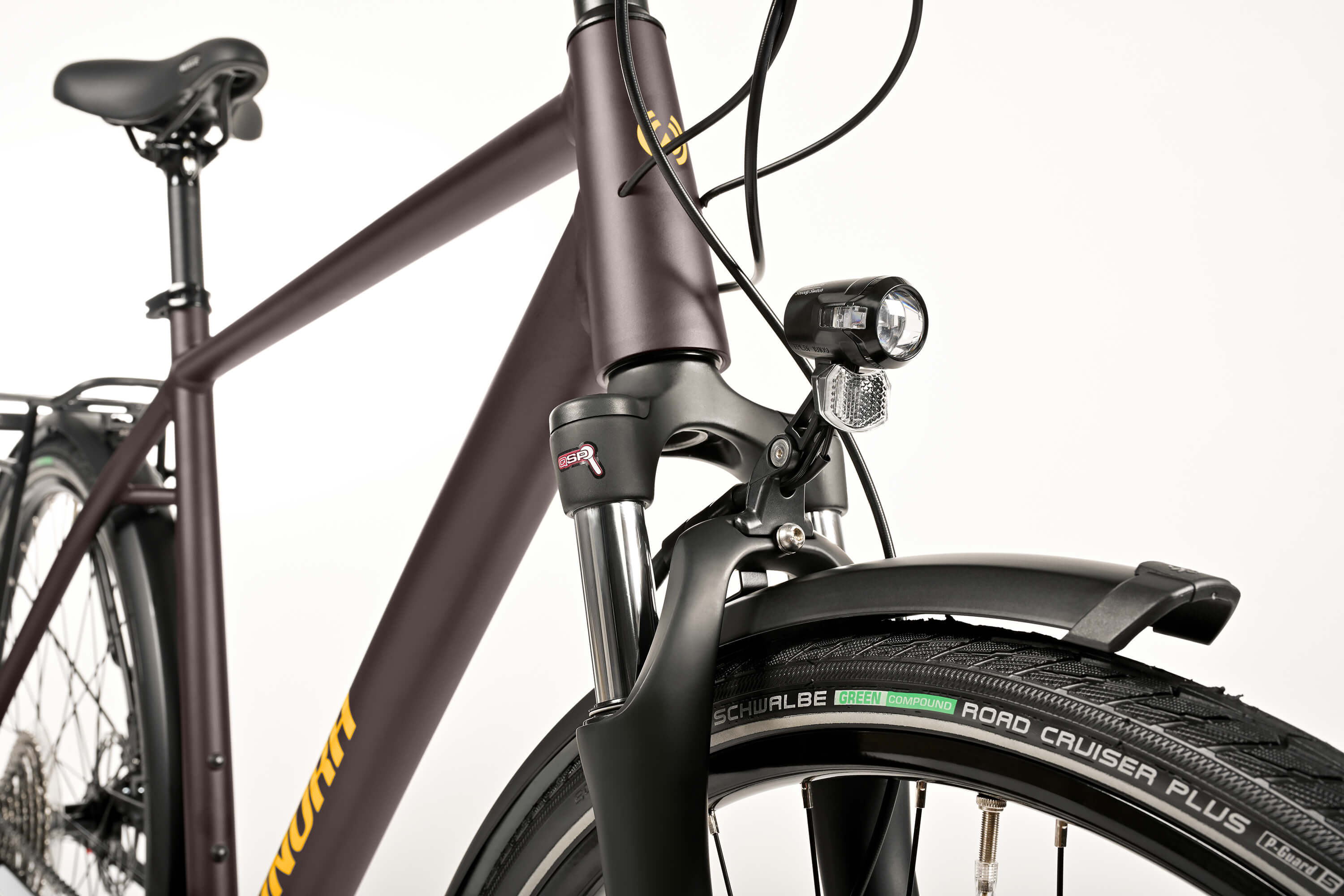

Front Fork: Suntour NEX HLO 63 mm
Rear Travel:
Shock:
Travel:
Components
Components

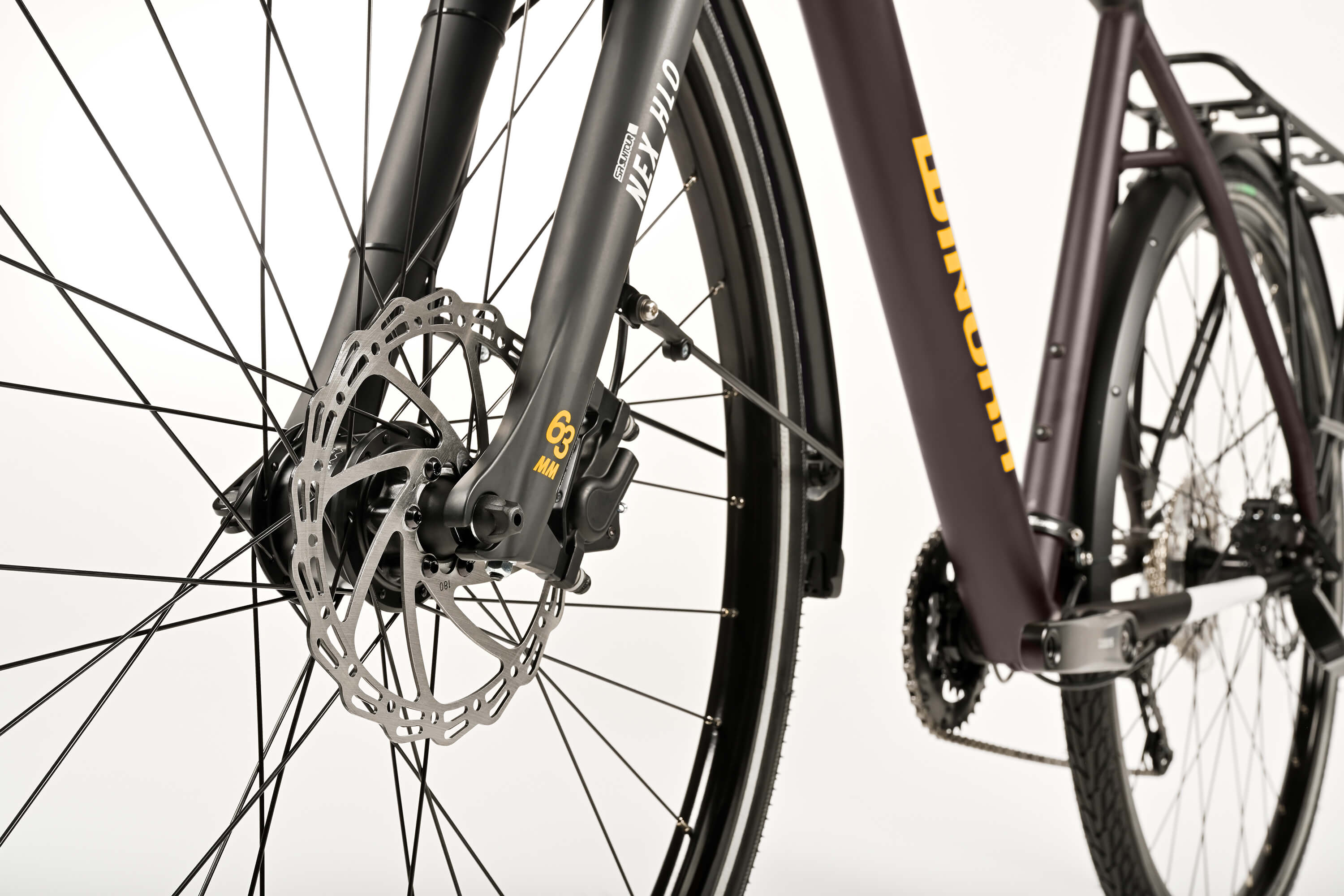

Front Brake: Shimano Hydraulic Disc brake MT200, 180 mm

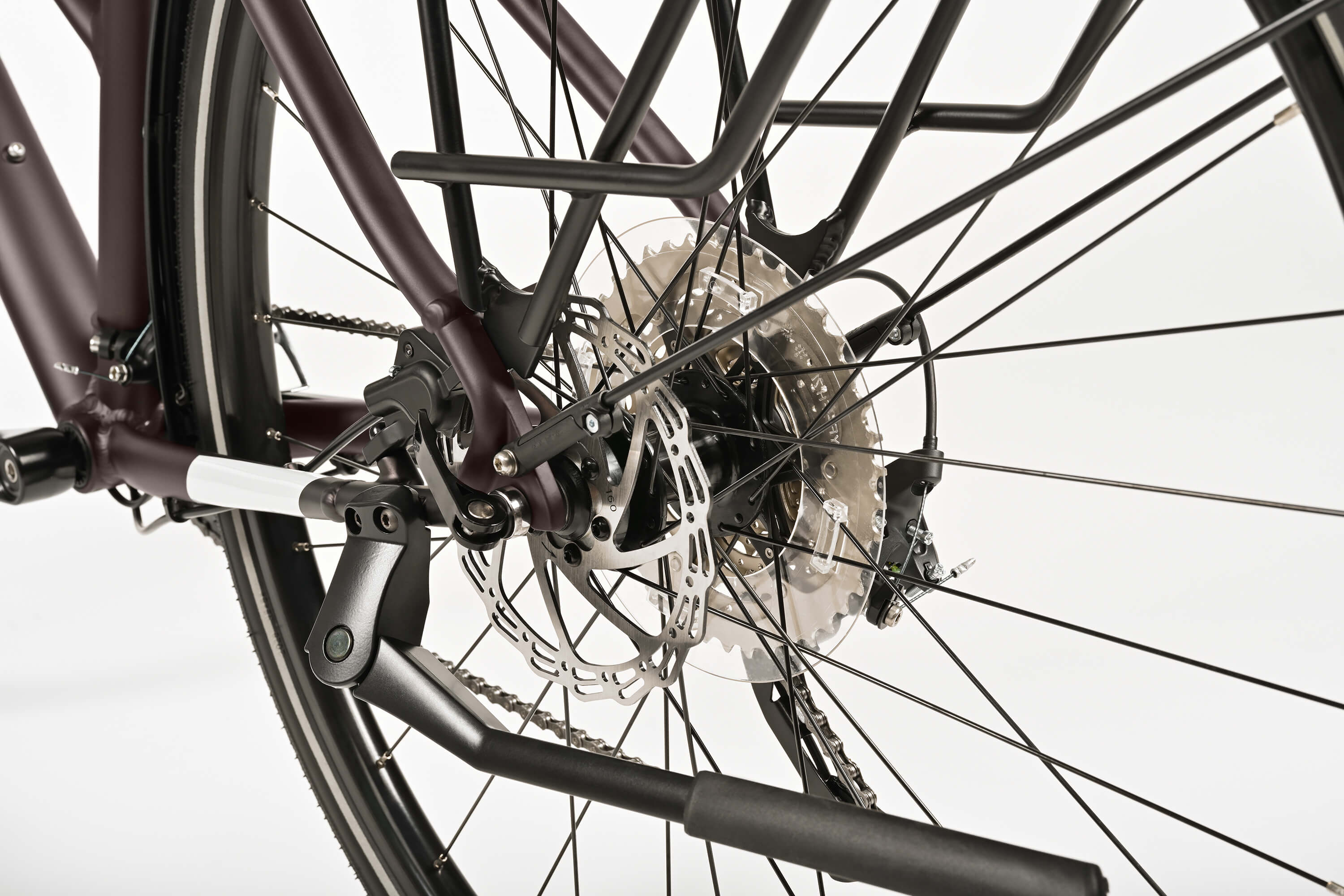

Rear Brake: Shimano Hydraulic Disc brake
Headlight: AXA Compactline, 35 lux
Rear Light: AXA Juno
Brake light:
Grips: XLC

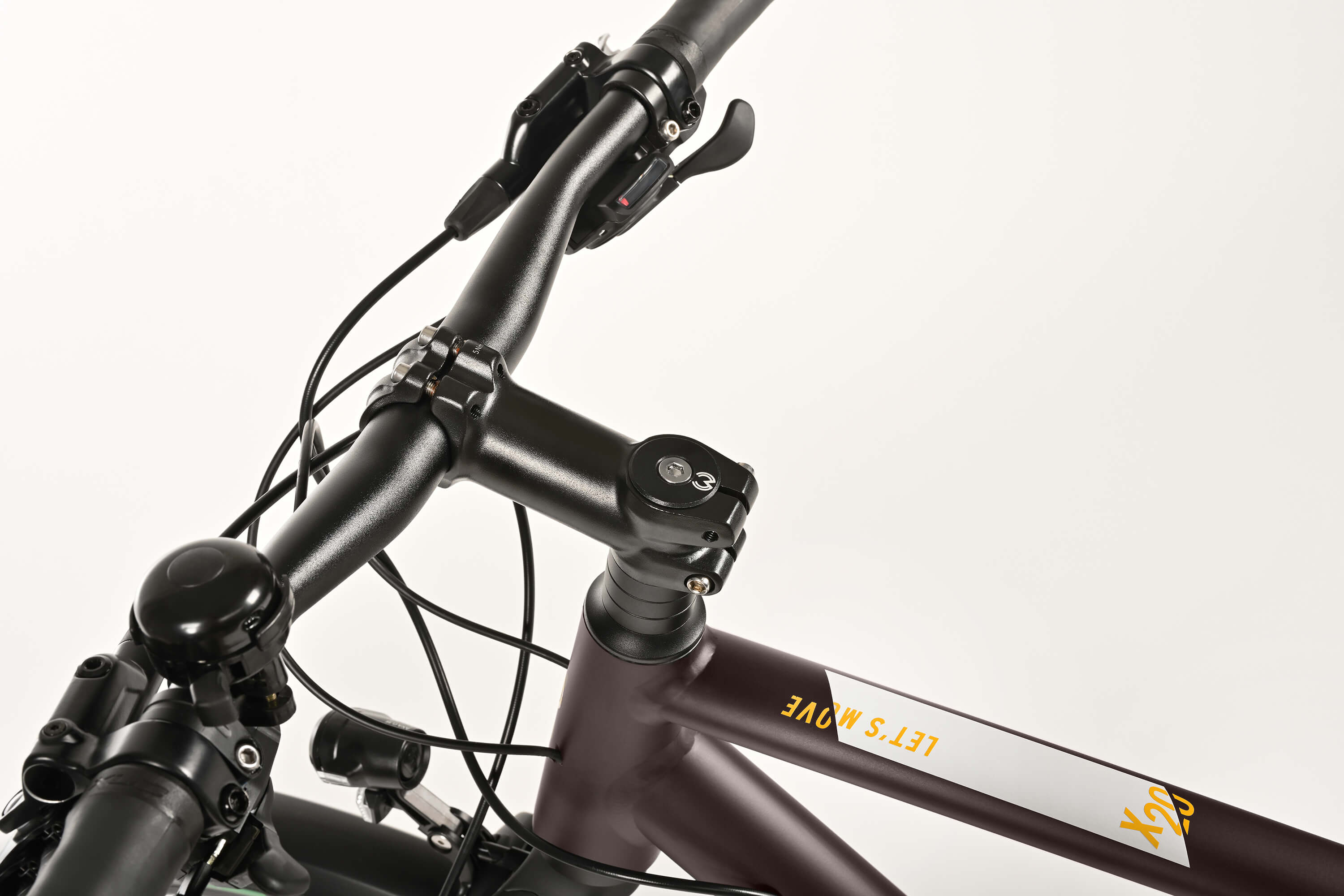

Handlebar: Winora Ergobar, oversize
Pedal:

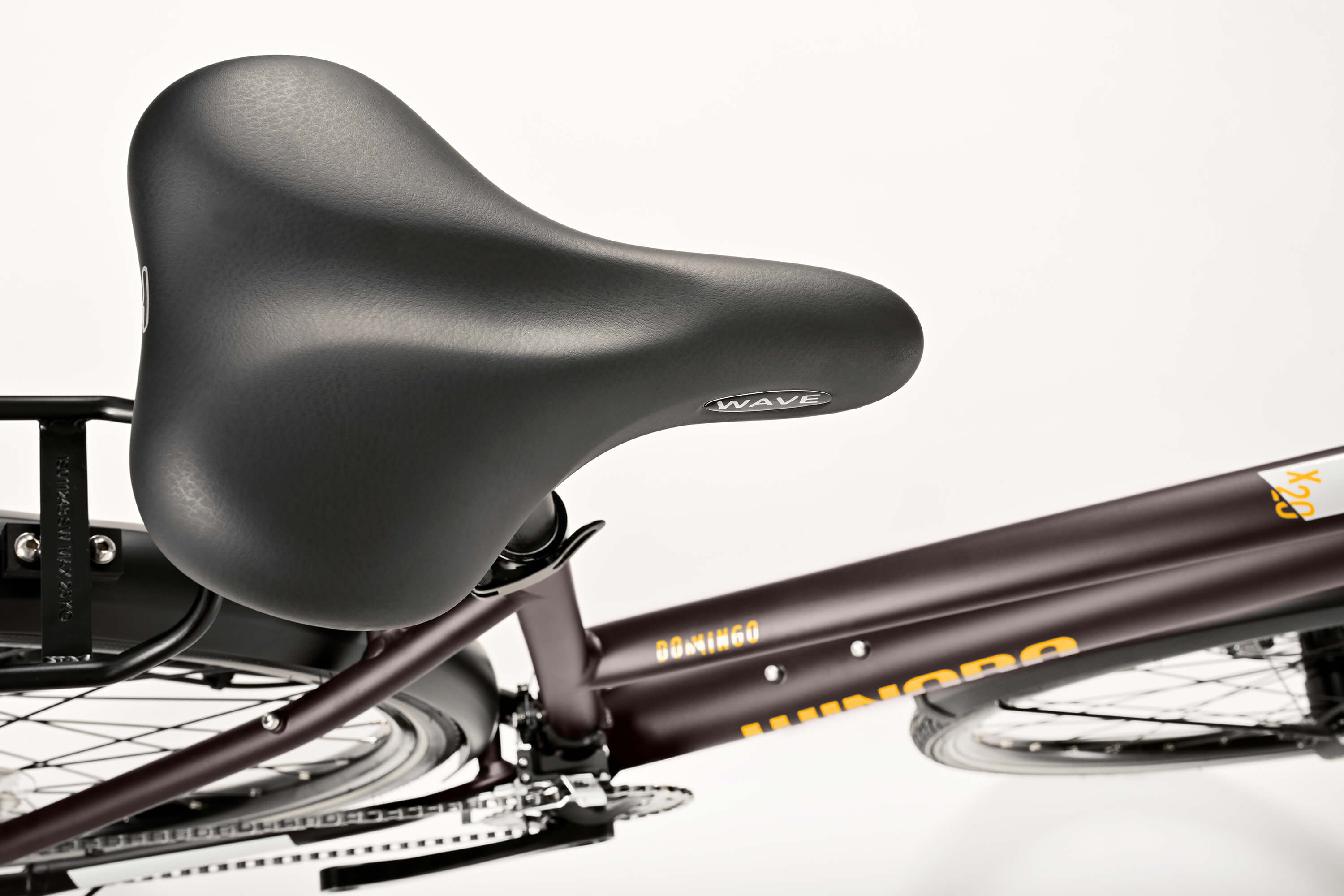

Saddle: Selle Royal Wave
Seatpost: Winora Non Suspension
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Rodi Hollow rim alu

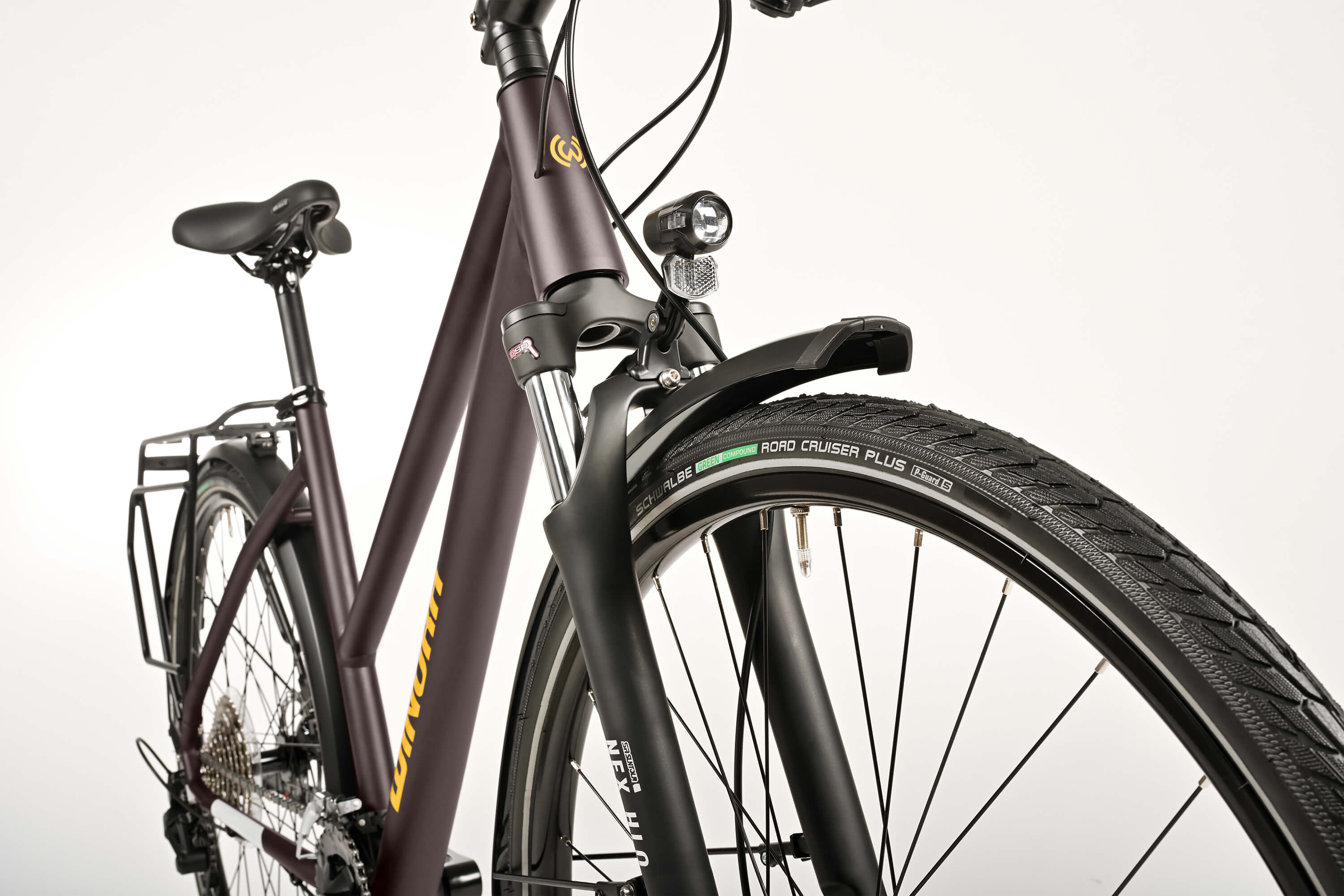

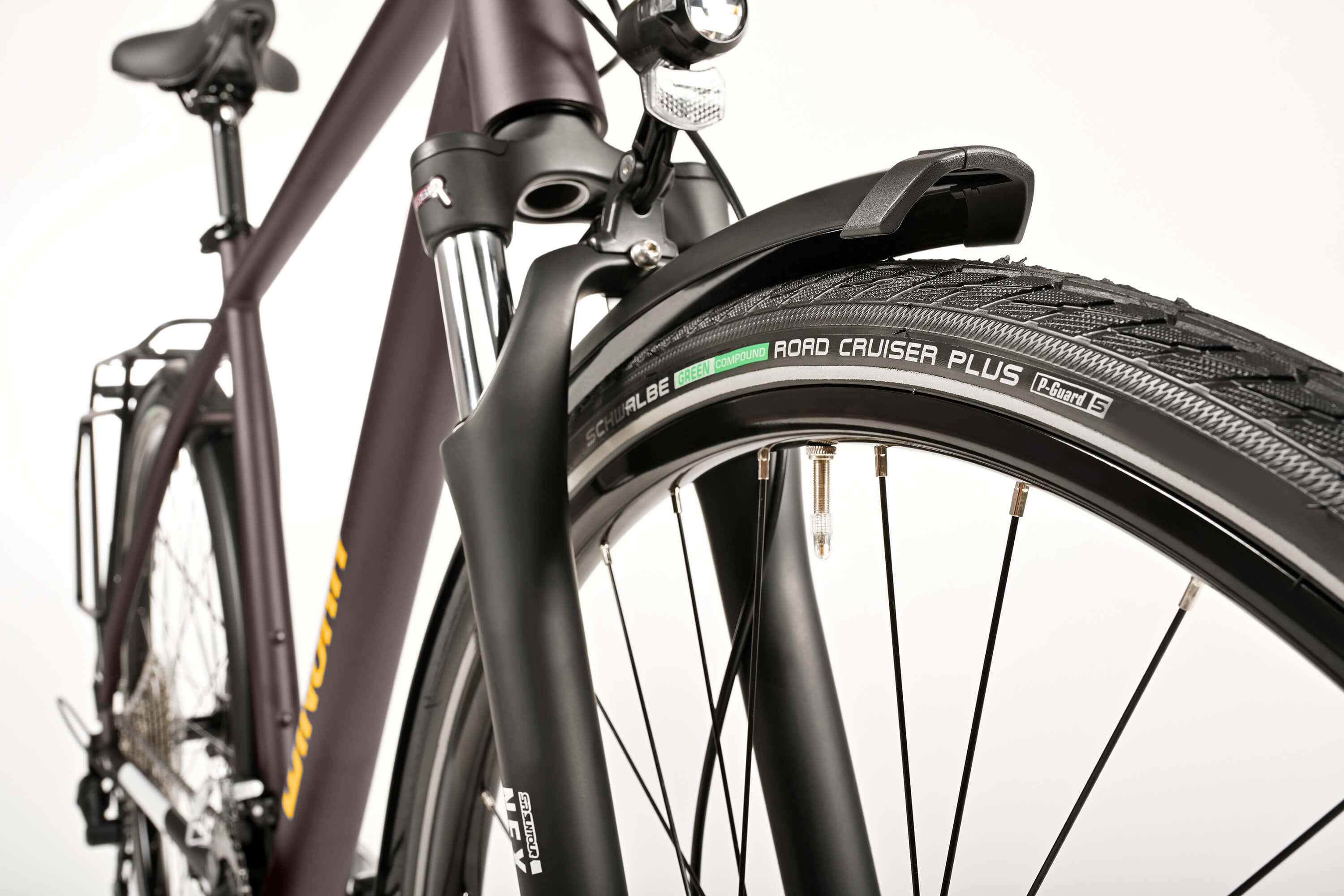

Tyre: Schwalbe Road Cruiser 42-622
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
