Mahle
Description
Description

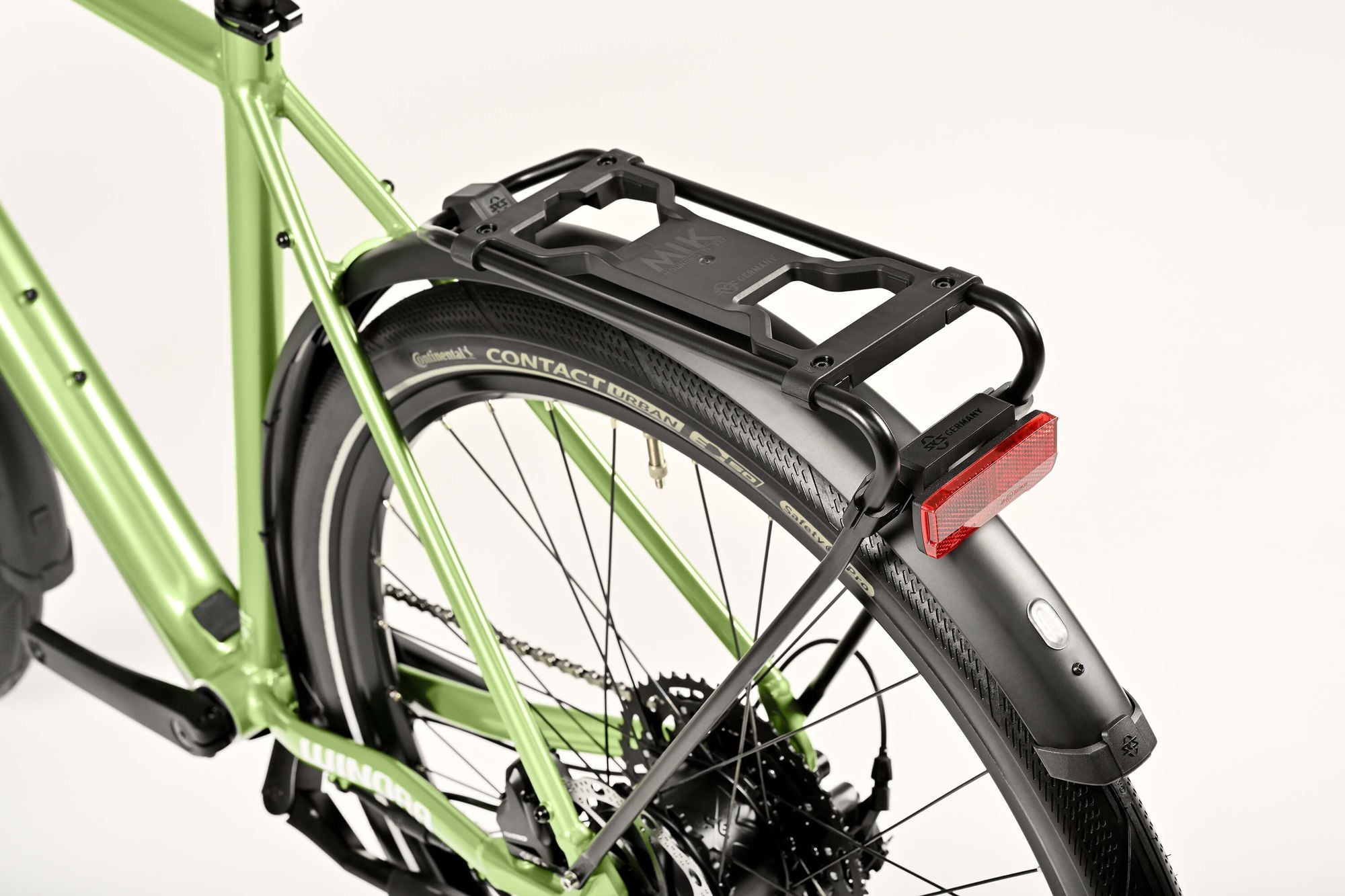

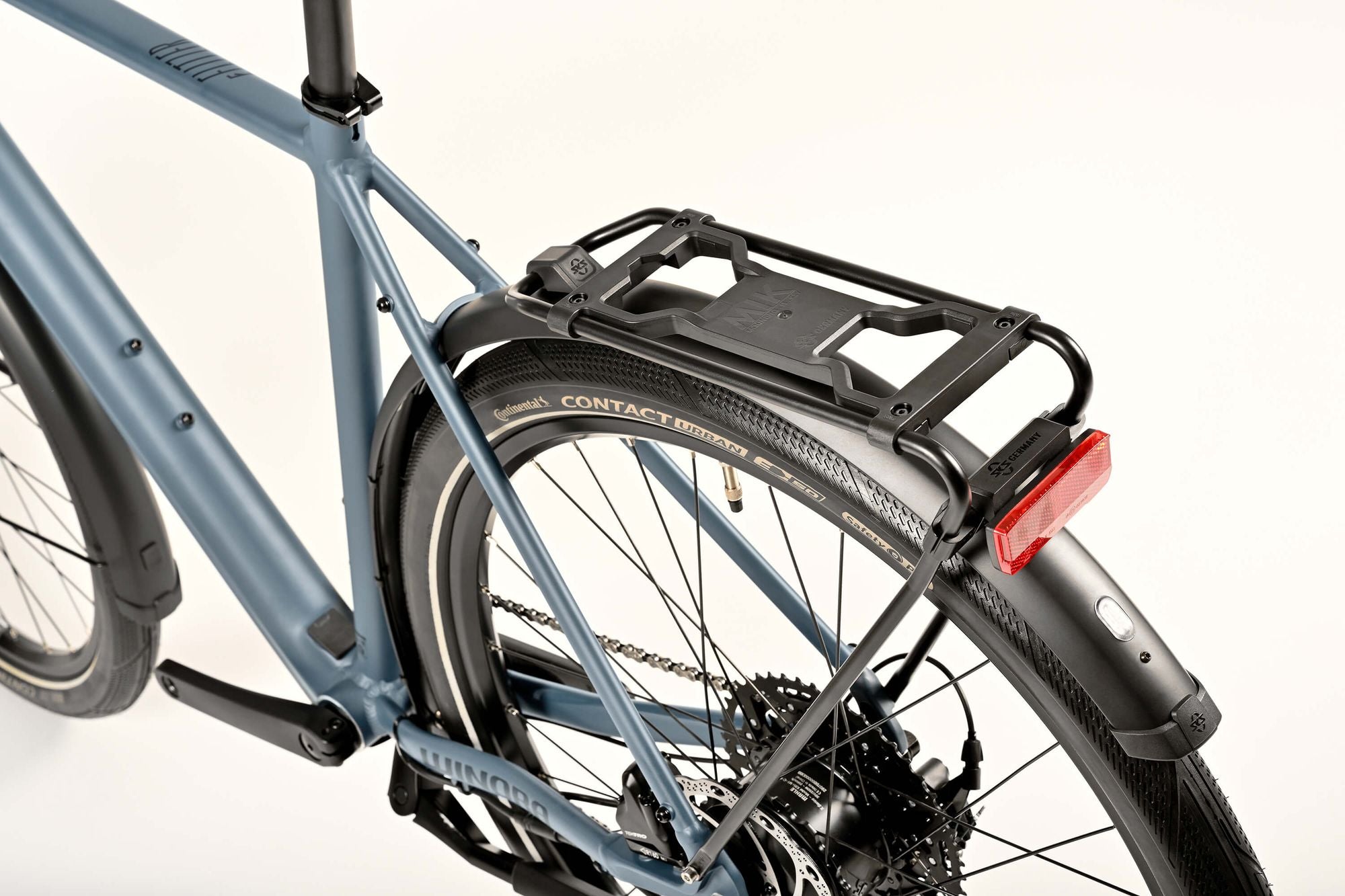

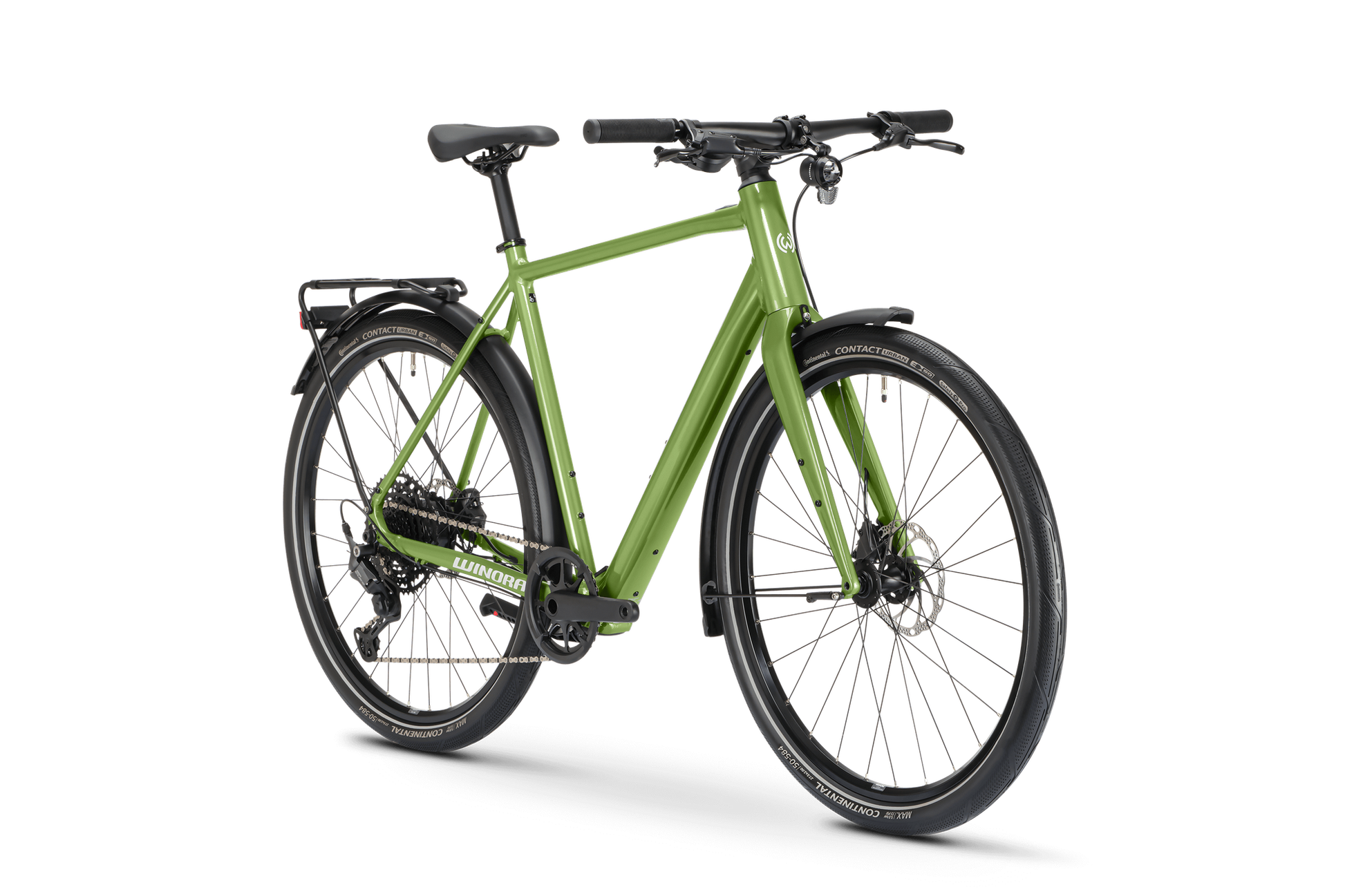

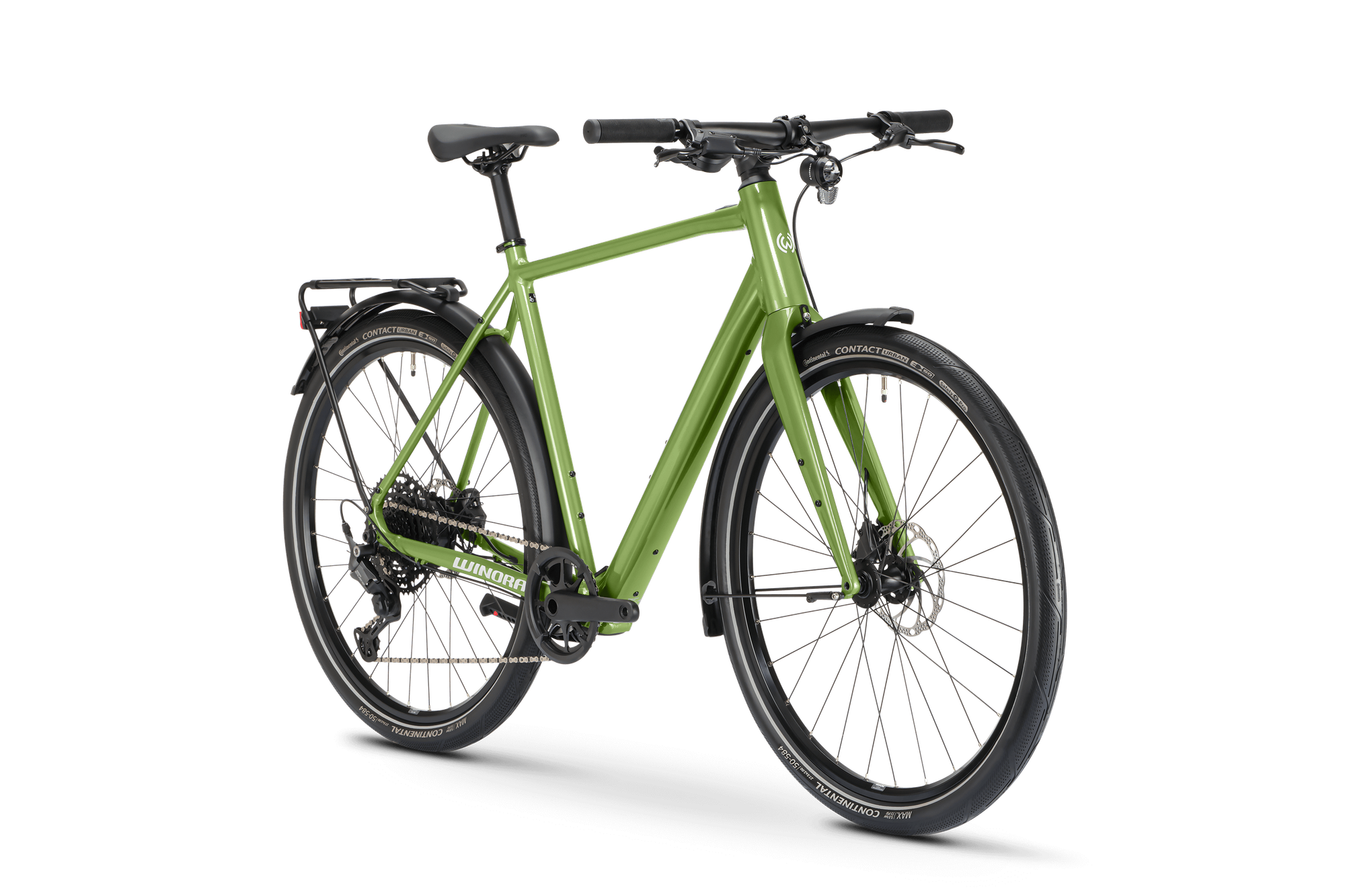

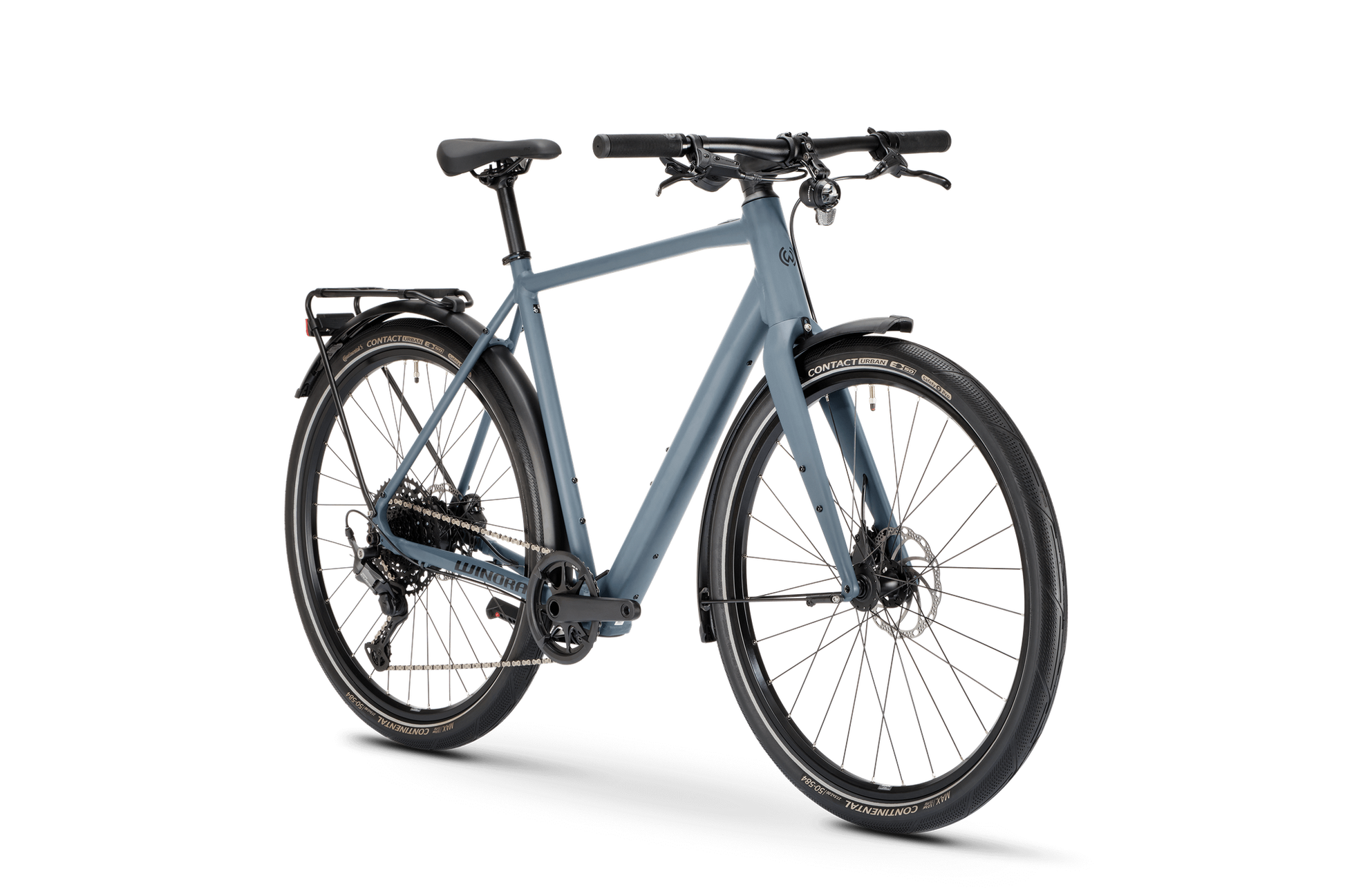

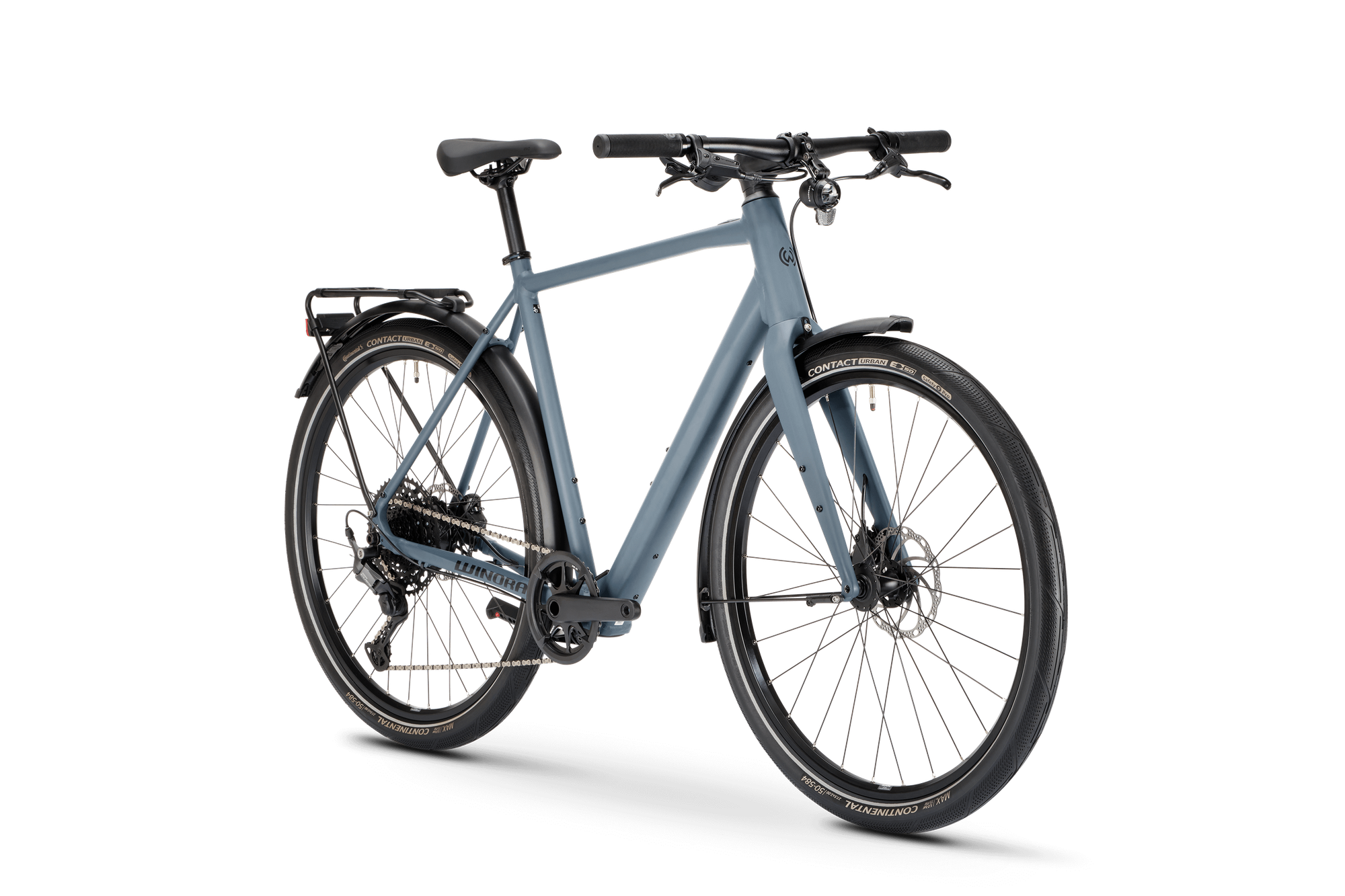

Commuting can be so much fun. The Winora E-Flitzer is a commuter eBike that lets you ride fast, light and with maximum fun. Weighing just 16.5kg, the light assist bike will impress with its sporty yet elegant look, which is given a very special character by the carbon fork. The X35+ rear wheel hub motor from Mahle SmartBike Systems provides propulsion and will perfectly support you in every riding situation. -quality shifting components from Shimano and hydraulic disc brakes also guarantee smooth and safe riding pleasure. If you ever want to take more with you, the integrated MIK system luggage rack offers storage space for a briefcase and the like. In short: the E-Flitzer is an eBike that will make you smile at any time, even during rush hour.
Géométrie
| Component | XS | S | M | L |
|---|---|---|---|---|
| A: Seat tube length (mm) | 420 mm | 460 mm | 500 mm | 550 mm |
| B: Top Tube legth (mm) | 525 mm | 544 mm | 561 mm | 579 mm |
| C: Head tube length (mm) | 90 mm | 120 mm | 150 mm | 180 mm |
| D: Head Tube Angle | 70 degrees | 70.5 degrees | 71 degrees | 71 degrees |
| E: Seat Tube Angle | 73 degrees | 73 degrees | 72.5 degrees | 72.5 degrees |
| F: Chain stay length (mm) | 435 mm | 435 mm | 435 mm | 435 mm |
| G: Wheelbase (mm) | 1004 mm | 1020 mm | 1028 mm | 1047 mm |
| H: Stack (mm) | 517 mm | 547 mm | 578 mm | 606 mm |
| I: Reach (mm) | 367 mm | 377 mm | 379 mm | 388 mm |
| K: Bottom bracket drop (mm) | -75 mm | -75 mm | -75 mm | -75 mm |
Caractéristiques
Système électronique
Système électronique
Battery: Mahle Li-ION InTube 250 Wh
Charger: Mahle X35 Charger 4A
Display: Mahle iWoc ONE
Motor: Mahle
Cadre
Cadre
Frame: High Aluminium Uni
Modular Rail System:
Maximum loadable weight: 115 kg
Conduite
Conduite
Cassette: Shimano Cues CS-LG300-10, HG
Chain: Shimano Chain Cues CN-LG500 10s
Crankset: Alloy Crankset 160 mm + direct mount chainring

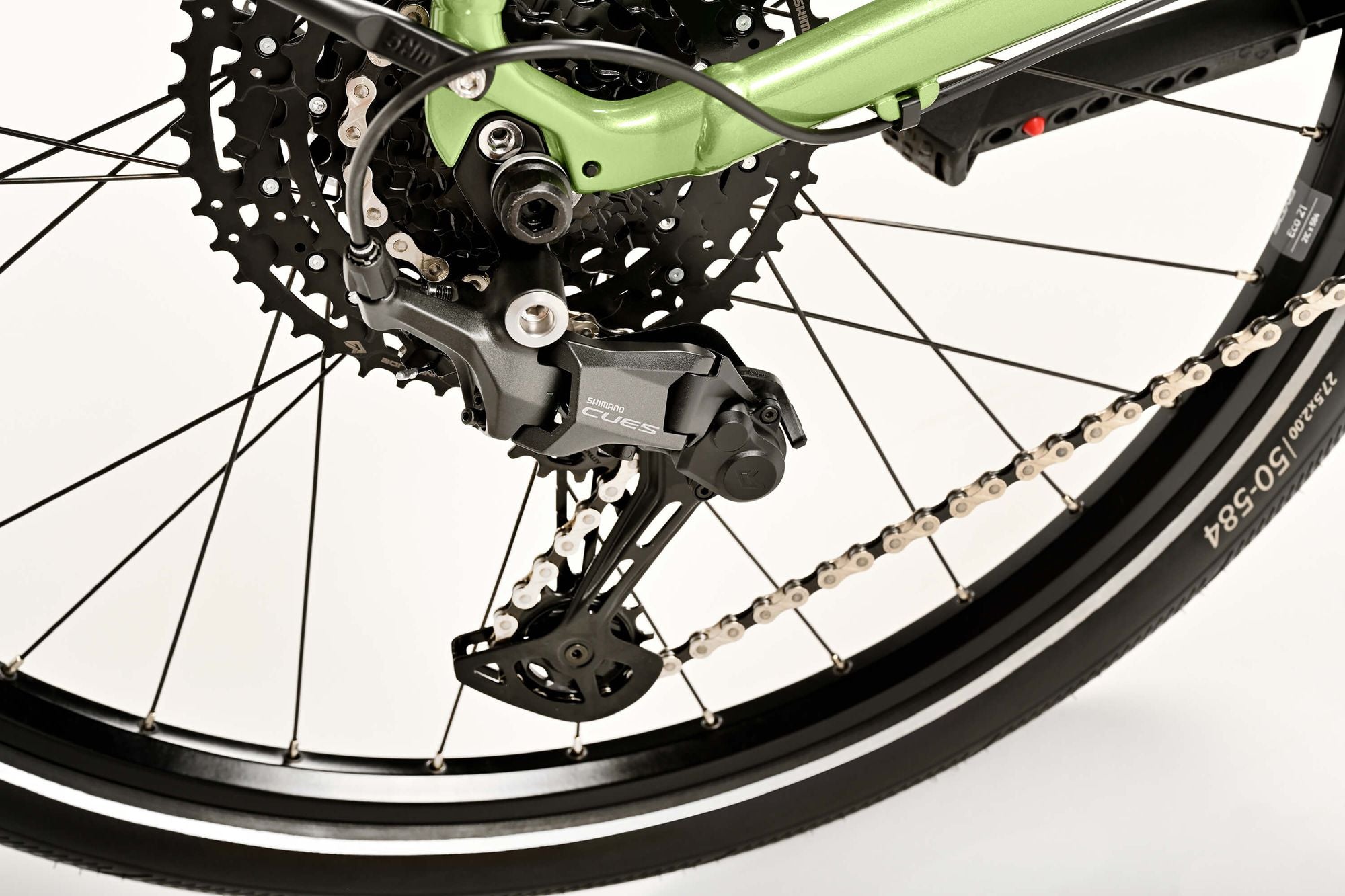

Derailleur Rear: Shimano Cues RD-U6000, 10s, Shadow+
Gear: Shimano Internal Gear Hub CUES
Number of gears: 10
Shifter Right: Shimano Triggershift Cues SL-U6000-10R, Rapidfire+
Suspension
Suspension
Front Fork: Winora Carbon Rigid Fork
Rear Travel:
Shock:
Travel:
Composants
Composants

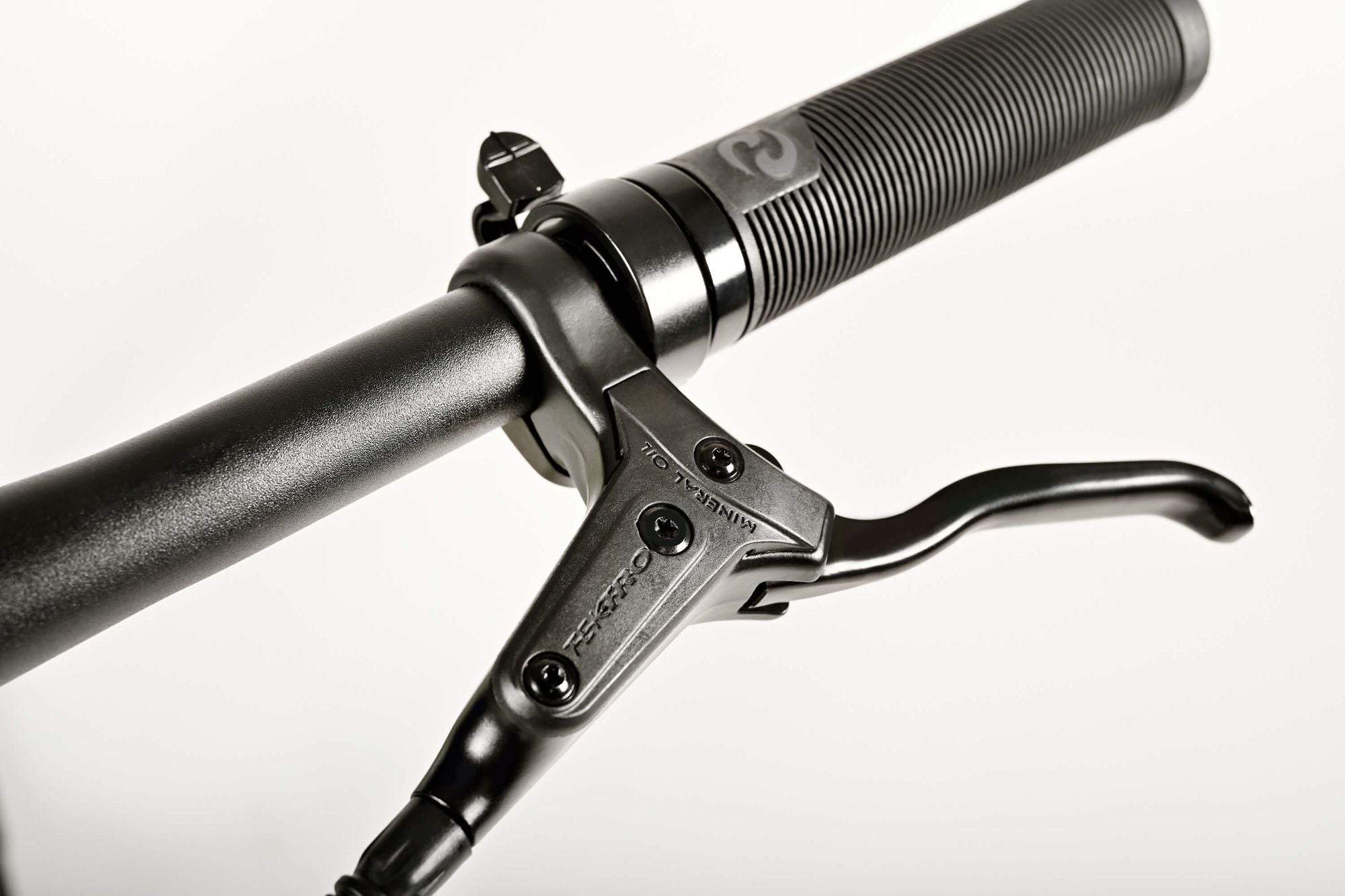

Front Brake: Tektro Hydraulic Disc brake HD-R280, 160 mm

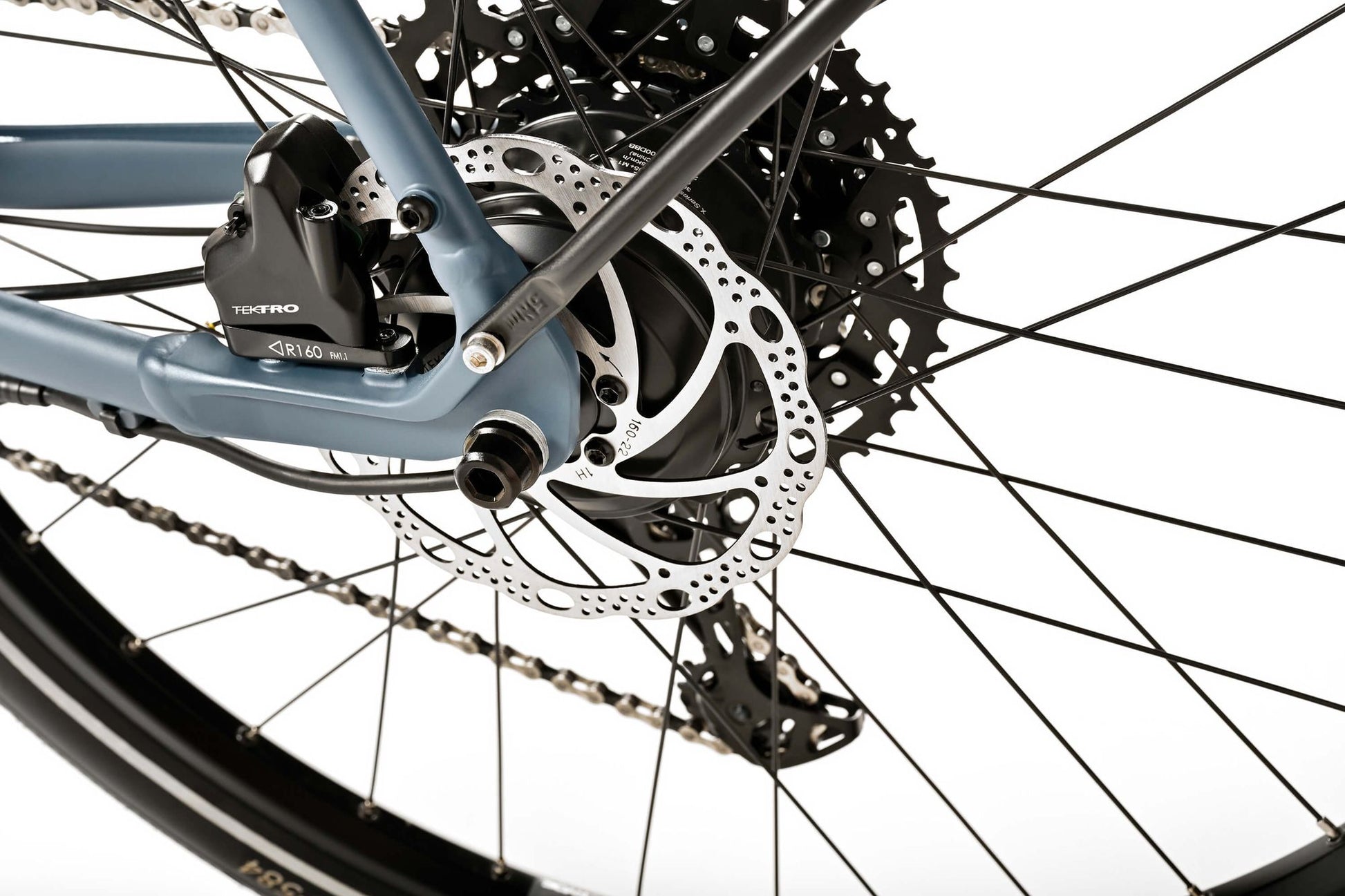

Rear Brake: Tektro Hydraulic Disc brake

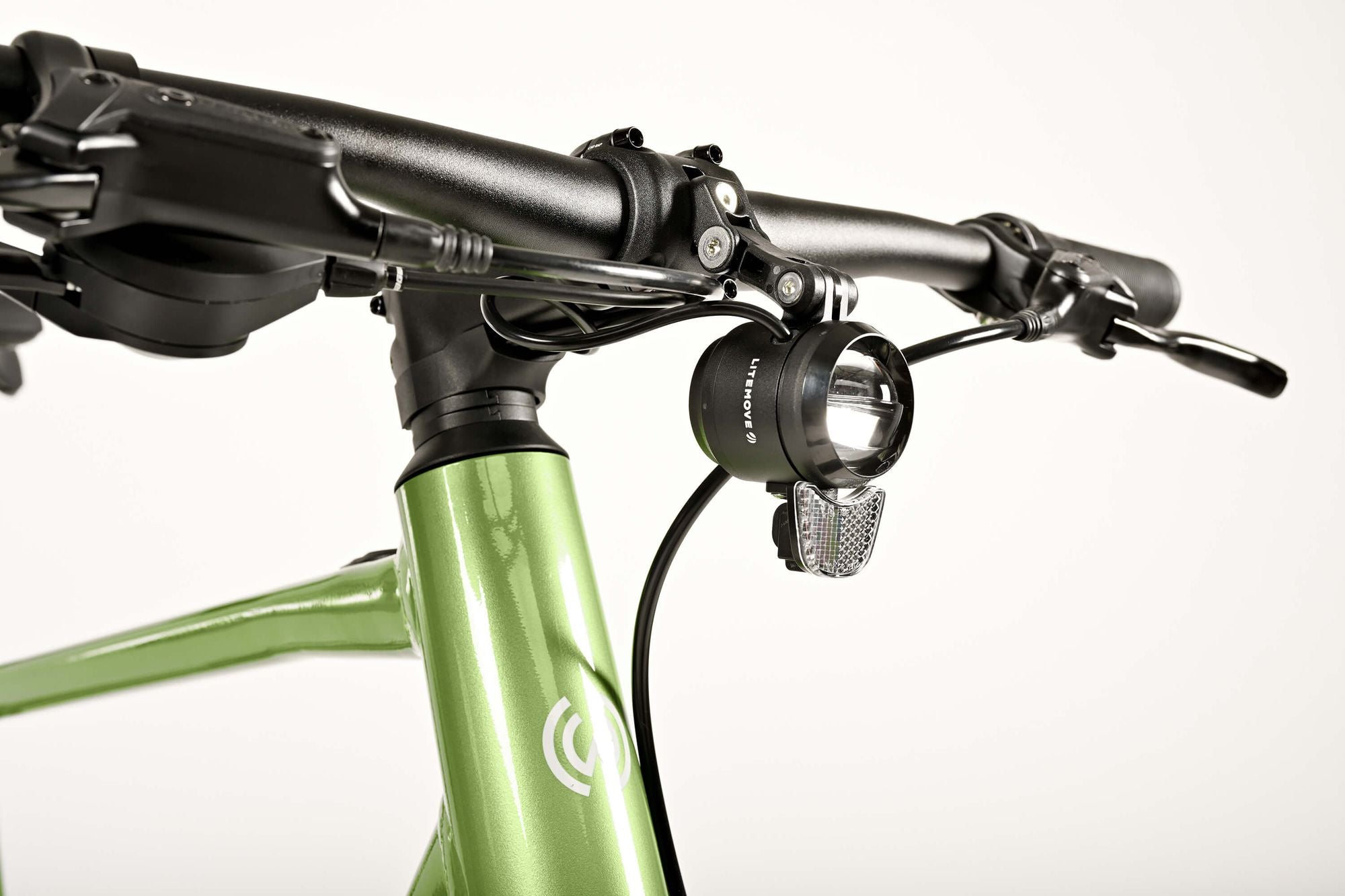

Headlight: Litemove Via E-bike System SE-110, 8-16V
Rear Light: Busch & Müller Via E-bike System Xeltec 6V, LED-rear light in the mudguard
Brake light:
Grips: Herrmans DD41B Rib Single Lock Grips

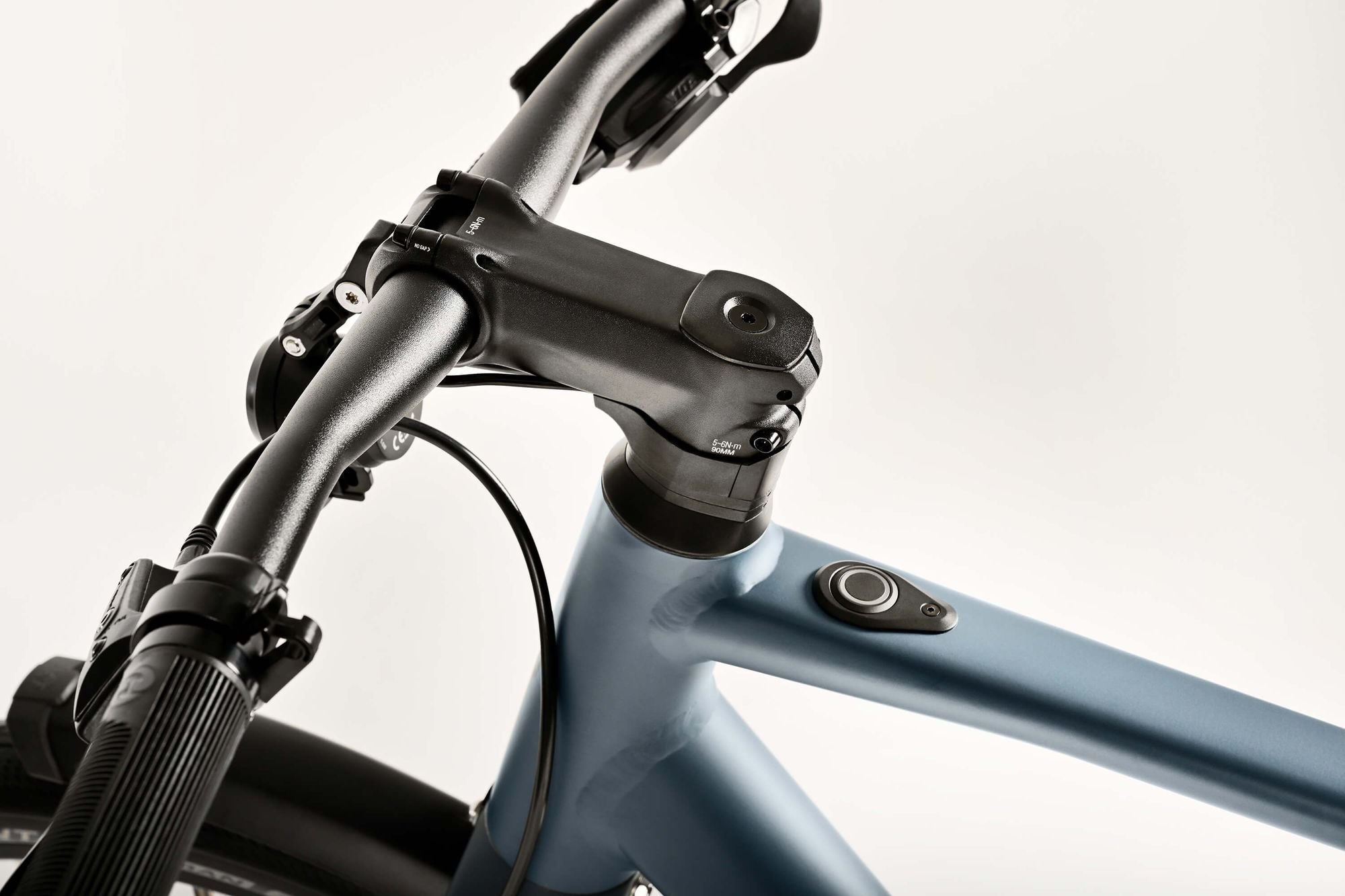

Handlebar: JD MTB11AFS Dia. 31.8 mm
Pedal: Marwi SP-880 MTB Pedal w. Reflector

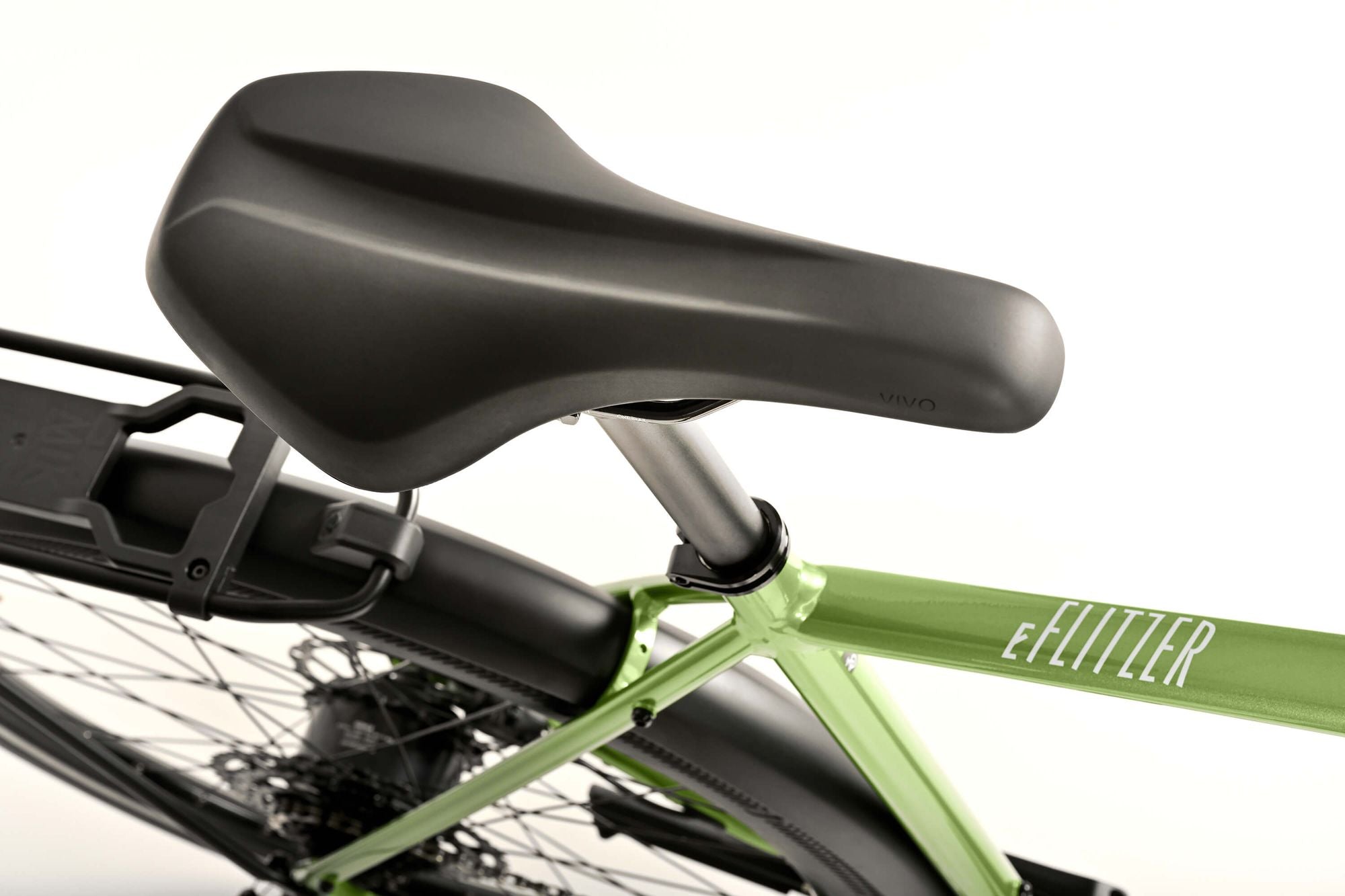

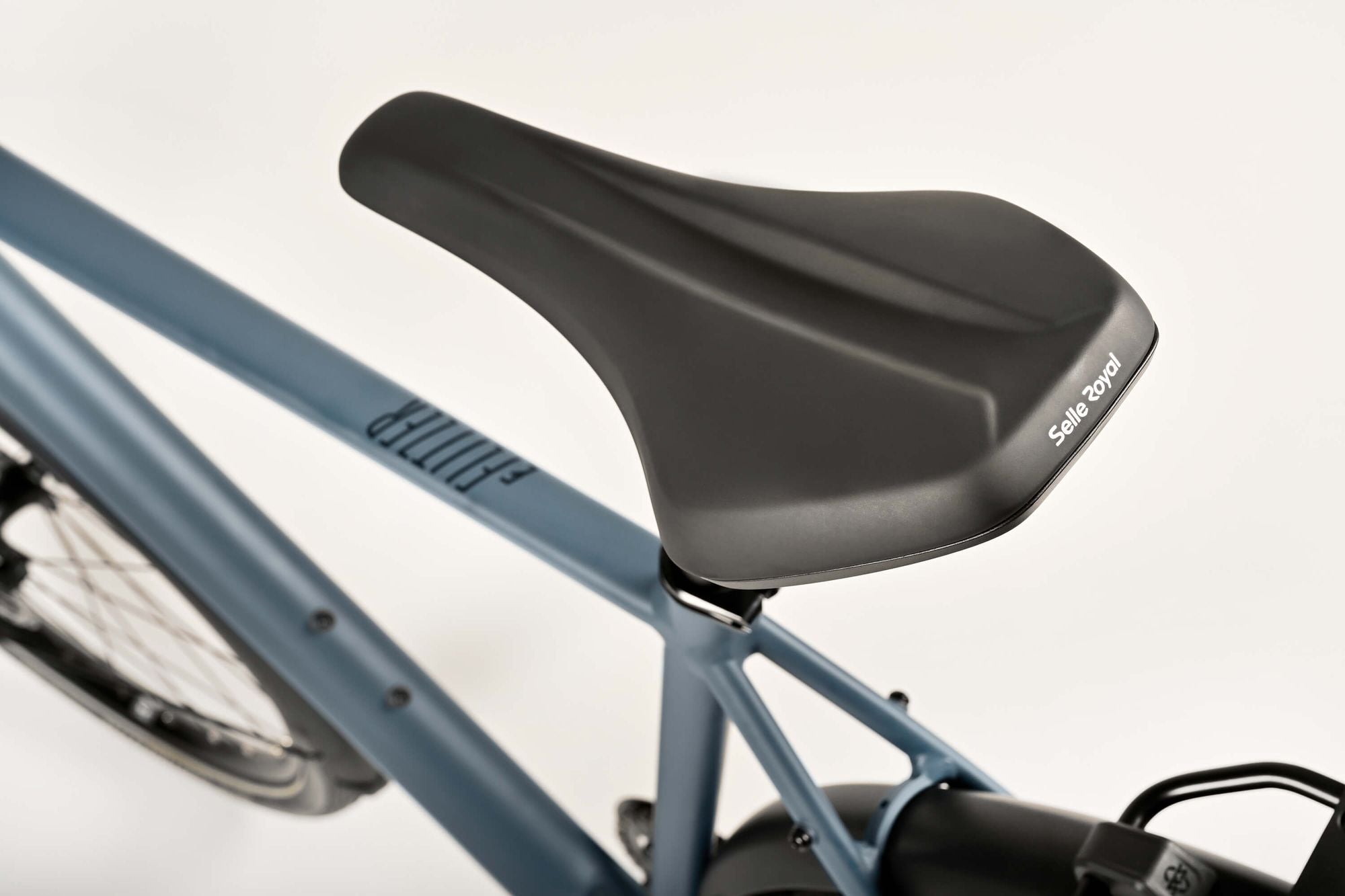

Saddle: Selle Royal Vivo
Seatpost: JD Non Suspension SP37.1 , Dia. 27.2 mm, Travel: 350 mm
Roues
Roues
Front wheel set:
Rear wheel set:
Rim: Ryde Hollow rim Eco21

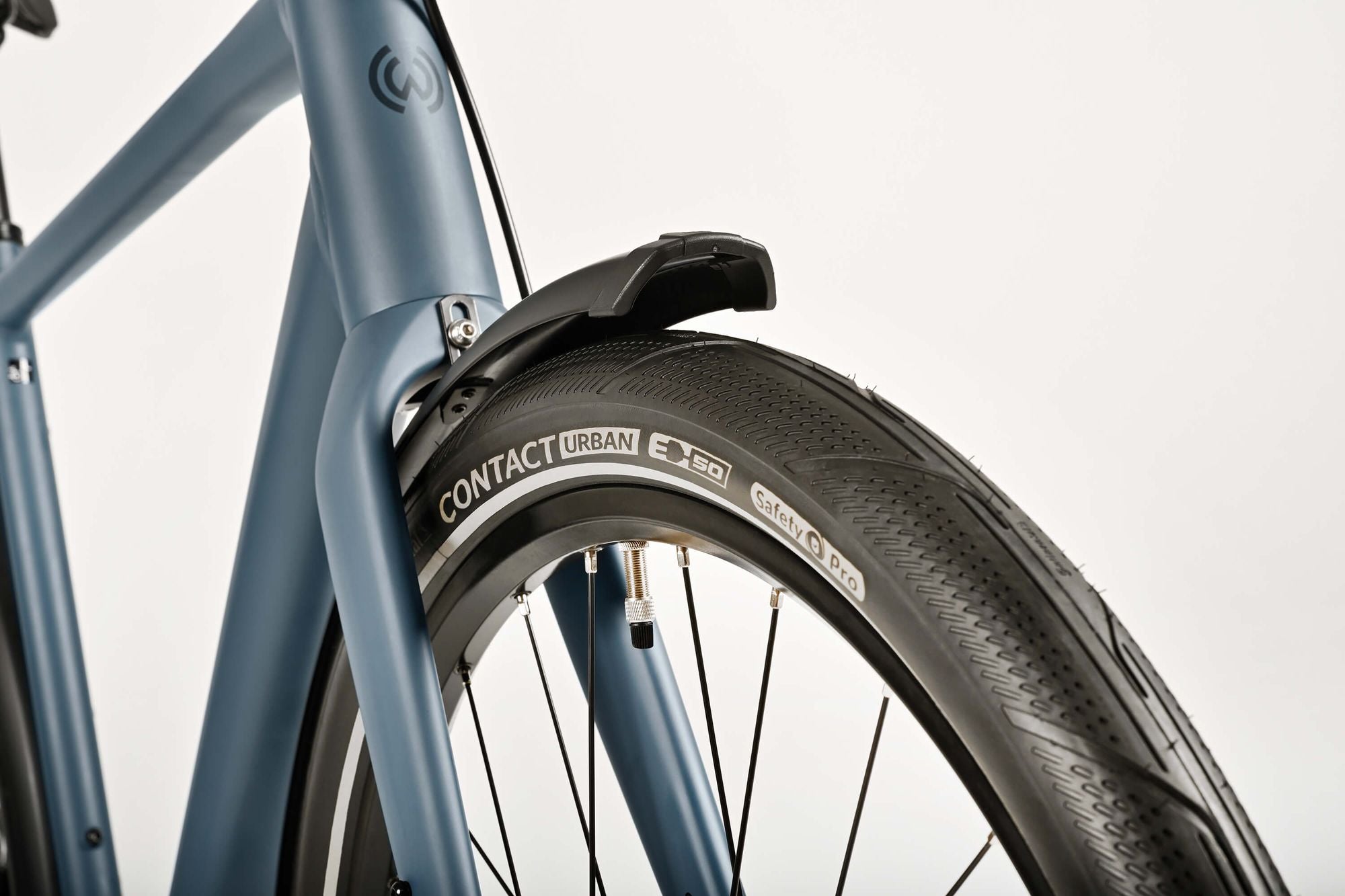

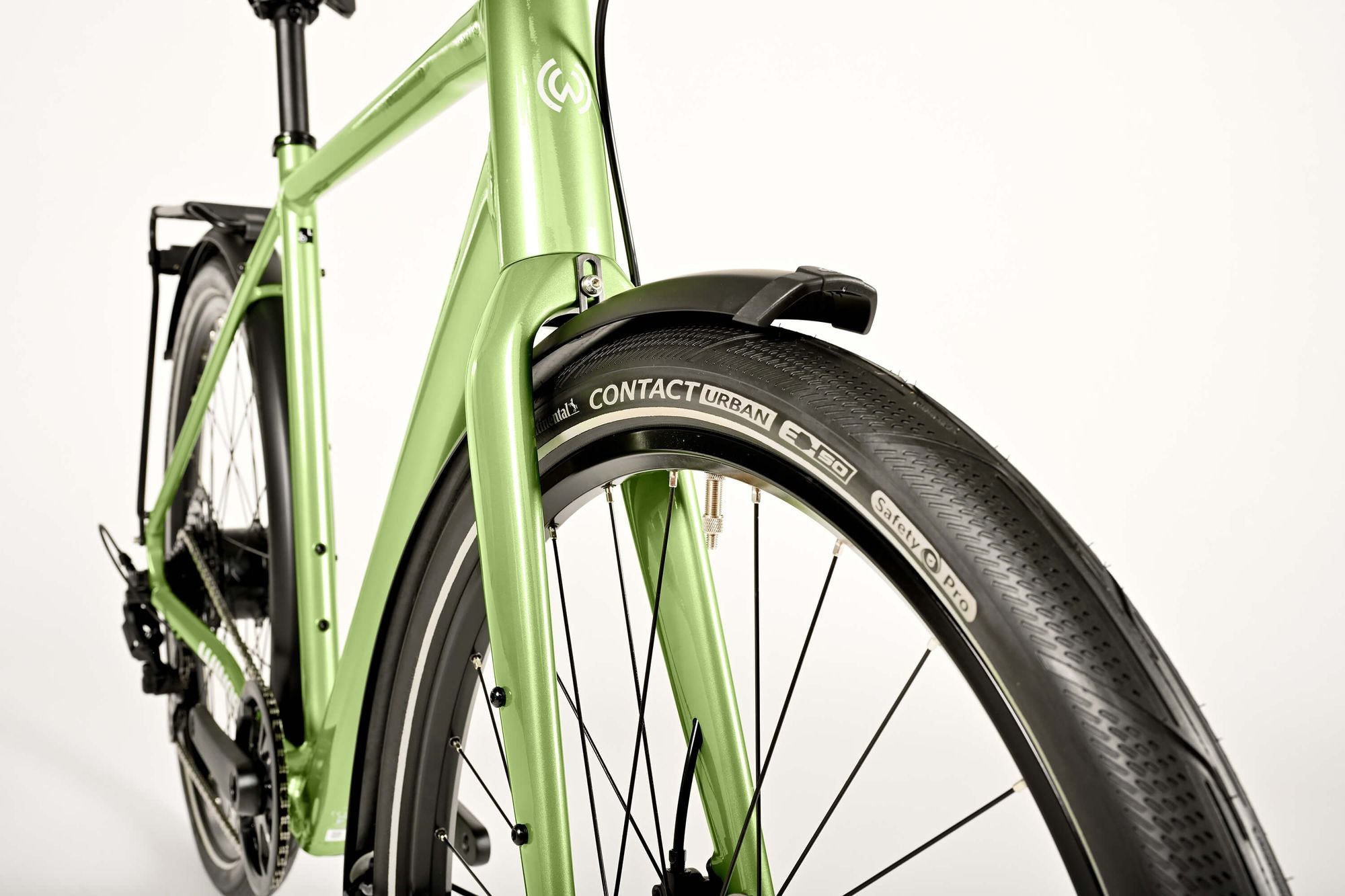

Tyre: Continental Contact Urban Reflex 50-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
