Yakun R5 Pro
Yakun R5 Pro
Description

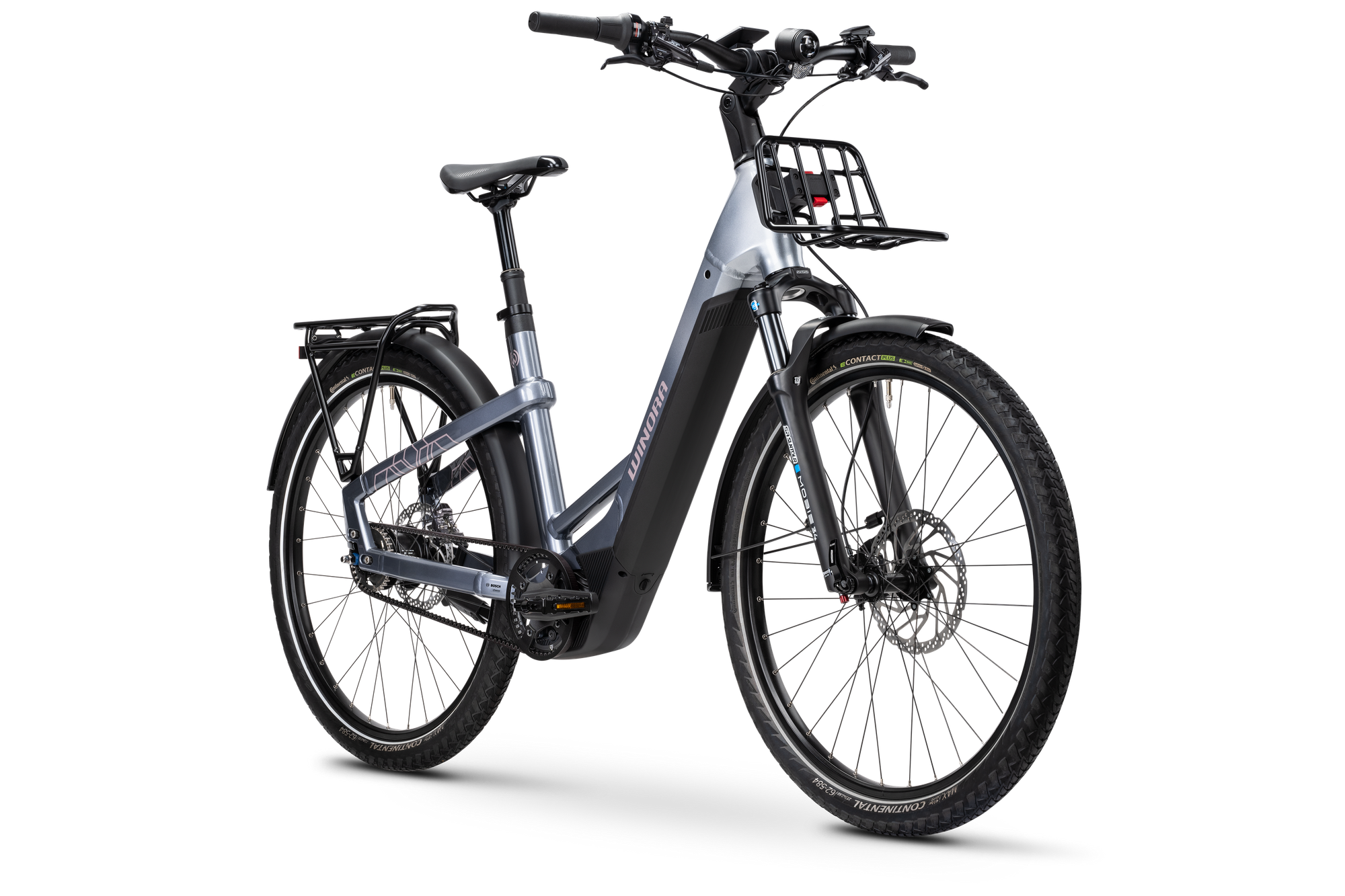

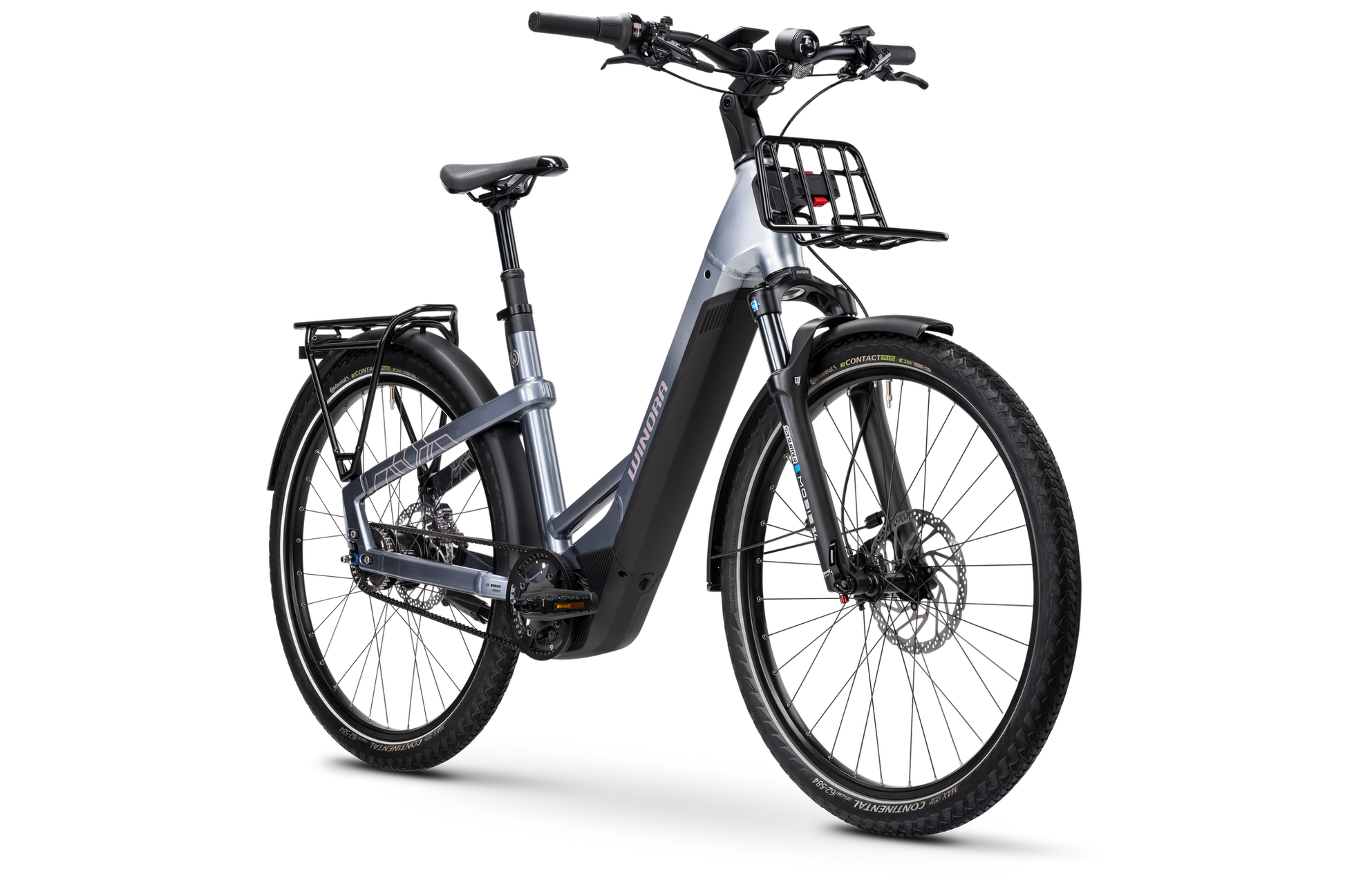

Experience the SUV feeling on two wheels! The Winora Yakun R5 Pro is the perfect choice for those who demand the very best from their e-bike. A premium SUV that excels both in the city and off-road, it impresses with the perfect blend of efficiency, power and comfort. The new Bosch Performance CX motor provides powerful assistance, while the 800Wh battery significantly extends your touring range. Also included are standout features like the clean, low-maintenance belt drive and the Modular Rail System, which transforms the Yakun R5 Pro High into a transport champion. With a total permissible weight of 150kg, this trekking e-bike, available in both low and high frame versions, can carry heavy loads – just like an SUV on two wheels!
Description
Experience the SUV feeling on two wheels! The Winora Yakun R5 Pro is the perfect choice for those who demand the very best from their e-bike. A premium SUV that excels both in the city and off-road, it impresses with the perfect blend of efficiency, power and comfort. The new Bosch Performance CX motor provides powerful assistance, while the 800Wh battery significantly extends your touring range. Also included are standout features like the clean, low-maintenance belt drive and the Modular Rail System, which transforms the Yakun R5 Pro High into a transport champion. With a total permissible weight of 150kg, this trekking e-bike, available in both low and high frame versions, can carry heavy loads – just like an SUV on two wheels!
Key Features
Frame
Motor
Battery
Specifications
e-System
e-System
Battery: Bosch PowerTube 800Wh
Charger: Bosch Charger 4A 220-240V
Display: Bosch Kiox 500 + LED Remote
Motor: Bosch Performance Line CX, 600W, 85Nm, 25km/h
Frame
Frame
Frame: aluminium 6061, disc brake Post Mount
Maximum loadable weight: 150kg
Drive
Drive
Cassette:
Chain: Gates Carbon Drive Belt CDX, 125T
Crankset:
Derailleur Rear: Shimano CUES RD-U6000 10/11s, Shadow+, 10-speed
Gear: Shimano Nexus SG-C7000-5D, Internal Geared Hub, 5-speed
Number of gears: 10-speed
Shifter Right: Shimano Nexus SL-C7000-5, Revoshift Lever, Gripshift
Suspension
Suspension
Front Fork: SR Suntour SF26 XCM34 Boost NLO, Travel: 100mm
Components
Components
Brake light:
Front Brake: Shimano Deore XT BR-M8120, 4 pistons, resin pad, 203 mm
Rear Brake: Shimano Deore XT BR-M8120, 4 pistons, resin pad, 180 mm
Headlight: Litemove AC-150, 6-16V, 150 lux
Rear Light: Spanninga Pimento XE Brakelight
Grips: Herrmans DD42, Lockable Grips
Handlebar: JD TR28AL, Dia. 31.8 mm, Rise: 19 mm 680 mm
Pedal: VP Components 625 aluminium, non-slip
Saddle: Selle Royal Vivo Ergo 1217HRN
Seatpost: Limotec Alpha 1 Dropper, Dia. 34.9 mm, Travel: 125 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Schürmann YAK Disc 25-584 32H 8,5 mm Valve
Tyre: Continental E-Contact Plus, 62-584, reflex
