Bosch Performance Line (Smart System)
Description
Description

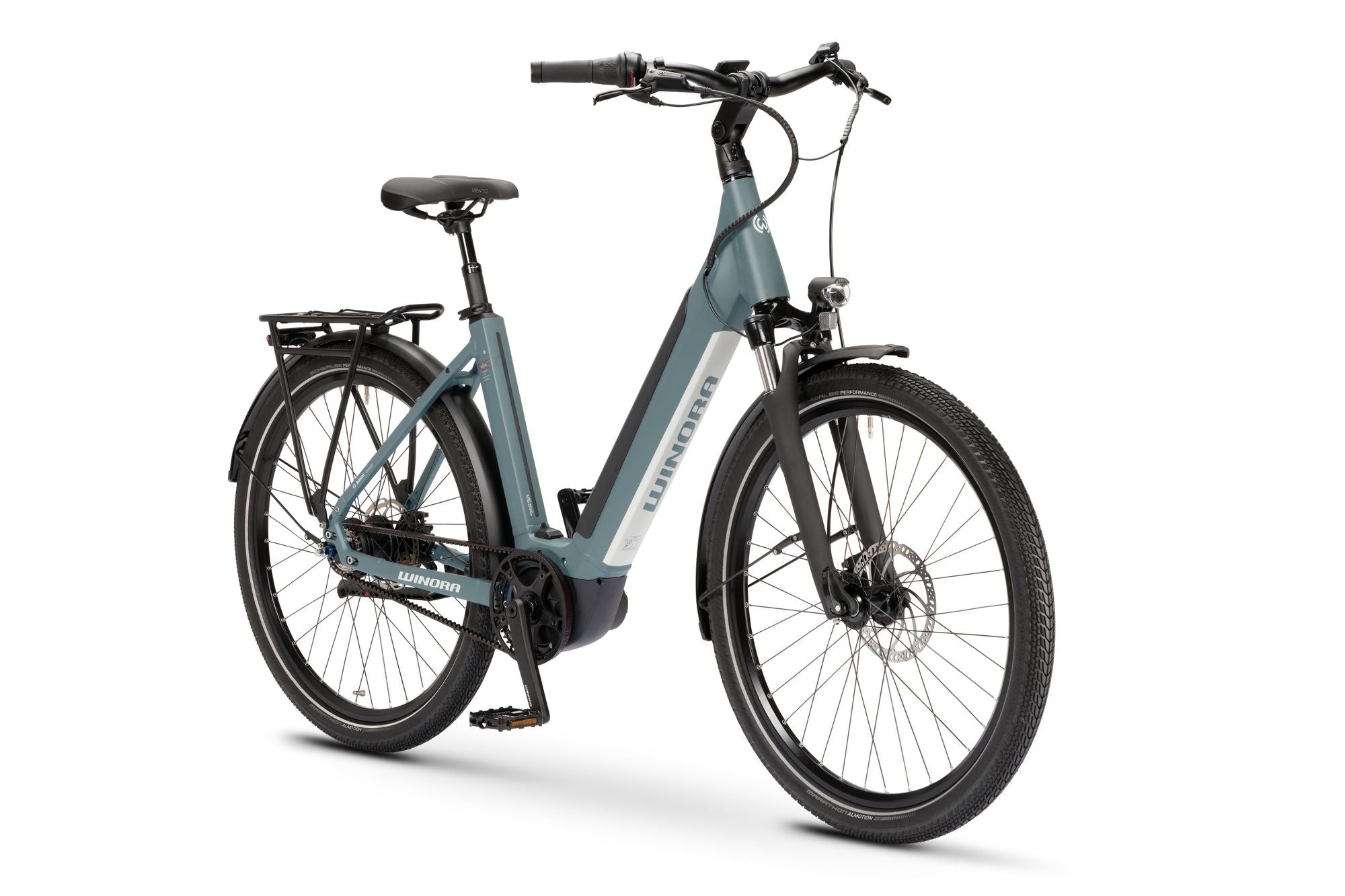

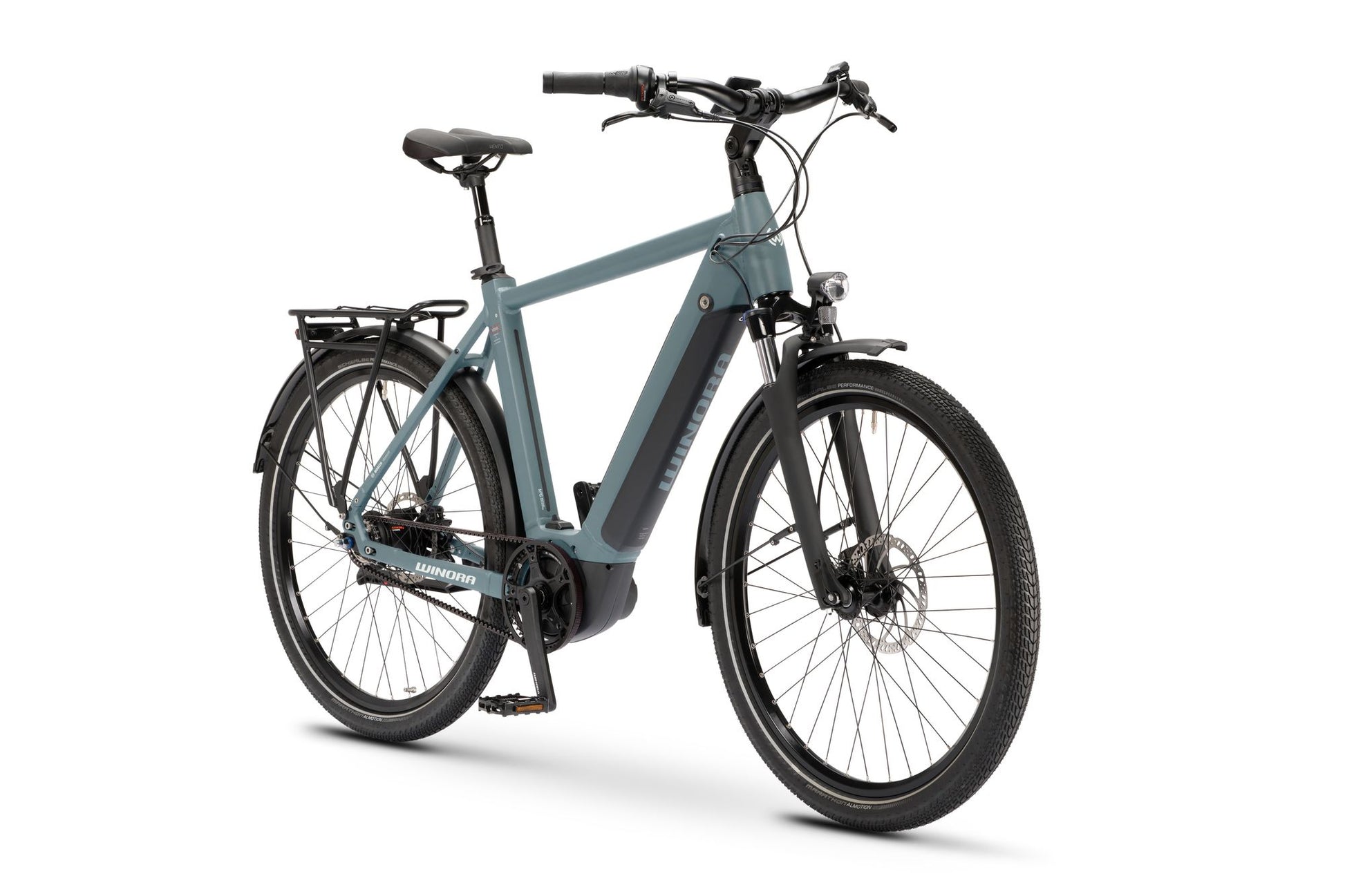

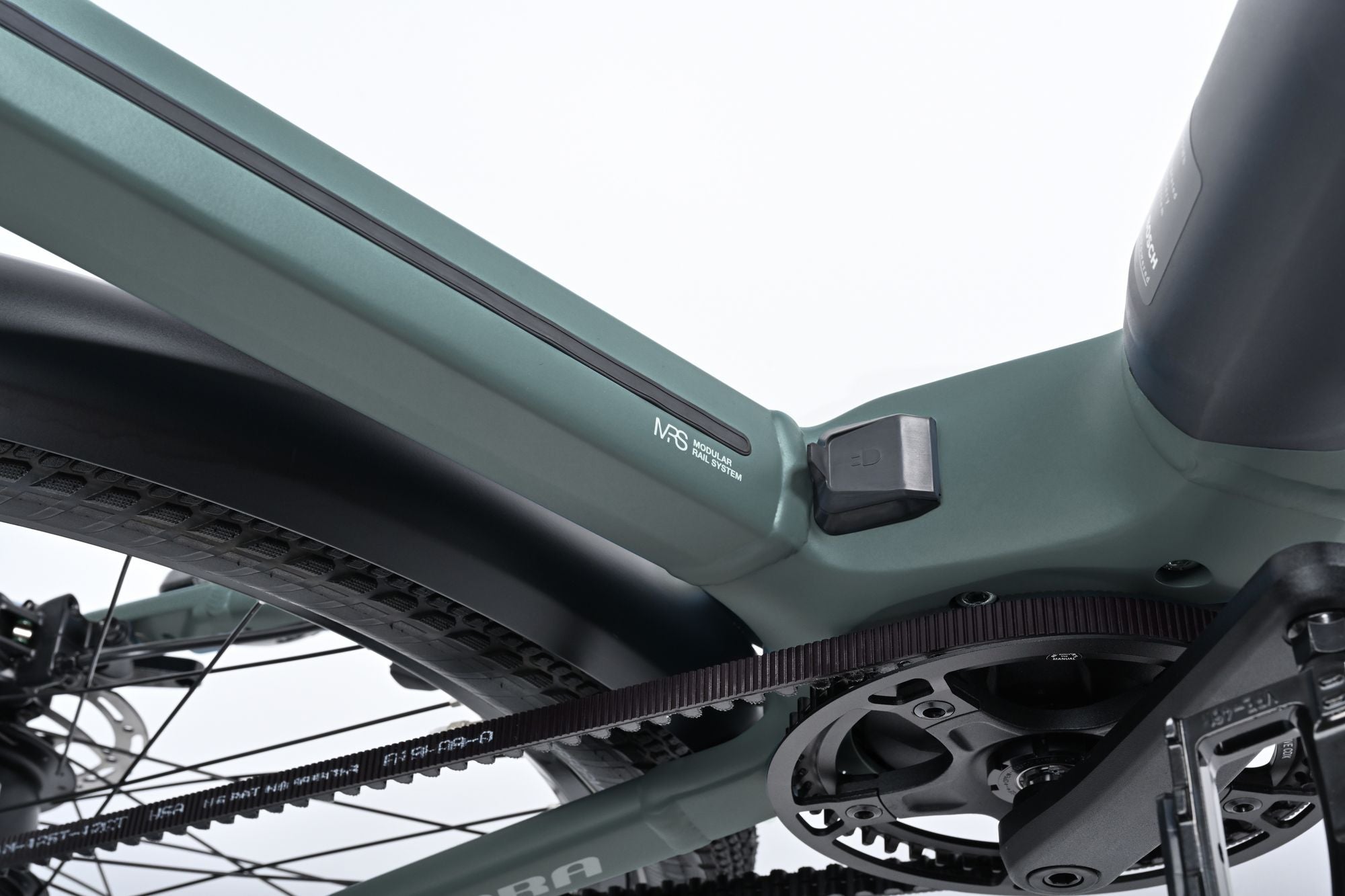

Stylish riding – without compromise. The Winora Sinus R8EF with freewheel brings movement into your everyday life and your touring trips. The hub gears and belt drive make this city eBike particularly easy to maintain, making it perfect for beginners. Reliable support uphill is provided by the quiet Bosch Performance Line Smart System motor, which accelerates dynamically and at the same time ensures a natural riding experience. With the elegantly integrated 500Wh battery, you always have enough energy reserves for trips into town or into the countryside. The steel suspension fork from SR Suntour and ergonomic grips promise maximum comfort and safety. The perfect eBike for all those who want to get from A to B in style and don't want to compromise.
Geometry
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 480 mm | 520 mm | 560 mm | 600 mm |
| B: Top Tube legth (mm) | 632 mm | 641 mm | 649 mm | 658 mm |
| C: Head tube length (mm) | 155 mm | 155 mm | 160 mm | 175 mm |
| D: Head Tube Angle | 70.5 degrees | 70.5 degrees | 70.5 degrees | 70.5 degrees |
| E: Seat Tube Angle | 73.5 degrees | 73.5 degrees | 73.5 degrees | 73.5 degrees |
| F: Chain stay length (mm) | 475 mm | 475 mm | 475 mm | 475 mm |
| G: Wheelbase (mm) | 1134 mm | 1144 mm | 1154 mm | 1165 mm |
| H: Stack (mm) | 673 mm | 637 mm | 642 mm | 656 mm |
| I: Reach (mm) | 411 mm | 421 mm | 429 mm | 435 mm |
| J: Stand over height (mm) | 80 mm | 82 mm | 85 mm | 87 mm |
| K: Bottom bracket drop (mm) | -60 mm | -60 mm | -60 mm | -60 mm |
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 460 mm | 500 mm | 540 mm | |
| B: Top Tube legth (mm) | 652 mm | 661 mm | 671 mm | |
| C: Head tube length (mm) | 190 mm | 190 mm | 195 mm | |
| D: Head Tube Angle | 70 degrees | 70 degrees | 70 degrees | |
| E: Seat Tube Angle | 73.5 degrees | 73.5 degrees | 73.5 degrees | |
| F: Chain stay length (mm) | 475 mm | 475 mm | 475 mm | |
| G: Wheelbase (mm) | 1169 mm | 1179 mm | 1189 mm | |
| H: Stack (mm) | 668 mm | 668 mm | 673 mm | |
| I: Reach (mm) | 428 mm | 438 mm | 447 mm | |
| J: Stand over height (mm) | 46 mm | 45 mm | 45 mm | |
| K: Bottom bracket drop (mm) | -60 mm | -60 mm | -60 mm |
Specifications
e-System
e-System
Battery: Bosch Li-ION InTube 500 Wh
Charger: Bosch Charger 2A

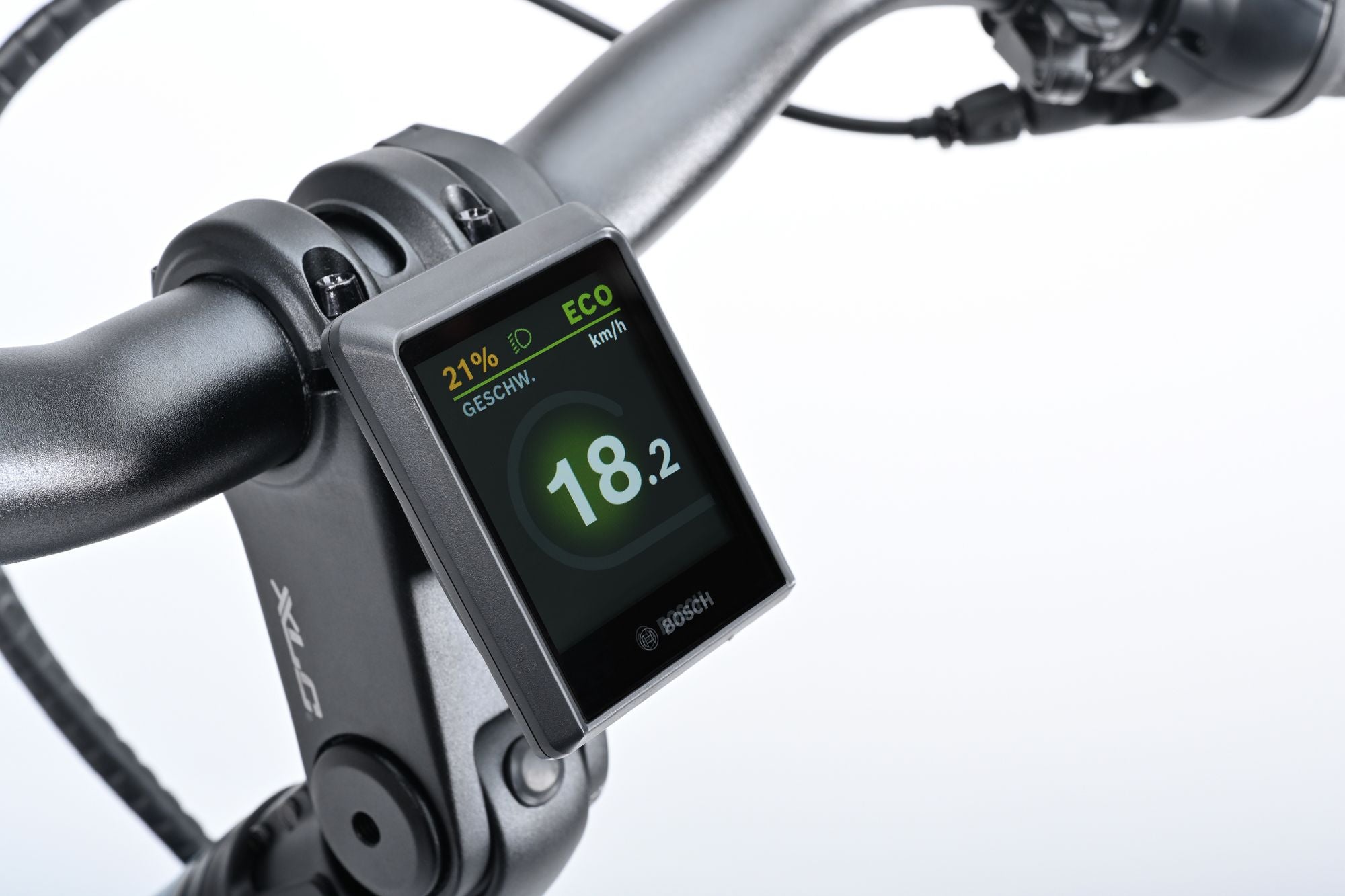

Display: Bosch Intuvia 100 Intuvia 100 + LED Remote

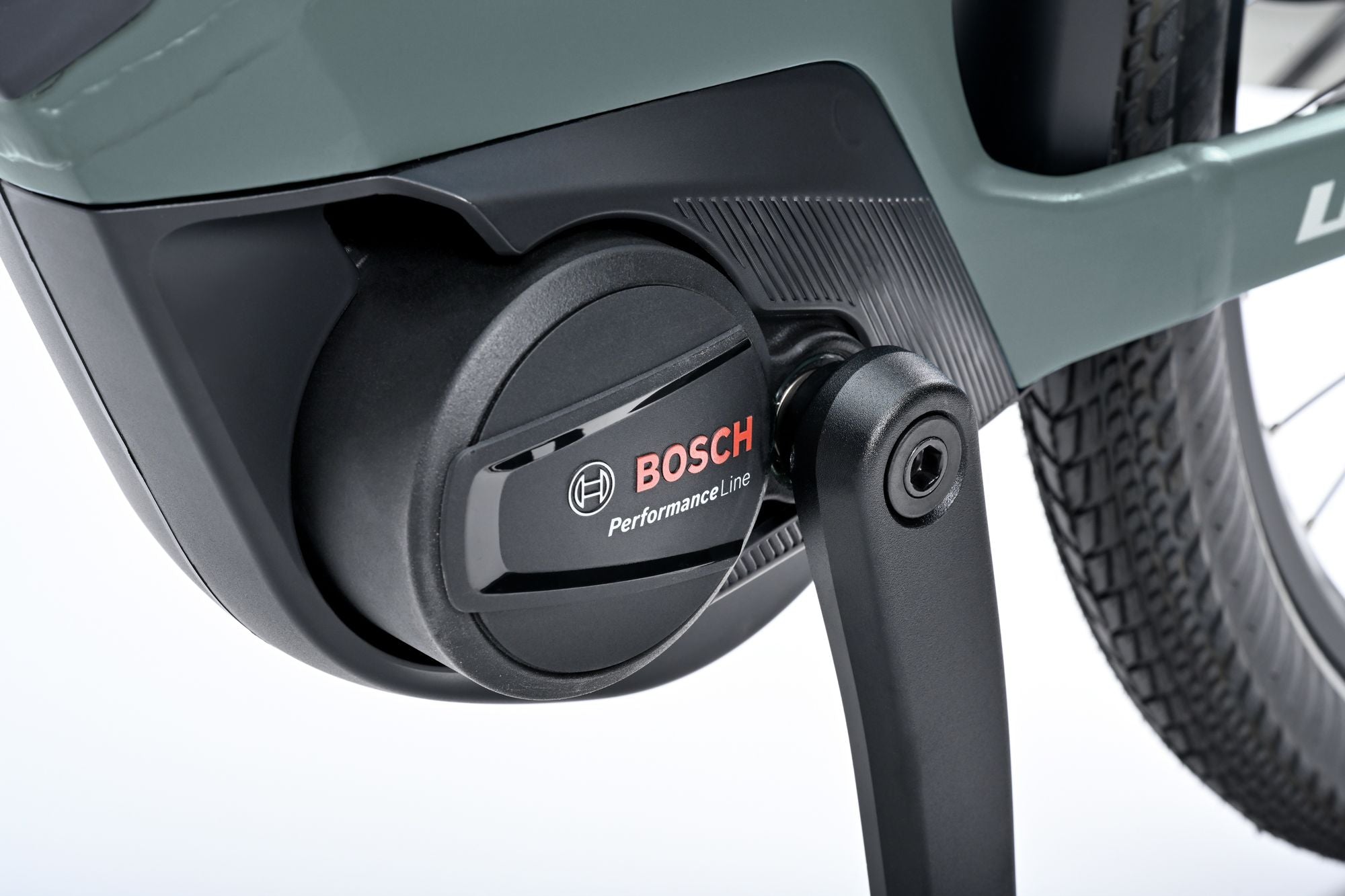

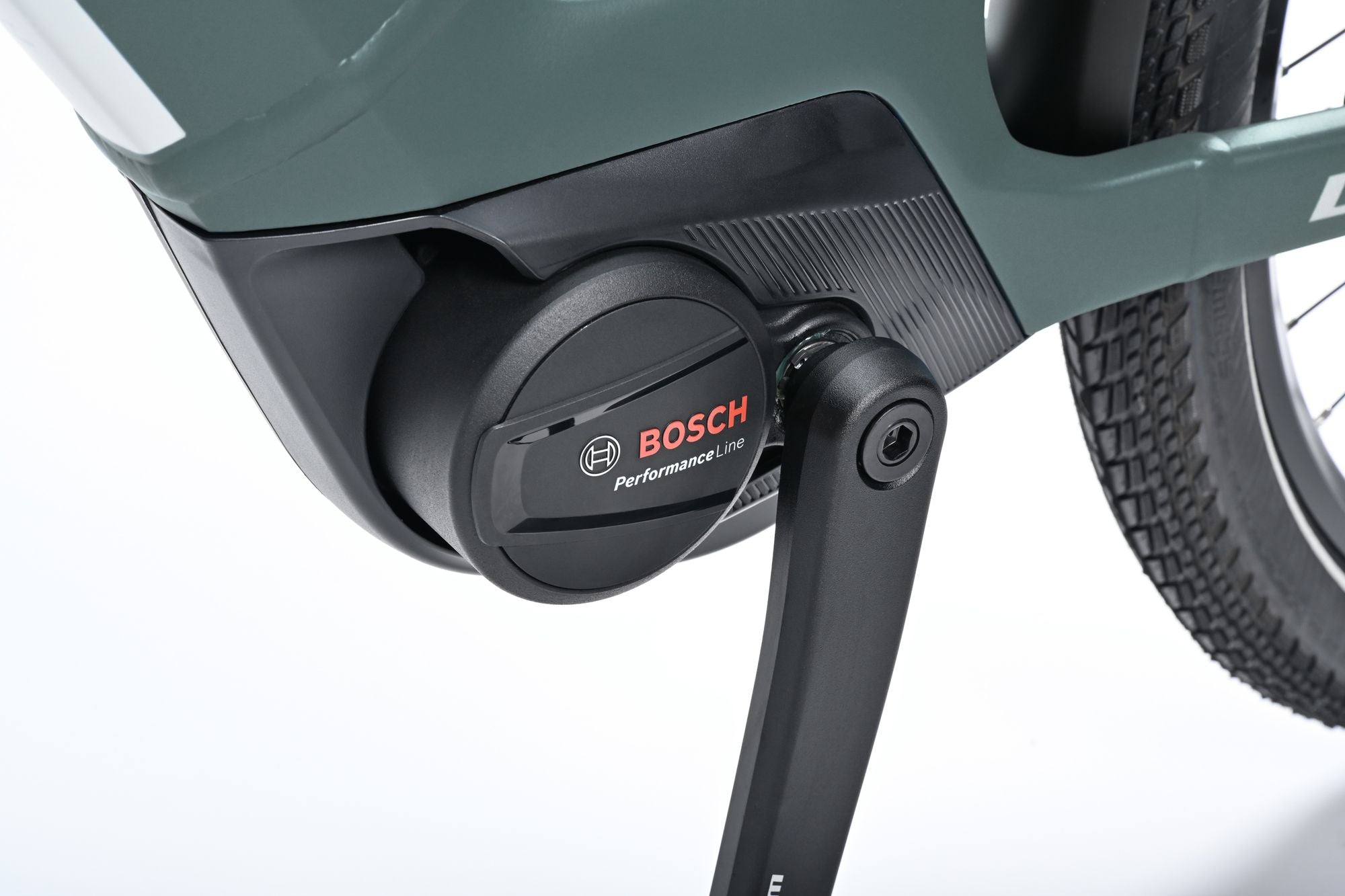

Motor: Bosch Performance Line (Smart System)
Frame
Frame
Frame: High Aluminium Uni
Modular Rail System:
Maximum loadable weight: 130 kg
Drive
Drive

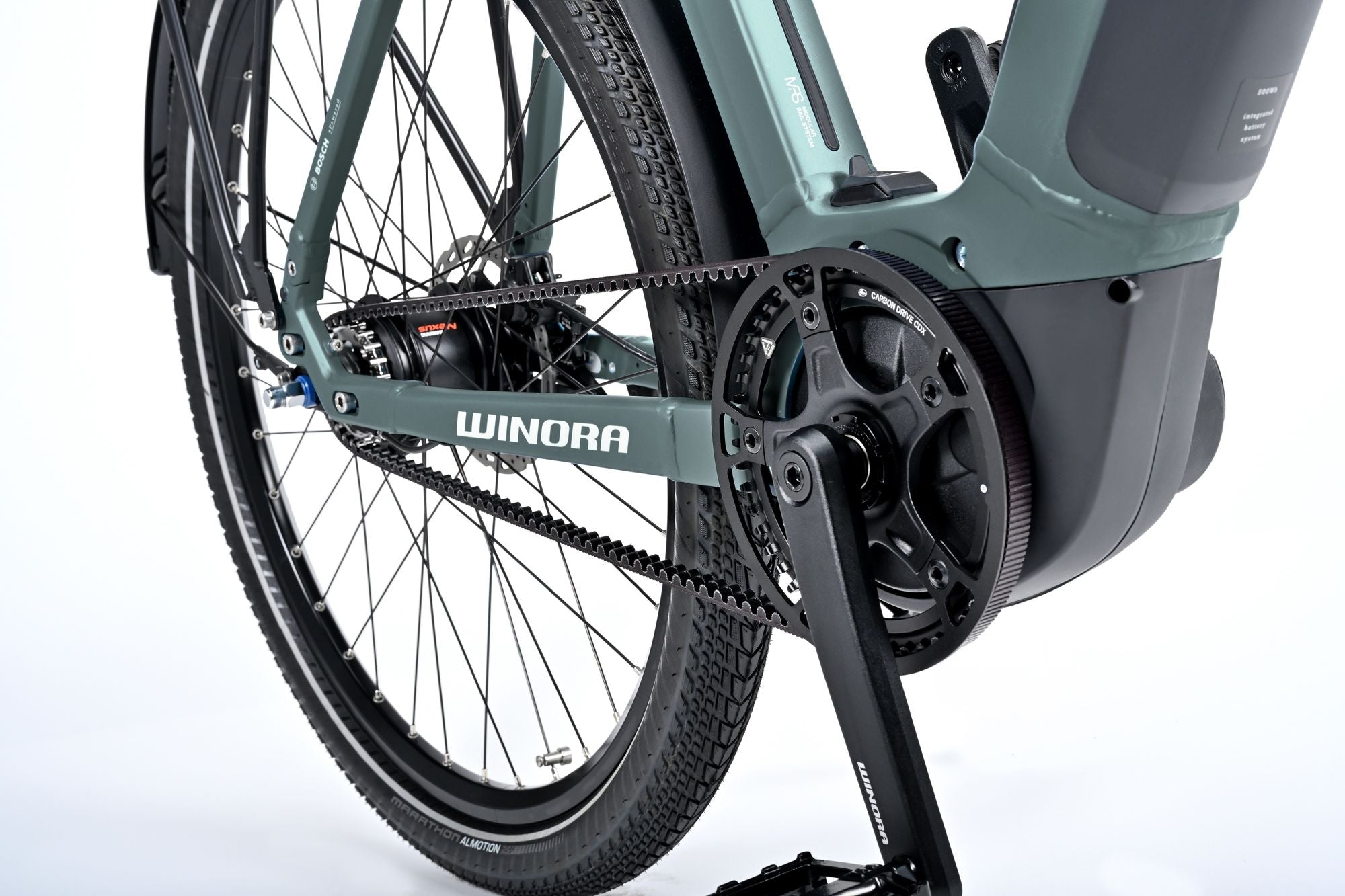

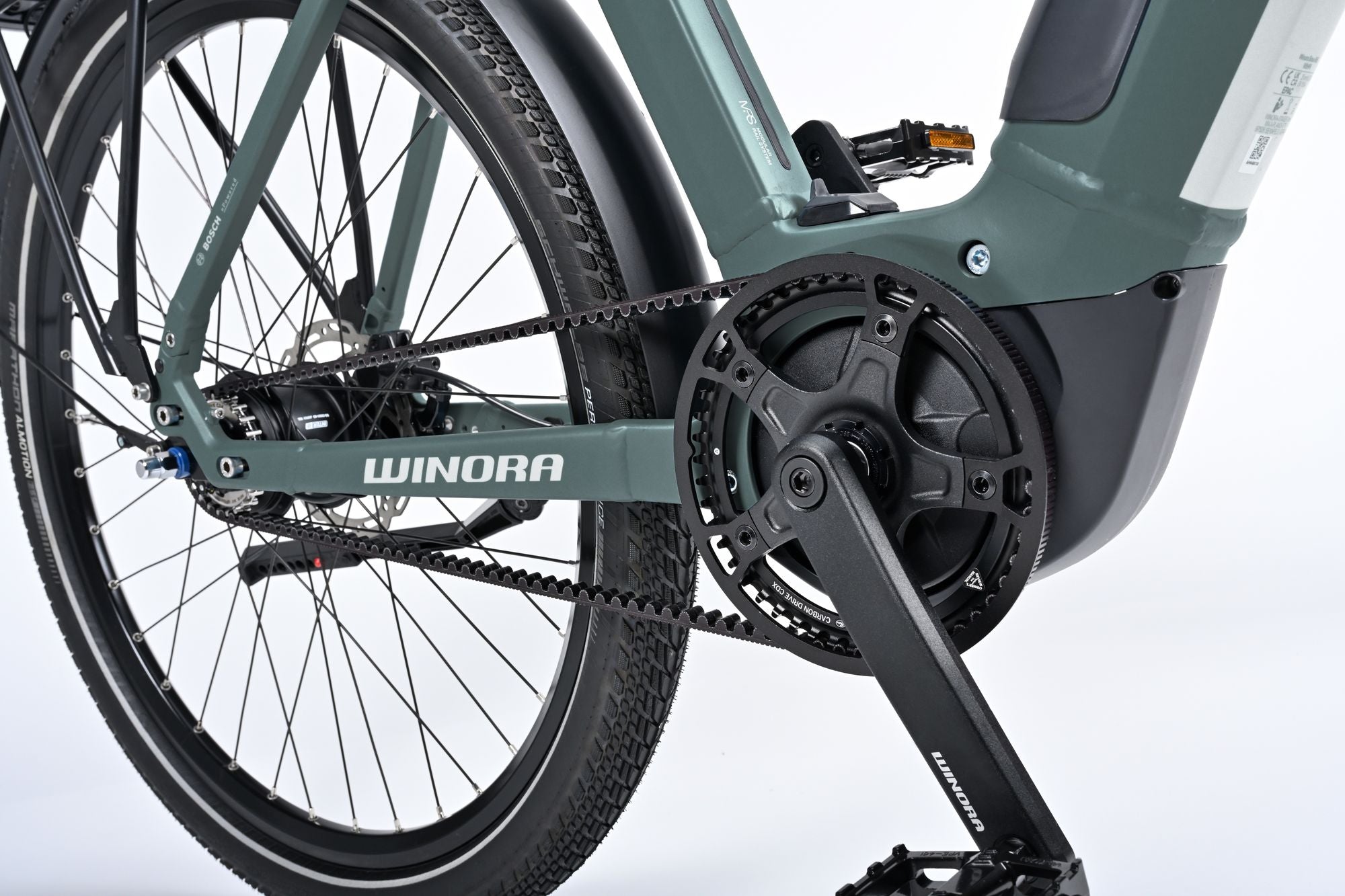

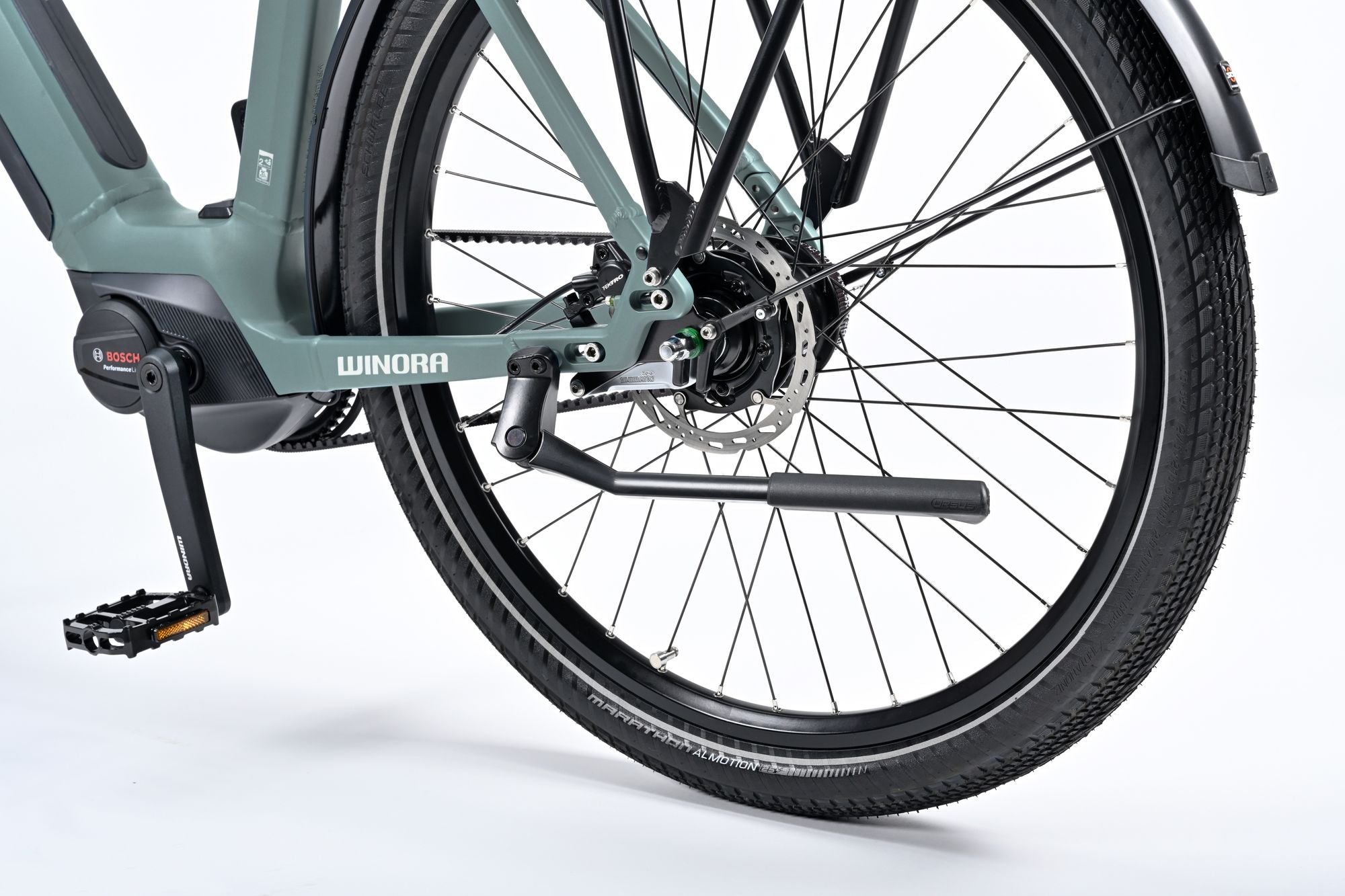

Cassette: Gates Carbon Drive CDC Sprocket
Chain: Gates Belt Carbon Drive Belt CDC, 125T
Crankset: EC37A-F5-BNI Cranks 170 mm + GATES CDC Chainwh.
Derailleur Rear:

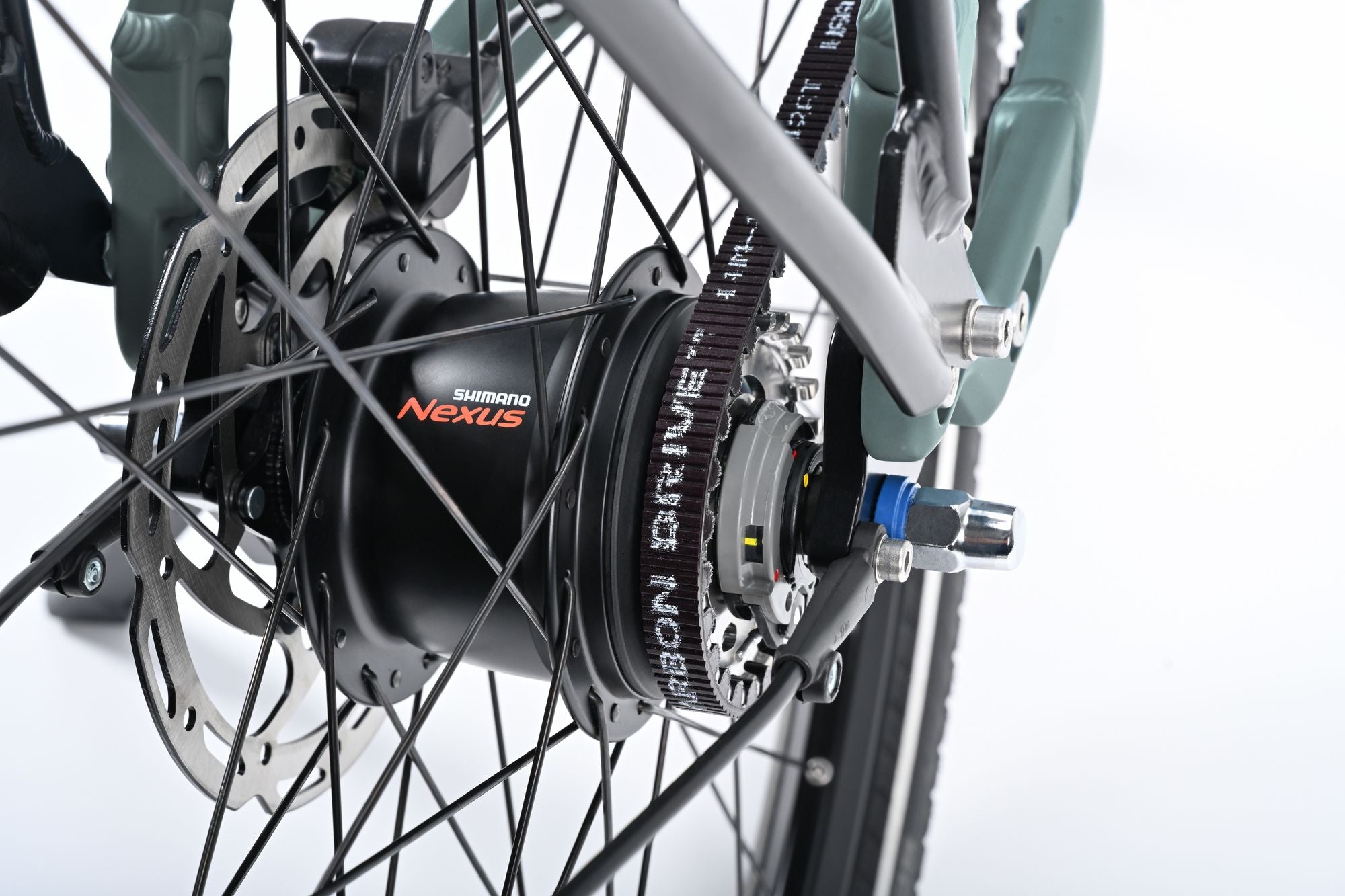

Gear: Shimano Internal Gear Hub Nexus
Number of gears: 8

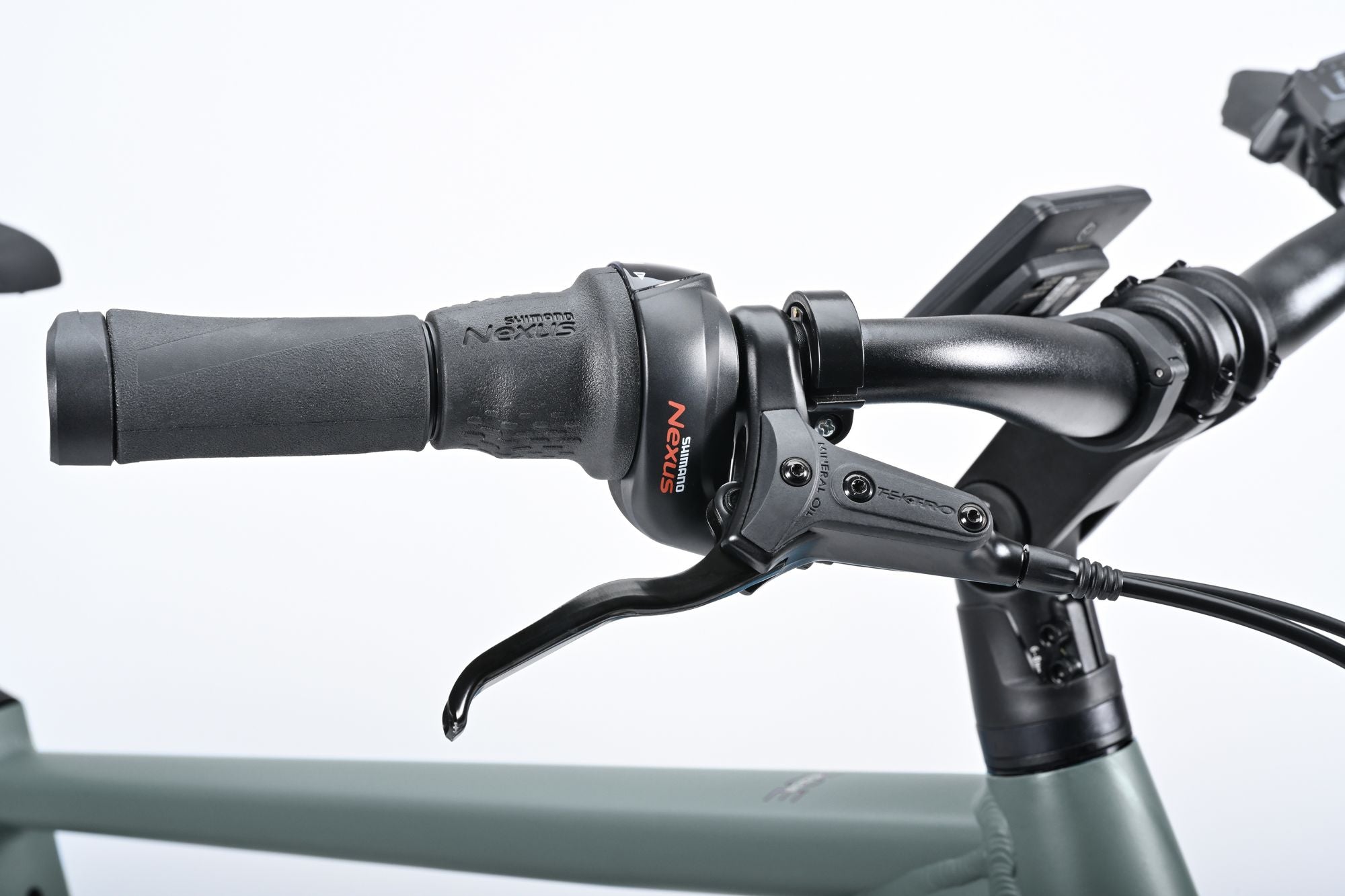

Shifter Right: Shimano Gripshift Nexus SL-C6000-8R
Suspension
Suspension
Front Fork: Suntour NEX E25 60 mm
Rear Travel:
Shock:
Travel:
Components
Components

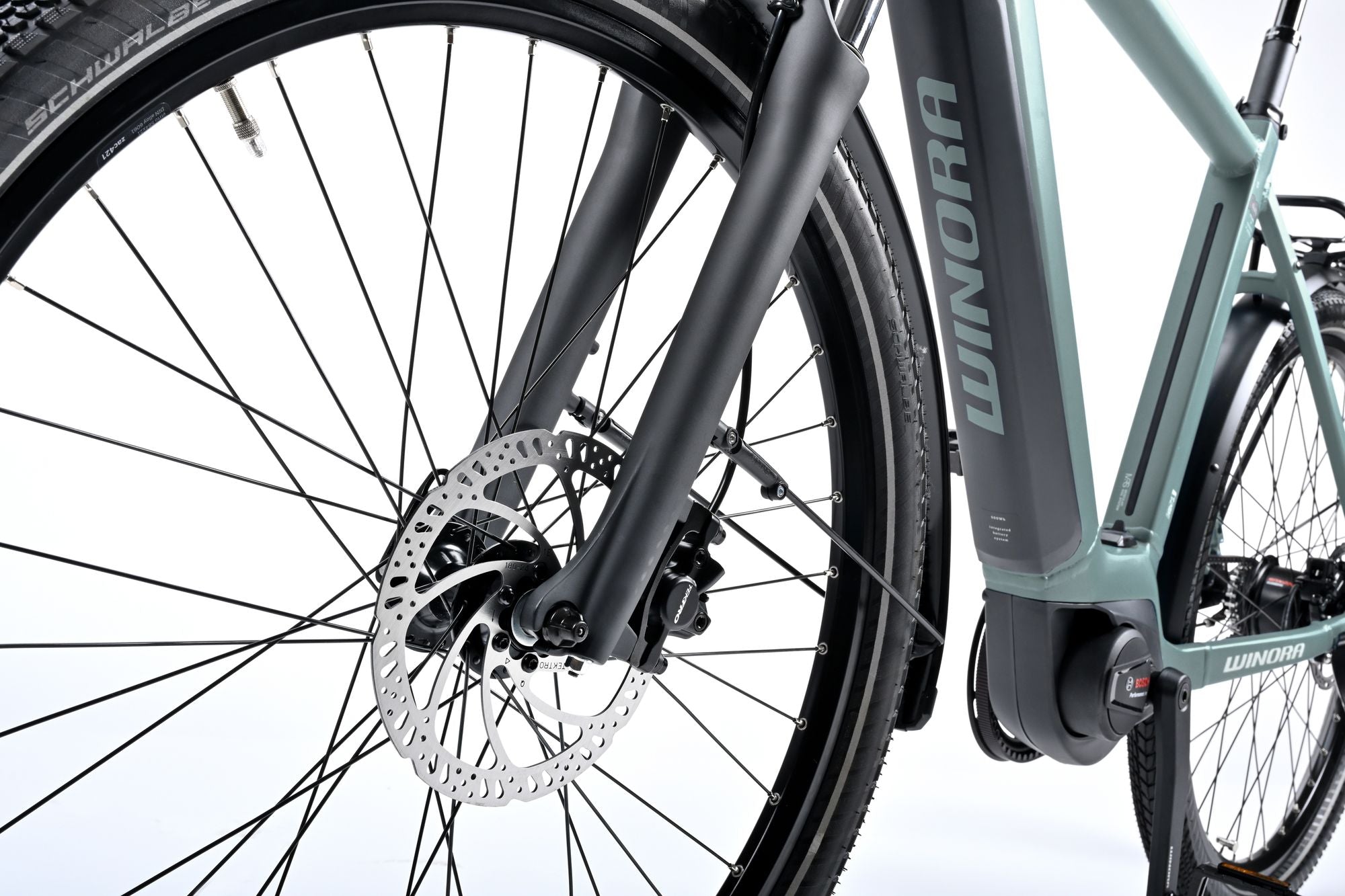

Front Brake: Tektro Hydraulic Disc brake HD-T275, 180 mm
Rear Brake: Tektro Hydraulic Disc brake

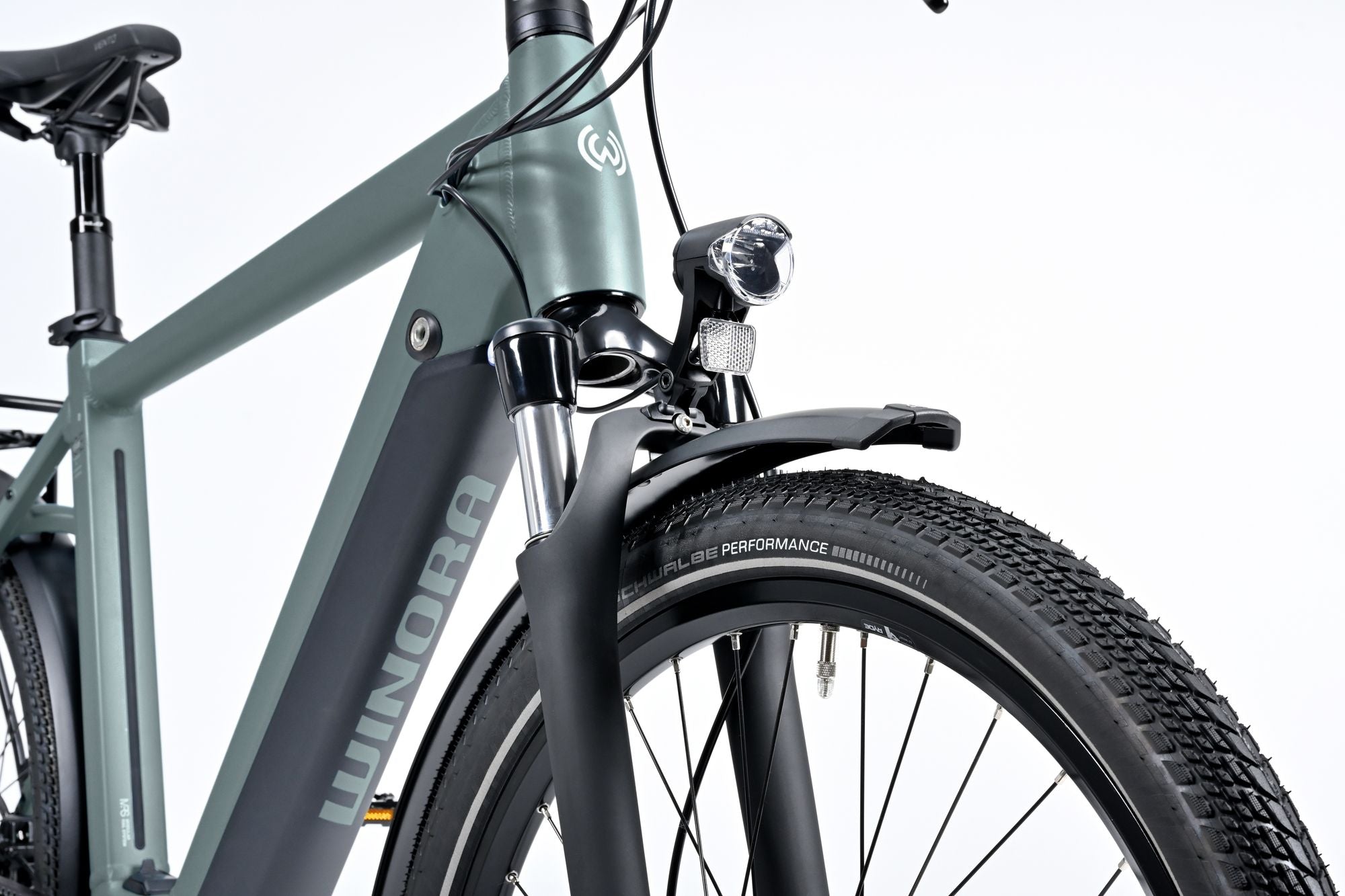

Headlight: Herrmans Via E-bike System MR5, 6-12V
Rear Light: AXA Via E-bike System Juno Ebike, 6-12V
Brake light:
Grips: Herrmans DD42, Lockable Grips
Handlebar: JD TR25AL Dia. 31.8 mm, Rise: 25 mm
Pedal: VP VPE-461 MTB Alloy Pedal w. Reflector
Saddle: Selle Royal Viento
Seatpost: XLC Suspension Harmony-LT2, Dia. 31.6 mm, Tavel: 300 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Ryde Hollow rim Zac421 36H

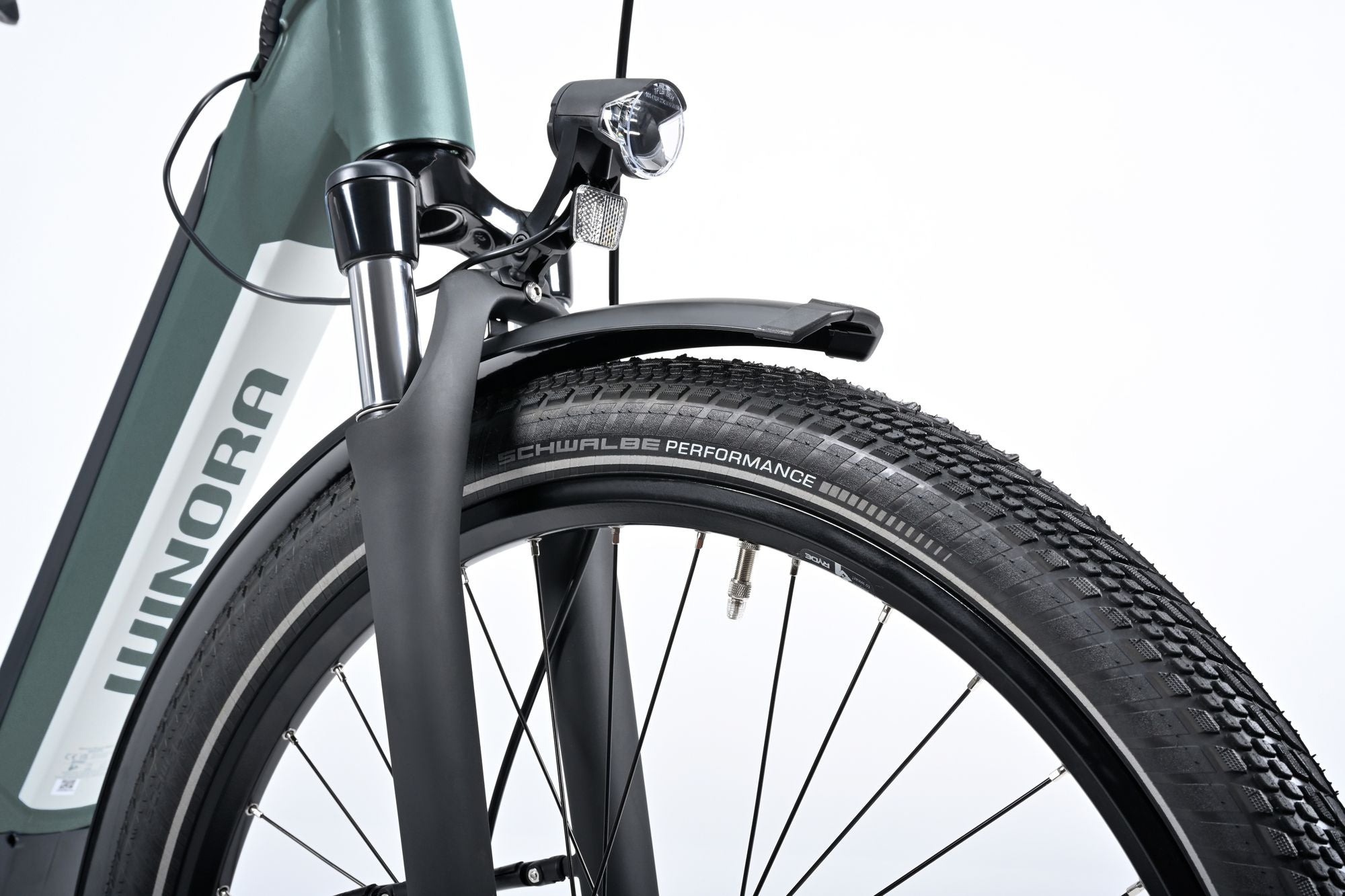

Tyre: Schwalbe Marathon Almotion REF 55-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
