Bosch Performance Line CX Performance Line CX
Description
Description

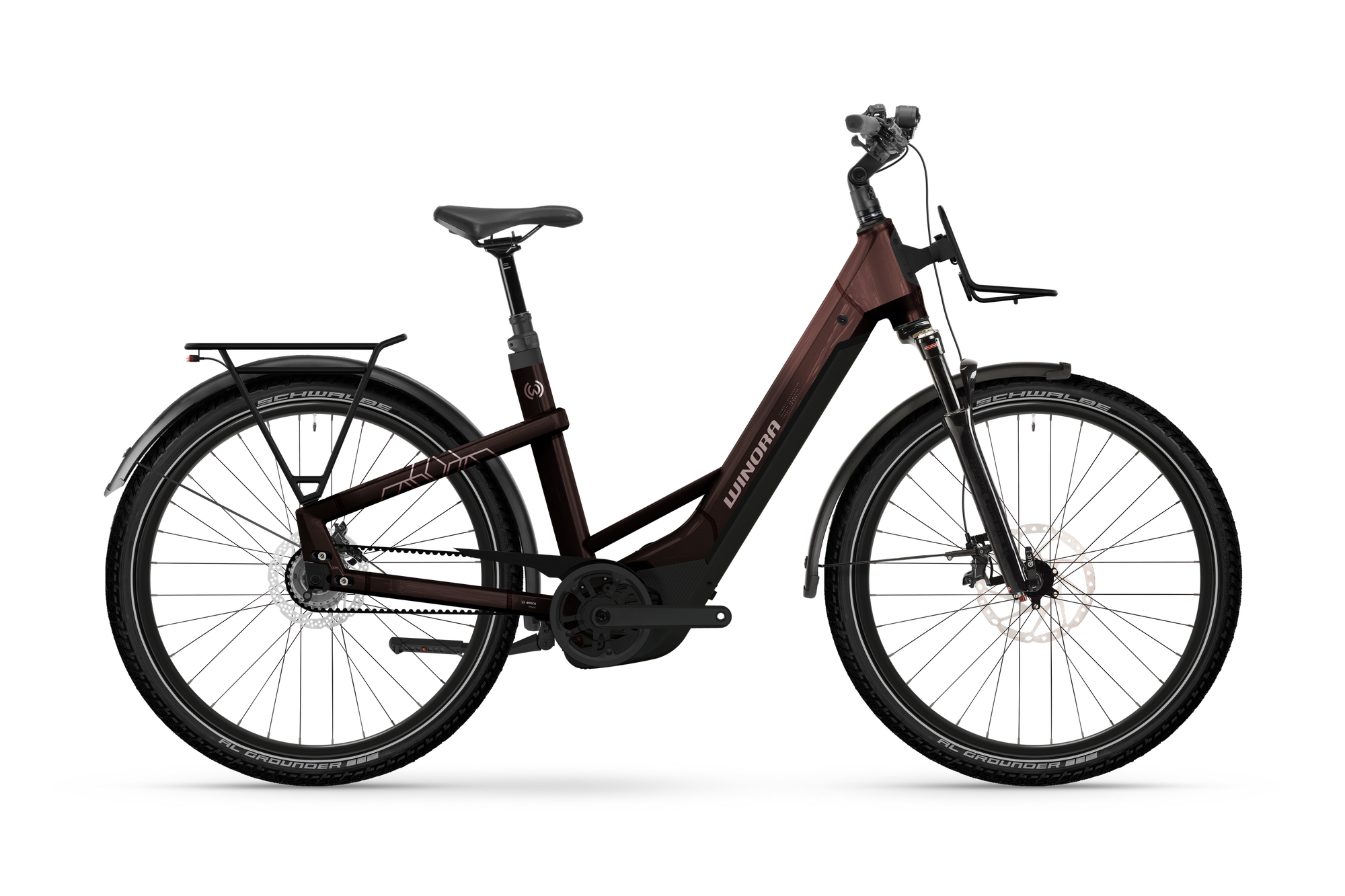

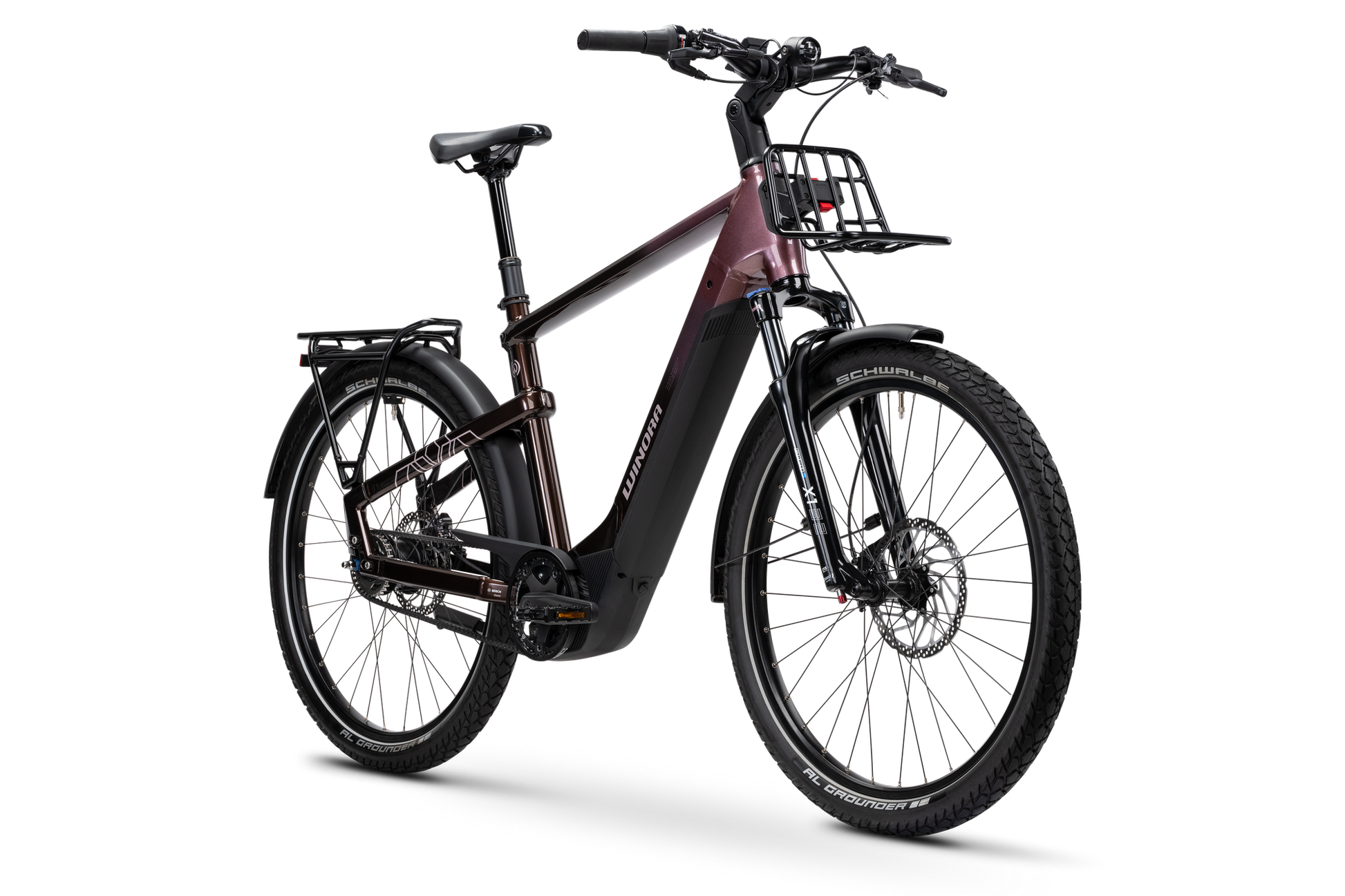

Maximum riding pleasure – on every kilometre. With the new Winora Yakun R5, it doesn’t matter whether you’re commuting to work or heading out on a cycling adventure in the great outdoors – this SUV e-bike will impress you with its versatility and reliability. Powered by the latest version of the Bosch Performance CX motor, paired with a 600Wh battery, it effortlessly tackles any challenge. The integrated belt drive ensures a quiet, clean and low-maintenance ride. And with the 80mm suspension fork, even rough terrain feels smooth. A highlight: the maximum permissible weight is 150kg, so you can easily carry heavy loads, like groceries. Plus, the trekking e-bike is available in both high and low frame designs. Get ready for maximum riding enjoyment – anytime, anywhere.
Geometry
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 440 mm | 470 mm | 510 mm | 540 mm |
| B: Top Tube legth (mm) | 617 mm | 628 mm | 640 mm | 653 mm |
| C: Head tube length (mm) | 160 mm | 170 mm | 180 mm | 190 mm |
| D: Head Tube Angle | 69 degrees | 69 degrees | 69 degrees | 69 degrees |
| E: Seat Tube Angle | 76 degrees | 76 degrees | 76 degrees | 76 degrees |
| F: Chain stay length (mm) | 472 mm | 472 mm | 472 mm | 472 mm |
| G: Wheelbase (mm) | 1196 mm | 1197 mm | 1210 mm | 1224 mm |
| H: Stack (mm) | 635 mm | 645 mm | 654 mm | 663 mm |
| I: Reach (mm) | 457 mm | 455 mm | 465 mm | 475 mm |
| K: Bottom bracket drop (mm) | -60 mm | -60 mm | -60 mm | -60 mm |
| Component | S | M | L | XL |
|---|---|---|---|---|
| A: Seat tube length (mm) | 440 mm | 470 mm | 510 mm | 540 mm |
| B: Top Tube legth (mm) | 617 mm | 628 mm | 640 mm | 653 mm |
| C: Head tube length (mm) | 160 mm | 170 mm | 180 mm | 190 mm |
| D: Head Tube Angle | 69 degrees | 69 degrees | 69 degrees | 69 degrees |
| E: Seat Tube Angle | 76 degrees | 76 degrees | 76 degrees | 76 degrees |
| F: Chain stay length (mm) | 472 mm | 472 mm | 472 mm | 472 mm |
| G: Wheelbase (mm) | 1196 mm | 1197 mm | 1210 mm | 1224 mm |
| H: Stack (mm) | 635 mm | 645 mm | 654 mm | 663 mm |
| I: Reach (mm) | 457 mm | 455 mm | 465 mm | 475 mm |
| K: Bottom bracket drop (mm) | -60 mm | -60 mm | -60 mm | -60 mm |
Specifications
e-System
e-System
Battery: Bosch Li-ION InTube 600Wh
Charger: Bosch Charger 4A 230V
Display: Bosch Kiox 300 Kiox 300 + LED Remote
Motor: Bosch Performance Line CX Performance Line CX
Frame
Frame
Frame: High Aluminium Uni
Modular Rail System: Yes
Maximum loadable weight: 150 kg
Drive
Drive
Cassette: Gates Carbon Drive CDX Sprocket, 5 Spline
Chain: Gates Belt Carbon Drive Belt CDX, 125T
Crankset: Kies ISIS Cranks + GATES CDX Chainring + Spider
Derailleur Rear:
Gear: Shimano Internal Gear Hub Nexus
Number of gears: 5
Shifter Right: Shimano Gripshift Nexus SL-C7000-5R, Gripshift
Suspension
Suspension
Front Fork: Suntour SF23 X1 Boost LO-R 80 mm
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Deore XT BR-M8120, 4 pistons, resin pad, 203mm
Rear Brake: Shimano Hydraulic Disc brake Deore XT BR-M8120, 4 pistons, resin pad, 180mm
Headlight: Trelock Via E-bike System Skybeamer 300, 6-24V
Rear Light: Spanninga Via E-bike System Pimento XE with Brakelight, 6-36 V
Brake light: Yes
Grips: Herrmans
Handlebar: JD TR28AL, Dia. 31.8 mm, Rise: 19 mm
Pedal: VP VPE-625 MTB Pedal w. Reflector
Saddle: Selle Royal Vivo Ergo 1217 HRN
Seatpost: Limotec Dropperpost Alpha A1, Dia. 34.9 mm, Travel: 125 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Schurmann YAK Disc 25-584, 32H, 8,5 mm Valve
Tyre: Schwalbe AL Grounder Performance 60-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
