Bosch Performance Line SX, 250W, 55Nm, 25km/h
Find the Winora iRide Pure R5f near you
Description

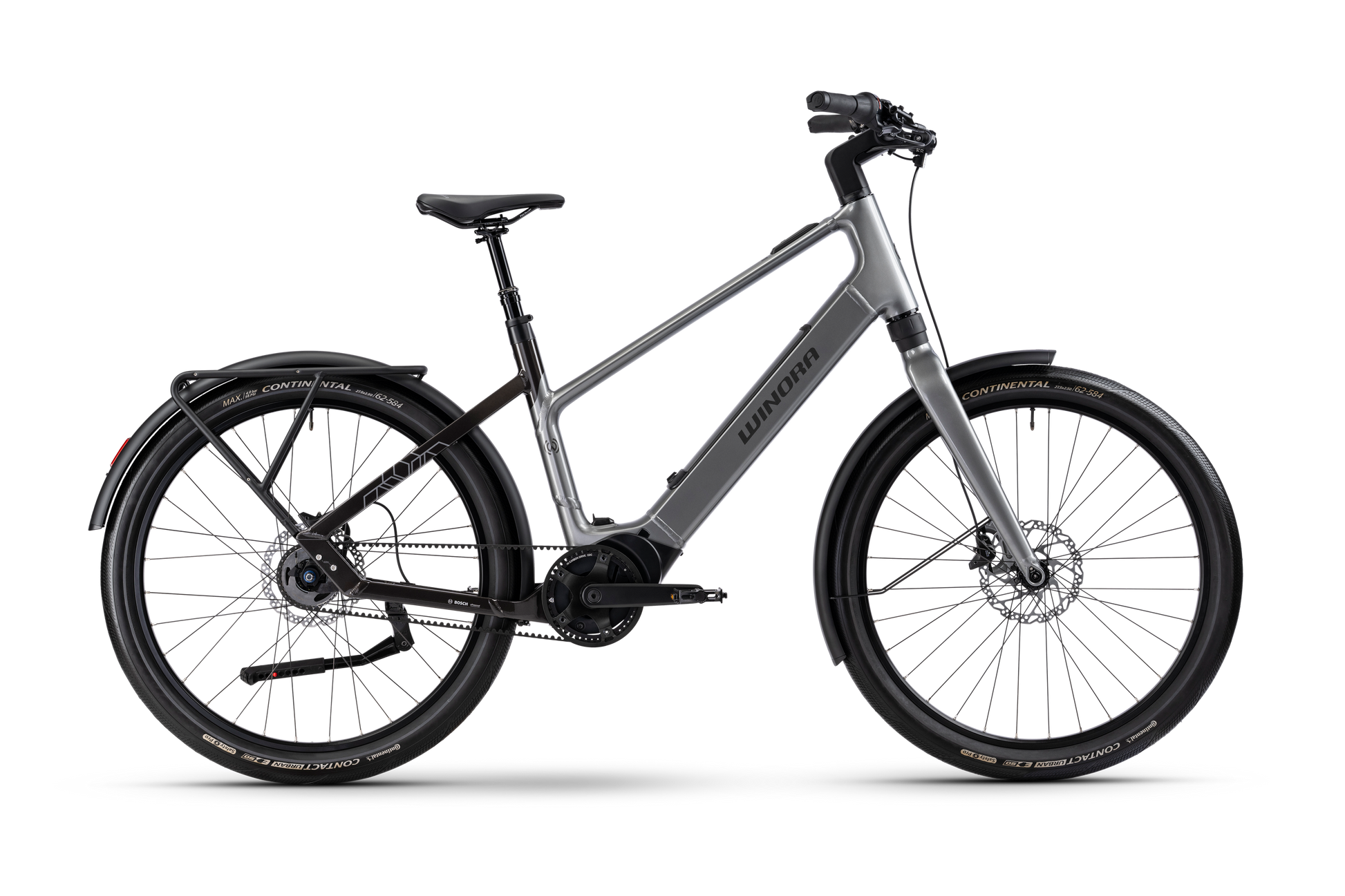

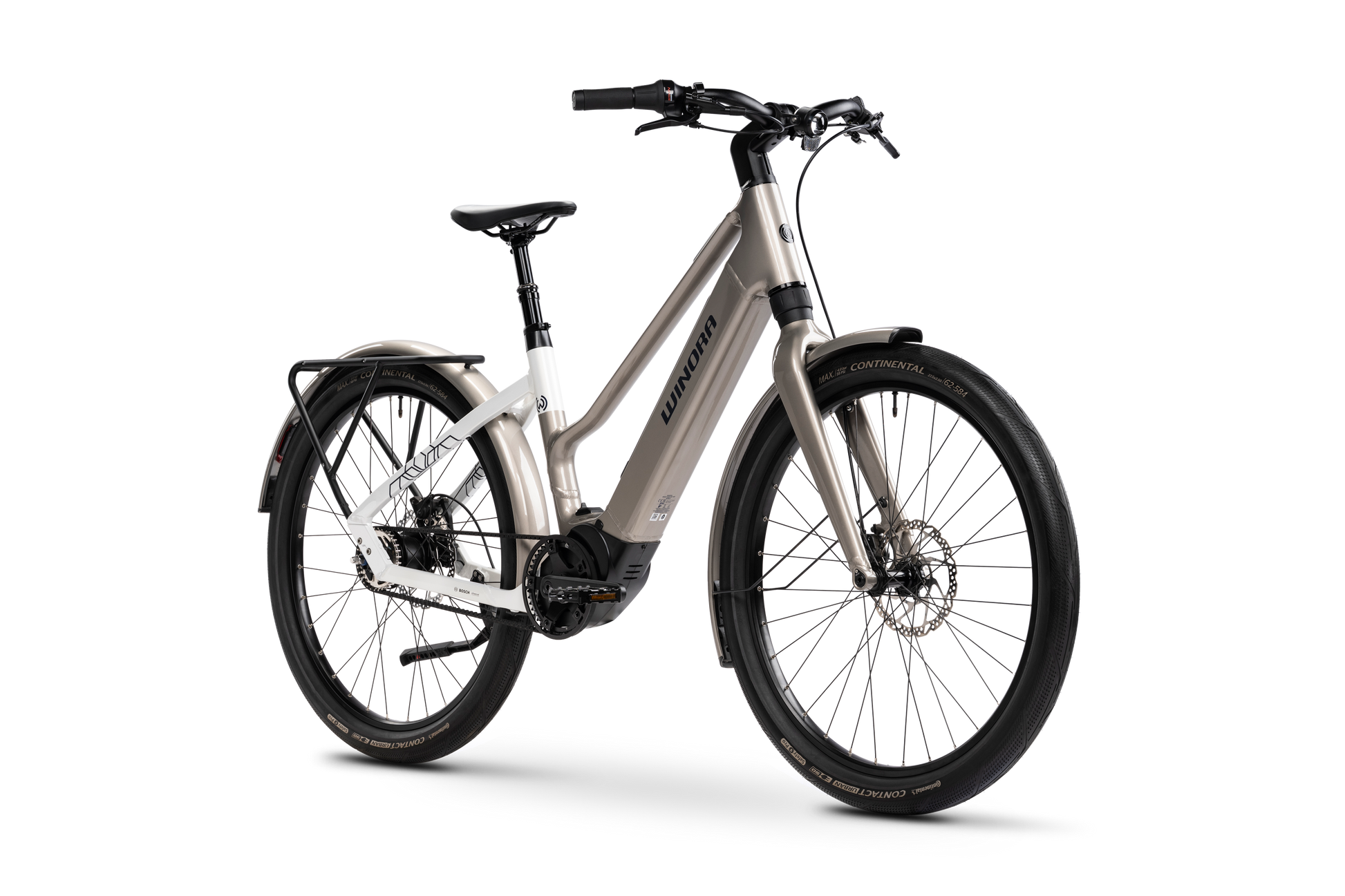

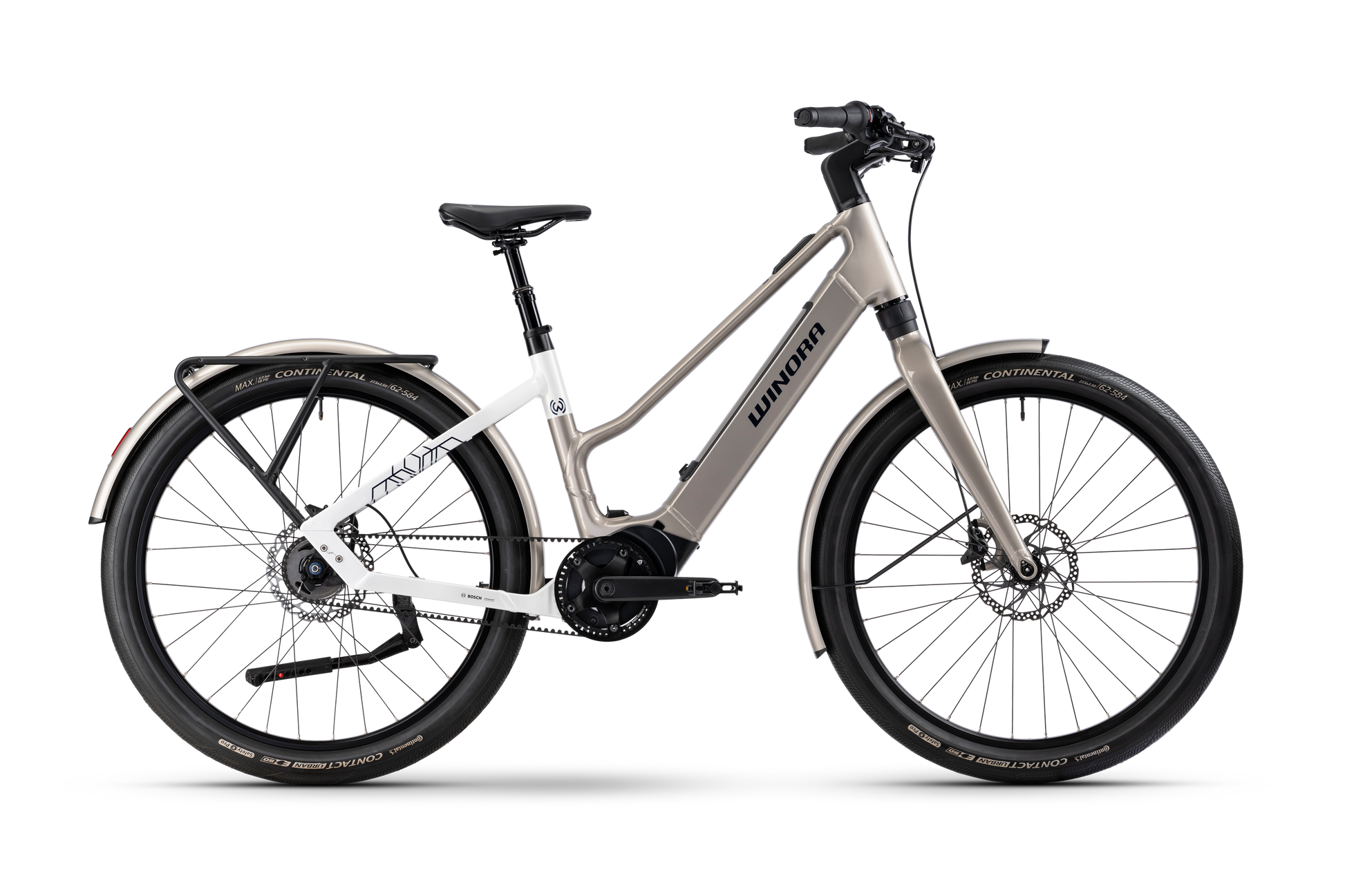

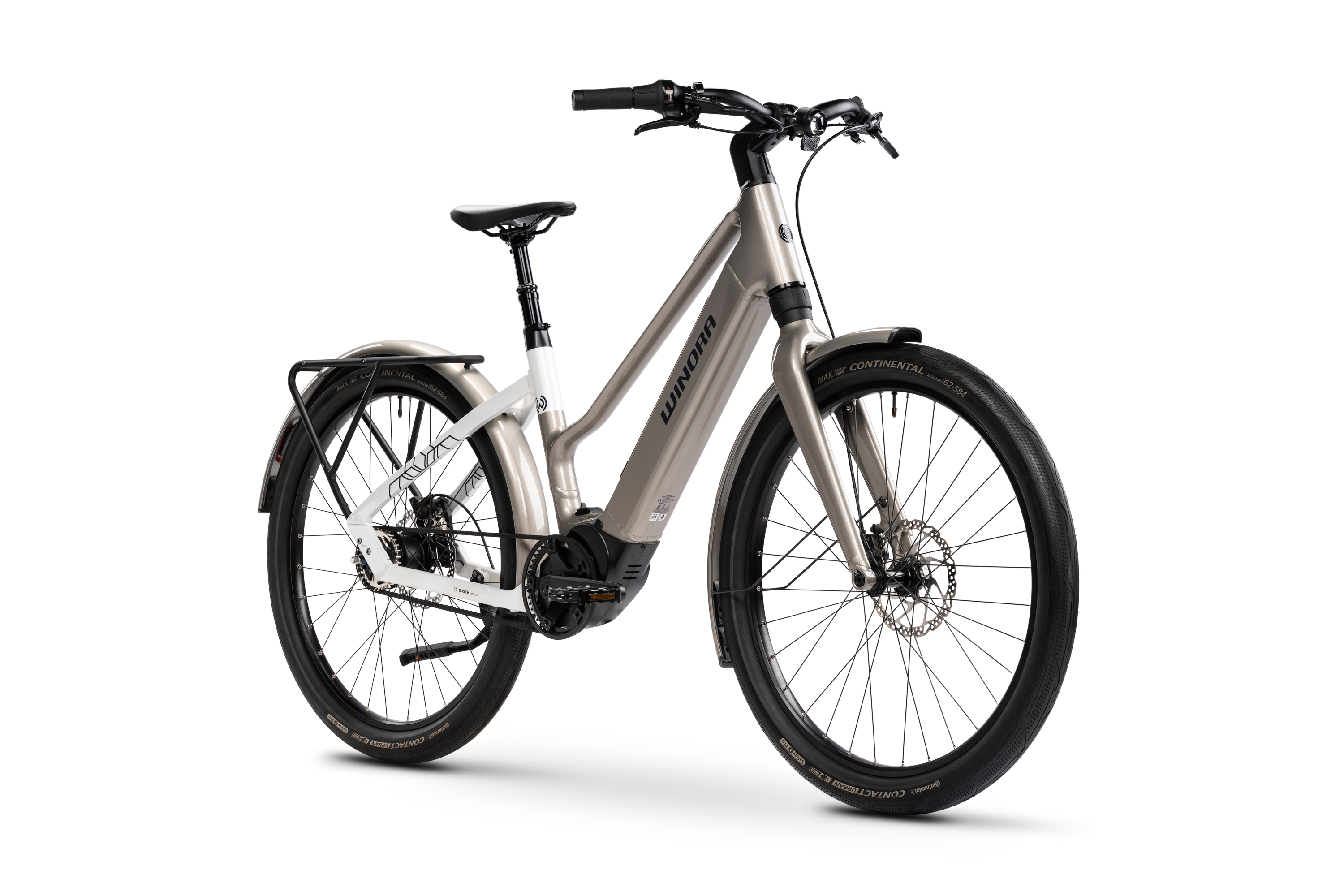

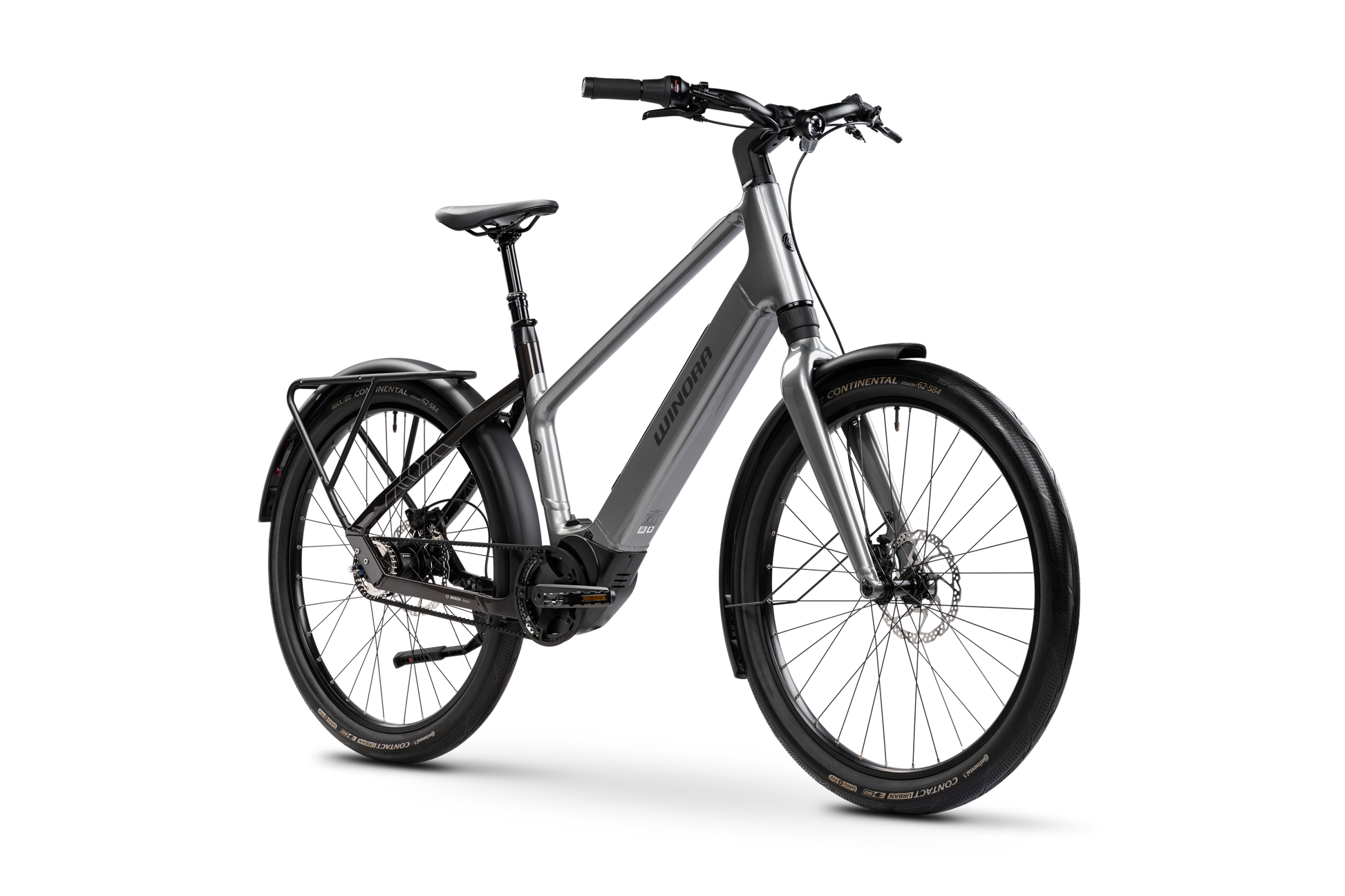

Two wheels, one lifestyle. The WINORA iRide Pure R5F takes city riding to the next level. This fully integrated e-light commuter combines sleek design with a sporty vibe and appeals to both everyday riders and occasional cyclists. Minimalist in appearance, powerful in performance and comfortable in every situation. The quiet, clean belt drive and reliable hub gears keep maintenance to a minimum. Meanwhile, a 30mm suspension fork and wide-volume tyres ensure a smooth, safe ride. The fully integrated Bosch Performance Line SX motor provides steady support with every pedal stroke. Practical: the 400Wh battery is easily removable. Whether in the high version with diamond frame or the mid model with easy access, the iRide Pure R5F gets you through the city quickly, cleanly and in style. A perfect match for your urban lifestyle.
Description
Two wheels, one lifestyle. The WINORA iRide Pure R5F takes city riding to the next level. This fully integrated e-light commuter combines sleek design with a sporty vibe and appeals to both everyday riders and occasional cyclists. Minimalist in appearance, powerful in performance and comfortable in every situation. The quiet, clean belt drive and reliable hub gears keep maintenance to a minimum. Meanwhile, a 30mm suspension fork and wide-volume tyres ensure a smooth, safe ride. The fully integrated Bosch Performance Line SX motor provides steady support with every pedal stroke. Practical: the 400Wh battery is easily removable. Whether in the high version with diamond frame or the mid model with easy access, the iRide Pure R5F gets you through the city quickly, cleanly and in style. A perfect match for your urban lifestyle.
Specifications
e-System
e-System
Battery: Bosch PowerTube 400Wh
Charger: Bosch Charger 2A 220-240V
Display: Bosch System Controller + Mini Remote
Motor: Bosch Performance Line SX, 250W, 55Nm, 25km/h
Frame
Frame
Frame: aluminium, disc brake Post Mount
Modular Rail System:
Maximum loadable weight: 130kg
Drive
Drive
Cassette:
Chain: Gates CarbonDrive
Crankset:
Derailleur Rear:
Gear: Shimano Nexus SG-C7000-5D, Internal Geared Hub, 5-speed
Number of gears: 5-speed
Shifter Right: Shimano Nexus SL-C7000-5, Revoshift Lever, Gripshift
Suspension
Suspension
Front Fork: Winora Feathershock, Travel: 30mm
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Deore BR-MT410, 2 pistons, resin pad, 180 mm
Rear Brake: Shimano Deore BR-MT410, 2 pistons, resin pad, 180 mm
Headlight: Litemove AE-110 Ri, 8-16V
Rear Light: Büchel Nano COB, 6-12V
Brake light:
Grips: Herrmans DD37, Clik Grips
Handlebar: JD TR25AL Dia. 31.8 mm, Rise: 25 mm 640 mm
Pedal: Marwi SP-880, non-slip
Saddle: Selle Italia X-Bow
Seatpost: JD YSP28, Dia. 31.6 mm, Travel: 150 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Schürmann YAK Disc 25-584 32H 6,5 mm Valve
Tyre: Continental Contact Urban, 62-584, reflex
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
